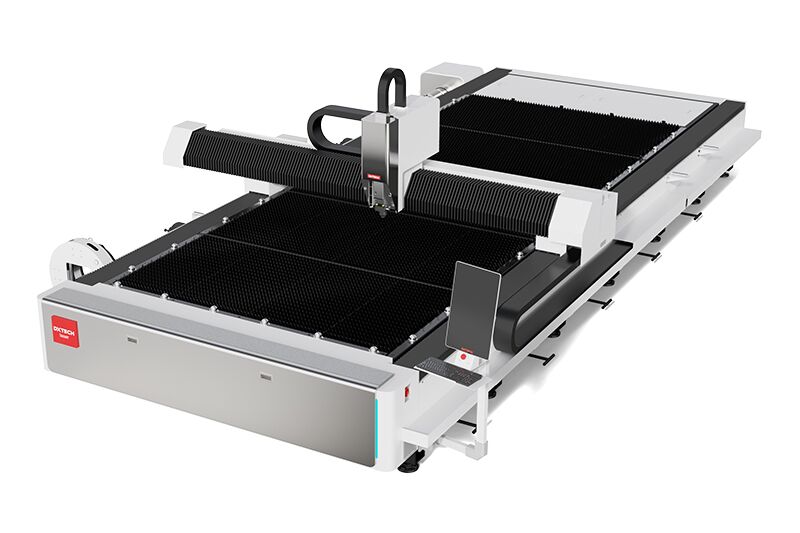

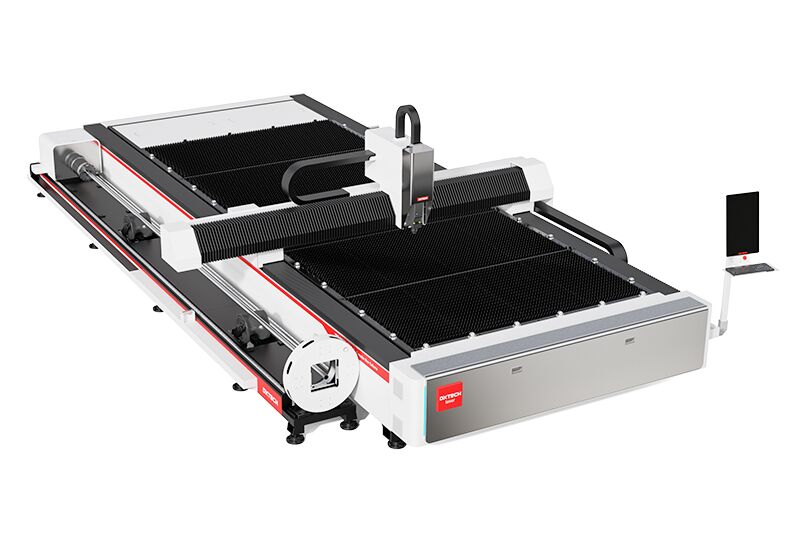

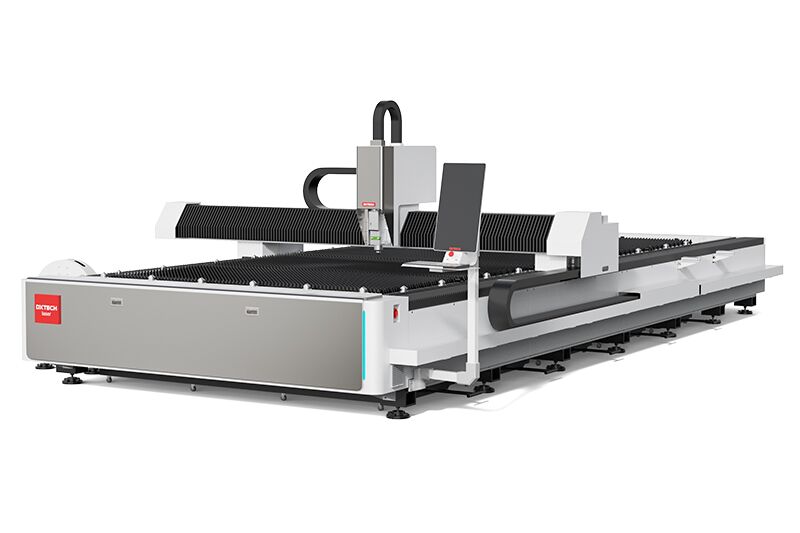

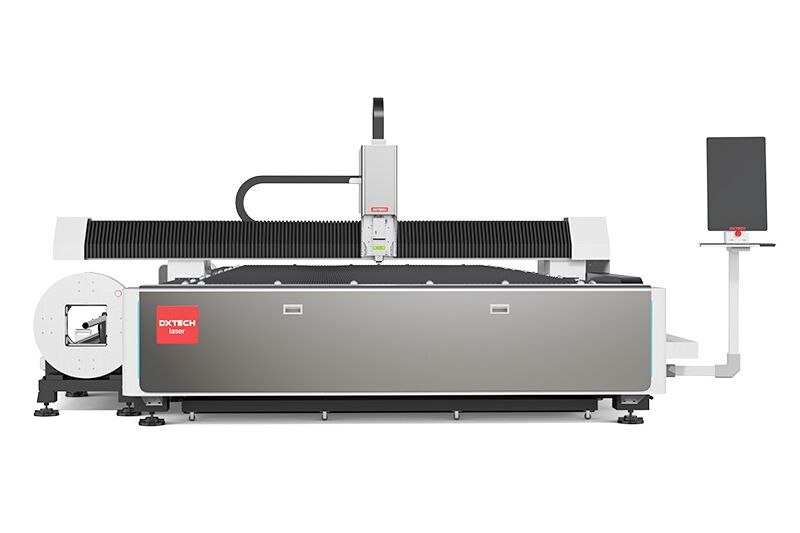

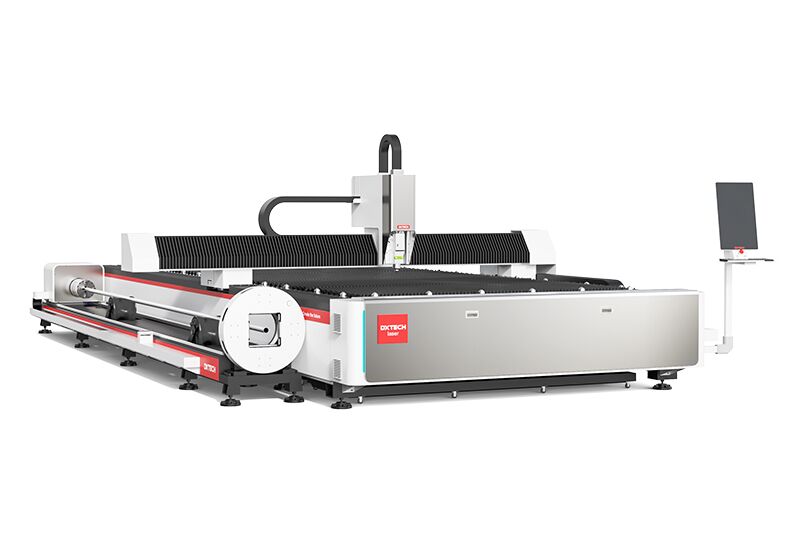

The Metal Sheet Pipe Tube Laser Cutting Machine is engineered for cutting circular, square, and metal pipe tubes, as well as sheets. It features a robust steel bed and a rack drive system, along with a professional pipe laser cutting CNC system. These components work together to ensure precise cutting accuracy and high efficiency in the CNC laser cutting process.
Video
Advantages
- Versatile cutting capabilities
The 2560FPT 3kw 6kw Square Tube Laser Cutting Machine for Metal Sheet and Tube is designed with dual cutting capabilities to handle a variety of round, square, profiled tubes, and sheet metal. - Optimization of the exhaust system
Utilizing German technology, the 2560FPT 3kw 6kw Square Tube Laser Cutting Machine for Metal Sheet and Tube features an optimized exhaust system. Its distinctive design provides consistent ventilation with larger front air outlets and smaller rear air outlets, enhancing the overall ventilation performance. - Automatic lubrication system
Equipped with an automatic lubrication system, the 2560FPT 3kw 6kw Square Tube Laser Cutting Machine for Metal Sheet and Tube covers up to 11 lubrication points, ensuring stability and preventing malfunctions with a low oil level alarm and replenishment feature. This system extends the machine’s lifespan by up to 20% compared to an 8-point lubrication setup. - Environmental design
Additionally, the machine is fitted with guide rails and racks that include an oil recycling feature, promoting environmental friendliness and offering excellent environmental benefits to customers.
Components of Metal Sheet And Tube Fiber Laser Cutter
Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
The Past Work
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
