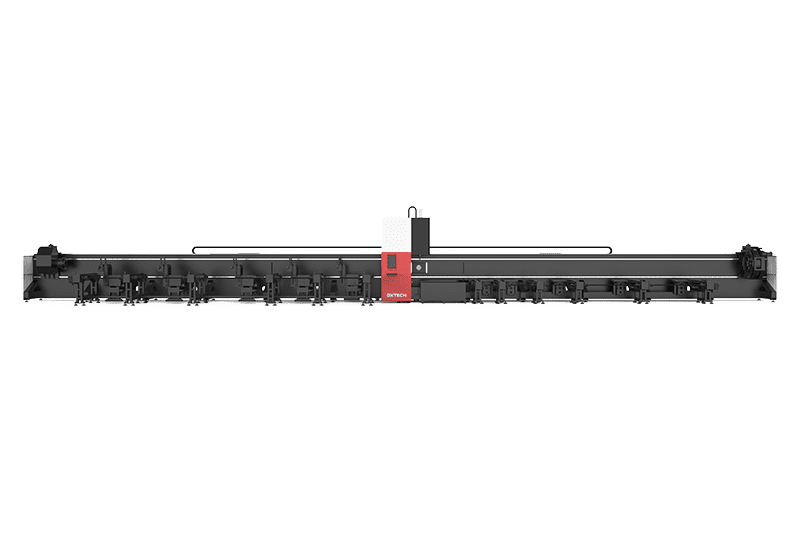

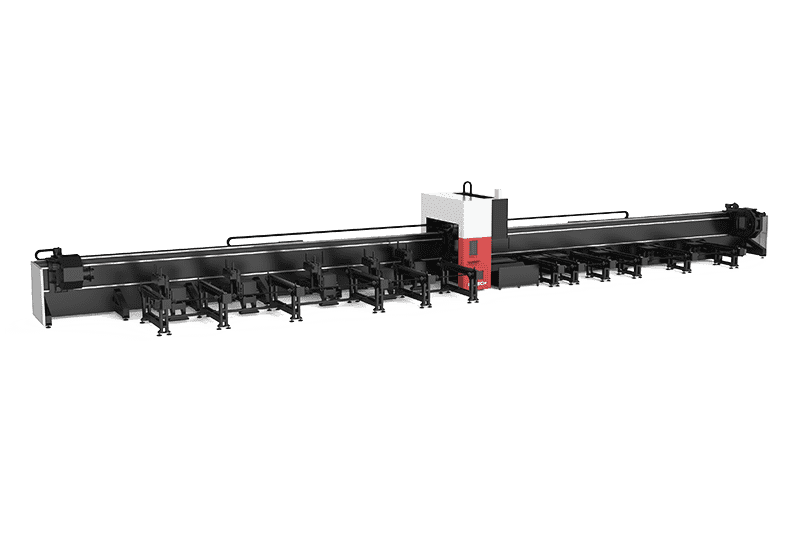

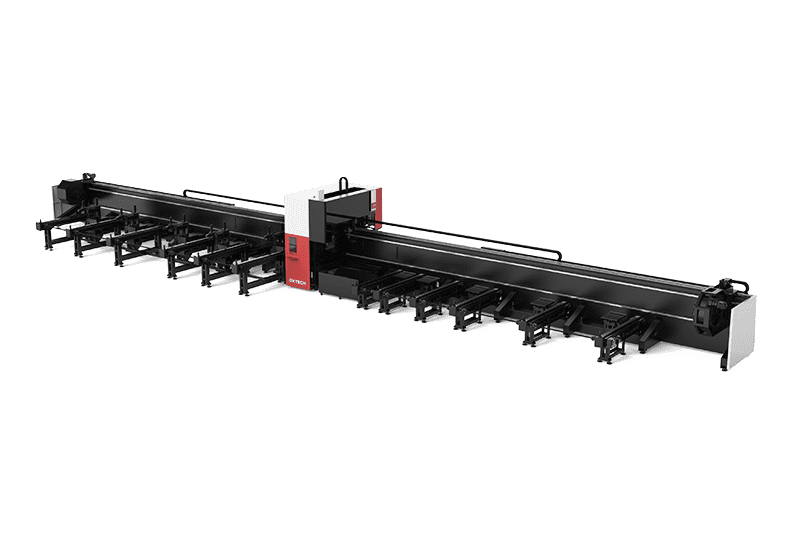

TMTP12520 High Power 20000W Bevel Tube Laser Cutting Machine with Auto Feeding System for Metal Pipes

TMTP12520 High Power 20000W Bevel Tube Laser Cutting Machine, with heavy duty full stroke pneumatic chuck design, no need to change jaws, eight cylinders clamping force doubled to ensure stable clamping. Its heavy duty machine tool type bed is modularly fabricated to ensure running accuracy and machine stability, high rigidity and vibration resistance. The loading and unloading system designed specifically for the heavy pipe industry simplifies operation and quickly adapts to large diameter metal pipes. The machine supports zero-tail cutting to save material cost, and optional bevel cutting function to realize ±45° bevel cutting of pipes and better fitting of parts splicing, which is widely used in the industries of steel structure construction, tower, bridge, etc., to realize efficient and accurate cutting of heavy pipes.

TMTP12520 High Power 20000W Bevel Tube Laser Cutting Machine can accurately cut all kinds of complex shapes on carbon steel, stainless steel, aluminum and other non-ferrous metal tubes. Can process pipe weight ≤ 2000kg, round pipe diameter range 120-520mm, pipe length up to 12000mm; support channel steel, angle steel, I-beam and other profiles cutting; widely used in fitness equipment, oil pipeline, automotive and other industries.

Video

Inquire now

Advantages

  1. Heavy-Duty Pneumatic Chuck: Full stroke, jaw-free design with eight cylinders for doubled clamping force, ensuring stability.
  2. Modular Bed Design: Heavy-duty machine tool bed ensures precision, stability, high rigidity, and vibration resistance.
  3. Specialized Loading/Unloading System: Simplifies operations and adapts to large-diameter metal pipes quickly.
  4. Heavy Pipe Support Mechanism: Provides comprehensive auxiliary support for enhanced processing accuracy.
  5. Zero-Tail Cutting: Reduces material waste.
  6. Optional Bevel Cutting: ±45° bevel cutting for improved part splicing.
  7. Intelligent FSCUT5000A System: Supports multiple models, widely used in steel construction, towers, bridges, and more for efficient, precise heavy pipe cutting.

DXTECH Service

We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.

Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.

We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.

Inquire now

Technical Parameters

Model TMTP12520
Laser power 20000W MAX
Cutting dimensions Round: Φ120-Φ520mm
Square: □120 – □520mm
Max. tube length 12m
Max. tube weight 1600kg
Chucks 3 pneumatic chucks
Positioning accuracy ±0.05mm
Repositioning accuracy ±0.03mm
Machine bed Tube welded bed

Components of Metal Tube Fiber Laser Cutter

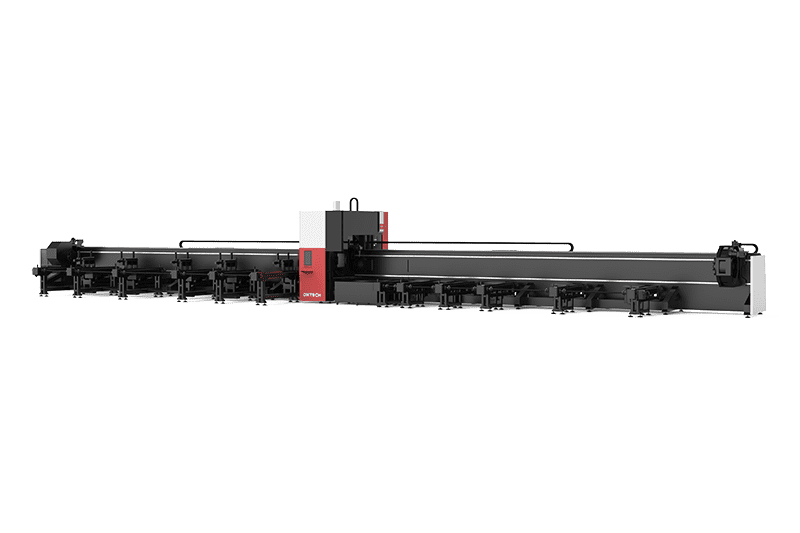

bevel laser tube cutting machine fiber laser cutting machine for metal pipe

Bevel cutting, high efficiency

Optional beveling function can realize ±45° bevel cutting of pipes and better fitting of parts.

bevel laser tube cutting machine fiber laser cutting machine for metal pipe

 Heavy Tube Cutting Controller FSCUT5000A

Supports multiple models: 3-chuck full-stroke, 3-chuck pull-type, and 4-chuck pipe cutters. Capable of zero-tail and bevel cutting for I-beams, channel steel, angle steel, and other pipes. Stably cuts heavy pipes, widely used in steel buildings, pylons, and bridges.

bevel laser tube cutting machine fiber laser cutting machine for metal pipe

 Heavy Tube Cutting Controller FSCUT5000A

Range of processable pipe sizes:
Round pipe: Φ120-Φ520mm;
Square pipe: □120 – □520mm
Shaped pipe: 120 ≤ side length ≤ 520mm

Inquire now

Feedback from Customers All Over The World

Argentina customer

This metal laser cutting machine is very safe and eye-protecting, with fast cutting speed, high Cutting precision,long service life, and high cost performance. Using it increases the processing efficiency of our workshop by 30%, saving US manpower and time. I will buy again.

Turkish customer

DXTECH is the most experienced fiber laser cutting machine company in China, the after-sales service is perfect, helpful and friendly, they will give you a choice that suits your budget. I will work with them again.

Mongolian Customer

I’m otgonbayr, from Mongolia.We have been using DXTECH laser cutting machine for two years.The machine has very good quality and the service is also perfect.Today we visit the production factory, which is very large,professional and powerful. The staff are also very professional and patiently answer our questions. DXTECH is definitely a good choice.

Italian customer

We fully understand the strength of DXTEXH, they care about the interests of customers, and patiently answer our questions. They will provide online and offline guidance until you resolve the issue. Our cooperation this time is very pleasant, and the quality of the cutting machine is also very good. After using it, the efficiency of our factory has increased by 40%, we will cooperate again!

Inquire now

The Past Work

We provide free proofing service. Welcome to consult.

Inquire now

FAQ

Common processing materials for laser cutting machines?

stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.

Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.

Protective lenses, nozzles, ceramic rings.

The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
