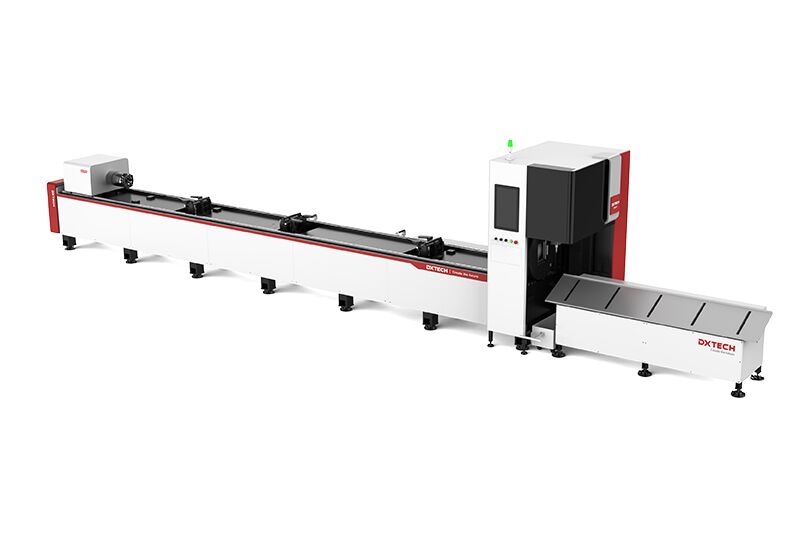

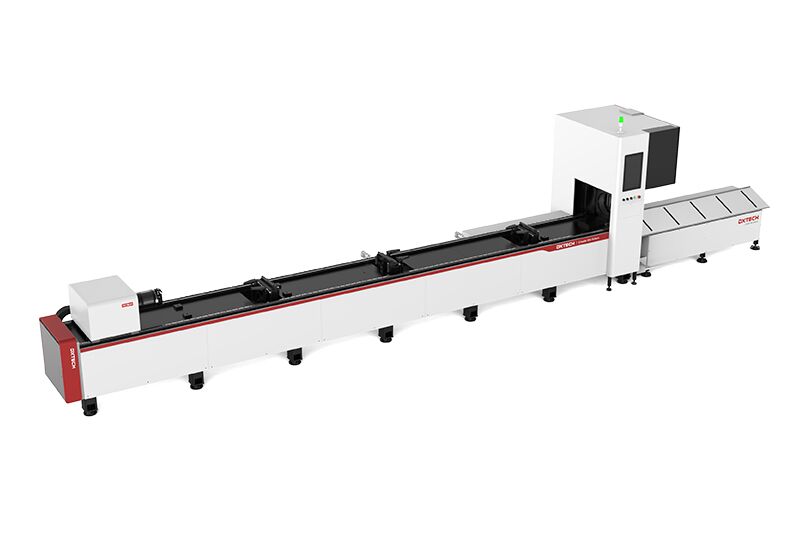

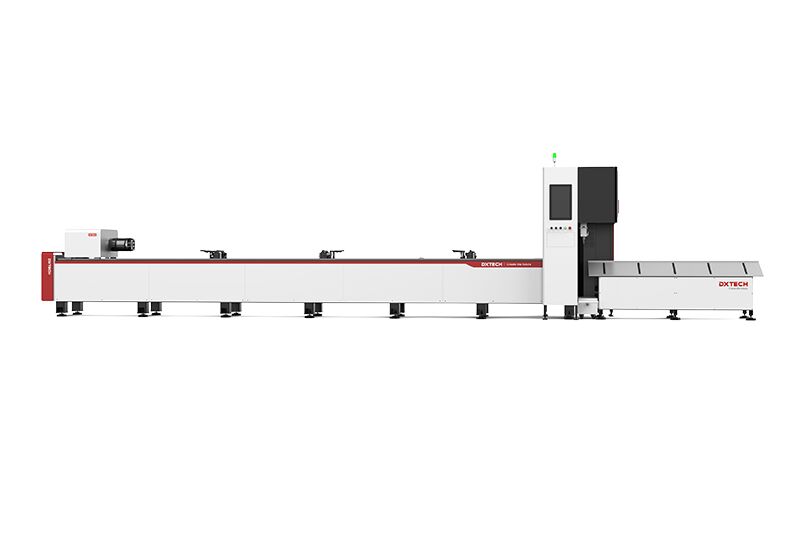

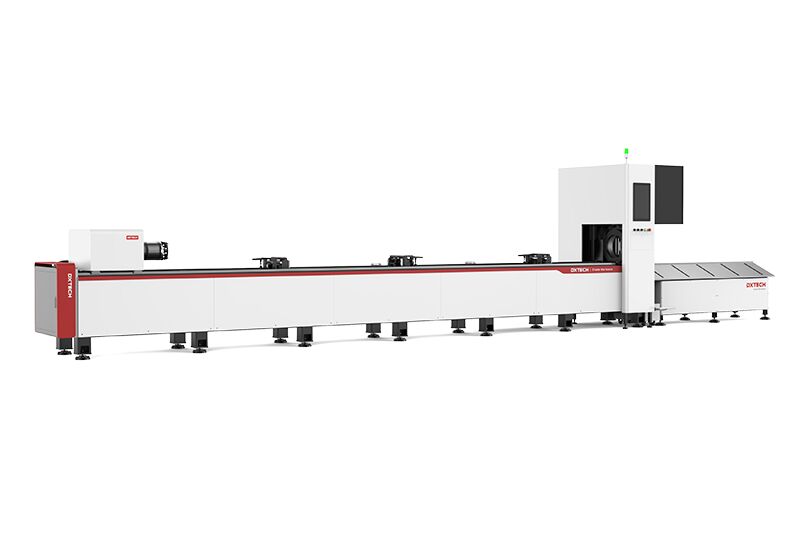

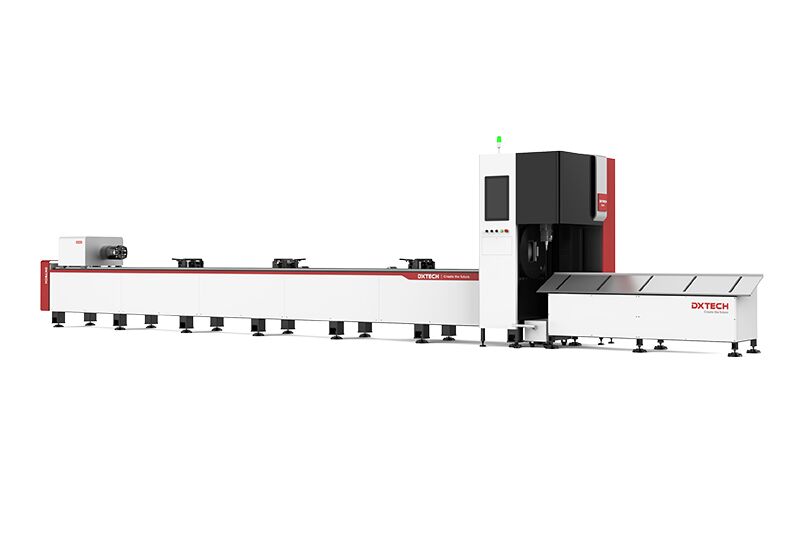

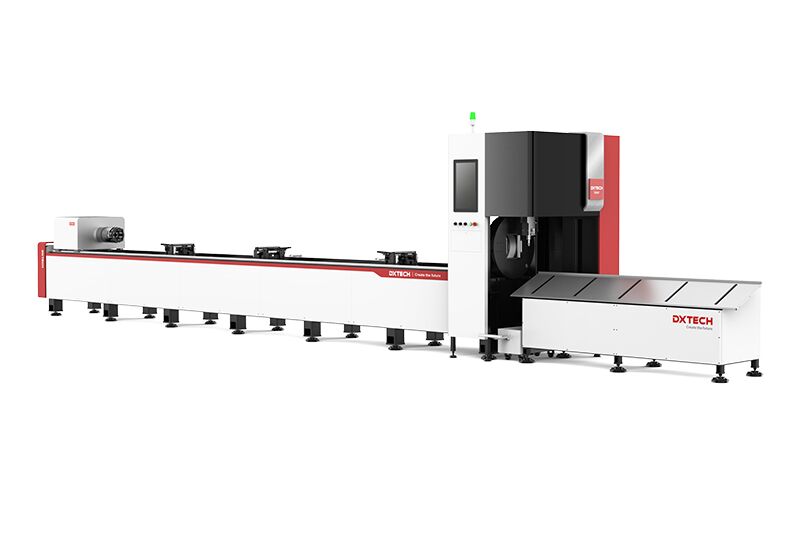

This cnc laser tube cutting machine is ideal for cutting round, square, rectangular and other standard pipes. It can process most of the shaped tubes and open type profiles, such as hexagonal tubes, elliptic tubes, channels, angles, H-beams . I-beam, etc. It is equipped with a synchronous loading system to avoid pipe sagging and deformation, improve cutting precision, and discharging is more accurate and reliable.
Video
Advantages
- The machine’s superior metal pipe clamping system provides stable delivery of metal pipes, ensuring the creation of high-quality, high-precision products. It also offers the option of adding a slag removal device for the pipe’s inner wall.
- Using a 3000w – 6000w Raycus/Max/IPG fiber laser source, this cnc laser tube cutter processes metal with smooth, flat, burr-free edges.
- Built with an aerospace aluminum gantry, this cnc laser tube cutting machine for sale in USA ensures high processing precision, robustness, and rapid operational speed.
- It can perform various 3D cutting techniques on metal pipes, including hole cutting, arc cutting, carving, and slotting, and can manage a variety of special-shaped metal tubes such as rectangular, oval, square, round, triangular, D-shaped, and hexagonal tubes.
- Equipped with a synchronous loading system, this CNC laser tube cutting machine for sale in USA prevents pipe sagging and deformation, improving cutting accuracy and reliability during discharging.
Components of metal tube laser cutting machine
Intelligent focusing laser head
- Autofocus: Autofocus range of -12 to +10 mm, focus accuracy of 0.05 mm, can reduce manual intervention.
- Multi-protection lenses: Adding collimation protection lenses to effectively protect the collimation lenses.
FSCUT3000S cutting software
- Supports a wide range of material cutting and high-precision cutting technology, adapting to the processing needs of a wide range of tubes and profiles.
- Capable of effective deviation compensation, reducing the precision requirements for raw materials and minimizing the generation of scrap.
- Supports automatic loading and cyclic processing, which greatly saves loading time and improves production efficiency.
Application
This CNC laser tube cutting machine for Sale in USA is widely used to cut a variety of metal tubes and pipes for complex metal parts, prototypes and custom parts with cost-effective and economical laser cutting capabilities. Widely used for cutting a variety of tubes and pipes, such as stainless steel, carbon steel, galvanized, and more.
The Past Work
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
