CNC Hydraulic Press Brake Applications
The400KN Torsion Shaft Synchronous Sheet Metal Brake plays a key role in the production of electrical equipment, including the manufacturing of control cabinets, switchgear, and distribution boxes. It excels at bending thin to medium-thick metal sheets like galvanized steel and aluminum alloy, ensuring precise right-angle and multi-angle folds that meet the strict structural requirements of electrical enclosures.
400KN Torsion Shaft Synchronous Sheet Metal Brake Videos
▍400KN Torsion Shaft Synchronous Sheet Metal Brake Advantages
1. Hydraulic System Safety & Stability
Overload overflow protection enables steady operation under rated loads, with leak-free performance ensuring consistent processing stability.
2. Robust, Precision-Engineered Frame
Welded machine frame undergoes full machining; premium imported cylinder seals deliver exceptional strength, rigidity, and precision.
3. Mechanical Synchronization
Forced mechanical synchronization via shafts ensures parallel movement of the slide block’s two sides.
4. Enhanced Precision Features

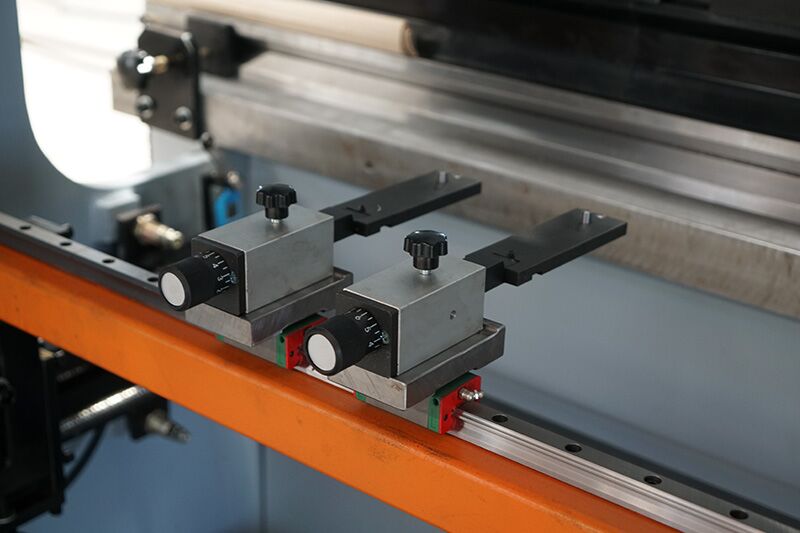

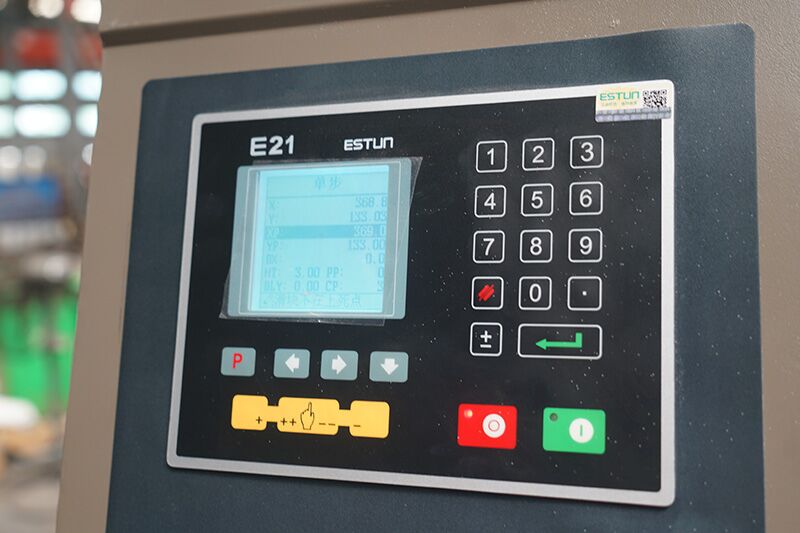

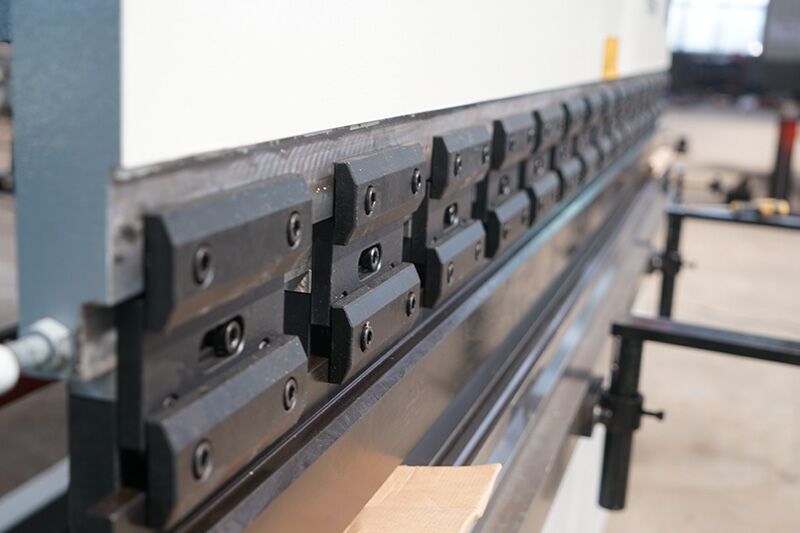

Includes upper die deflection compensation; optional quick-clamping for upper dies. X-axis rear stopper uses servo-driven ball screws and linear guides, while Y-axis slide travel is servo-controlled for high positioning accuracy.
400KN Torsion Shaft Synchronous Sheet Metal Brake Parameters
| MODEL | 40T/2500 | 63T/3200 | 125T/2500 | 125T/3200 |
| Nominal pressure | 400KN | 630KN | 1250KN | 1250KN |
| Working table length | 2500mm | 3200mm | 2500mm | 3200mm |
| throat depth | 260mm | 260mm | 400mm | 400mm |
| Slider stroke | 120mm | 120mm | 160mm | 160mm |
| Maximum opening height between work surface and slider | 320mm | 320mm | 460mm | 500mm |
| Maximum working pressure of hydraulic system | 25 | 25 | 25 | 25 |
| Motor power | 5.5kW | 5.5kW | 7.5kW | 7.5kW |
Laser Machine Upgrade
DXTECH is committed to providing one-stop processing solutions for your metal processing factory. We not only provide a complete production line of fiber laser cutting machine + CNC press brake + handheld laser welding machine, but also provide a series of auxiliary equipment, such as Hydraulic shearing machine, Channel letter bender, Metal roll forming machine and Laser rust remover, etc.
- One-stop processing
- More efficient production
Choosing DXTECH means you no longer have to worry about finding manufacturers of various machines and equipment. Our comprehensive services will ensure that your production process is efficient and smooth.
DXTECH focuses on providing customized equipment upgrade solutions for your metal processing plant. If your factory is still using traditional equipment such as plasma cutting machines, hydraulic shearing machines or water jet cutting machines that have low processing efficiency and unsatisfactory cutting quality, then DXTECH will be your ideal choice.
- More efficient
- More precise
- More energy-saving
We can help you upgrade these equipment to more efficient, more precise, and more energy-saving fiber laser cutting machines, thereby greatly improving processing efficiency and cutting quality, and bringing a qualitative leap to your factory.
Business in person. Currently, we have a workshop covering an area of 45,000㎡ in Jinan, and we are constructing a new factory with an area of 30,000㎡ in Taian, Shandong Province.
From the moment you receive your laser machine, our sales team and factory technicians will handle all your after-sales issues together.
We offer free online training and technical support. Additionally, we can visit your location to assist with installation, debugging, training, and usage matters.
DXTECH Quality Assurance
2 Years free warranty
- This warranty only covers normal use of the laser machine
- This warranty does not cover any third party software or virus related issues not purchased from DXTECH
- We continue to provide lifetime free technical support to original customers. However, the warranty is not transferable.
Complete After-sales Service
- Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
- We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
