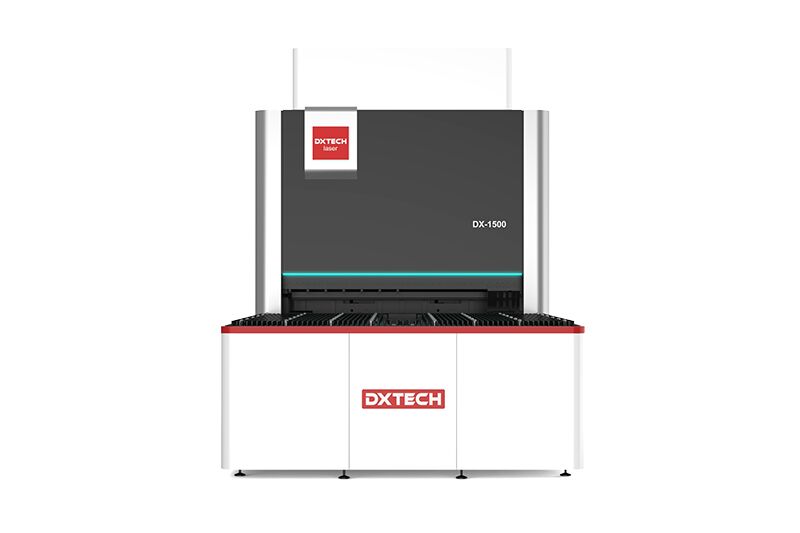

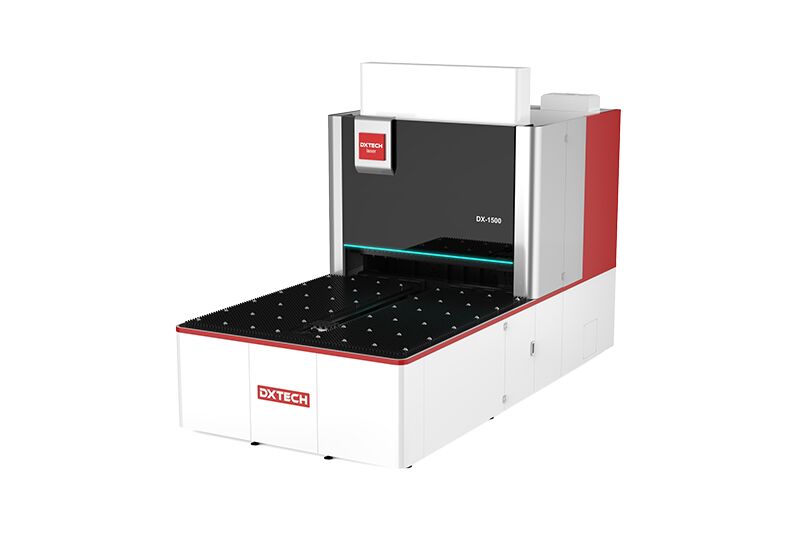

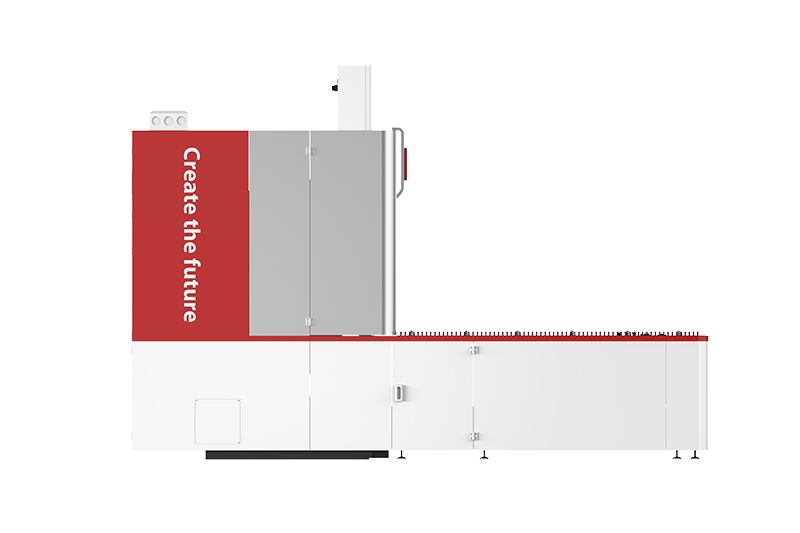

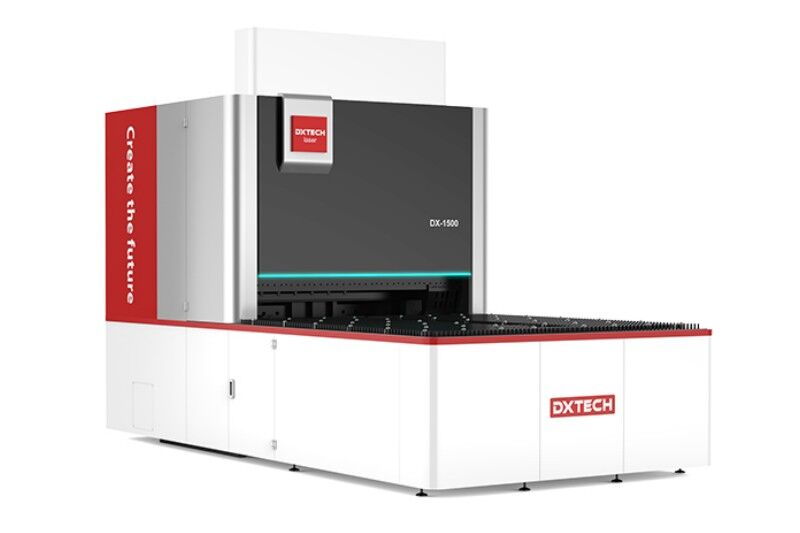

1.The main features of suction-cup automatic panel bender
1. The working speed is three times that of ordinary CNC bending machines, saving production and labor costs.
2. It has good wear resistance and long service life. The whole machine can be bent more than 1 million times without frequent replacement of upper and lower bending tools.
3. It has automatic bending function and can bend right angles, acute angles, obtuse angles, arcs, edge presses, hollow squares, closed shapes and other complex shapes. No hand bending required. Up and down and horizontal bending can also be achieved.
4. The suction cup loading system uses vacuum suction cups to absorb the plates and rotate them within 360°. Its two guide rulers enable precise positioning and automatic adjustment of the bending angle.
2.Main technical parameters of suction-cup automatic panel bender
| Model | DX-C1500 | |
| 1 | Bending Length | 1500mm |
| 2 | Plate Length | 1600mm |
| 3 | Plate Width | 1250mm |
| 4 | Bending Height | 170mm（Can be customized 300mm） |
| 5 | Min Forming Size(Four sides) | 310*230mm |
| 6 | Min Forming | 230mm |
| 7 | Min Radius | 1.2mm |
| 8 | Bending Speed | 0.2S/bend |
| 9 | Opening Height | 170mm |
| 10 | Angle | 0-360 ° |
| 11 | Material Thickness | Aluminum plate: 2.0mm Cold plate: 1.5mm Stainless steel: 1.0mm |
| 12 | Numerical System | Star300-LGx |
| 13 | Axis | Standard configuration 10 |
| 14 | Machine Dimension | Length 3700mm、Width 1800mm、Height 2500mm |
| 15 | Machine Weight | 10000kg |
3.Application industries and samples of suction-cup automatic panel bender
The suction-cup automatic panel bender have been widely used in aerospace, automotive electronics, plate processing, distribution boxes, steel structures, elevators, home decoration, cabinets and kitchenware, etc.
4.Working environment and conditions of use
This machine is suitable for any material preparation workshop, and its conditions are:
1) Power supply voltage: three-phase 380V AC-+10%
Frequency: 50HZ±1HZ
2) Operating environment temperature -20—+50℃
Humidity 20-85% (no condensation, no condensation)
Altitude＜1000m
3) Protection level electrical control cabinet IP40
Control box IP45
This machine has no “three wastes” discharged, and the noise limit meets the requirements of JB9969-1999.
5.Installation, test, acceptance and after service
5.1.Seller should inform the buyer to inspect the machine in our factory after the machine is finished.
5.2.Seller should supply corresponding files and foundation drawings in 7 days after confirming the order.
5.3.If buyer needs the installation, test by seller, then the charges in China will be taken by seller. And charges out of China, such as tickets, and hotels, should be taken by the buyer.
