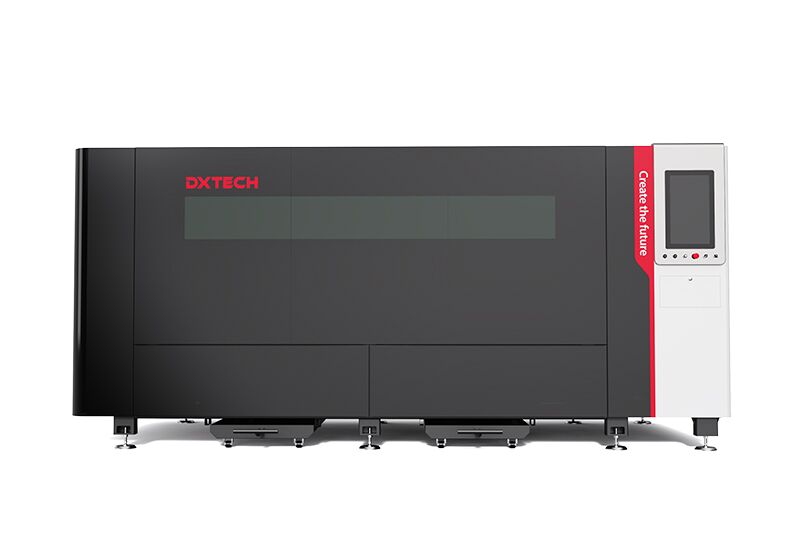

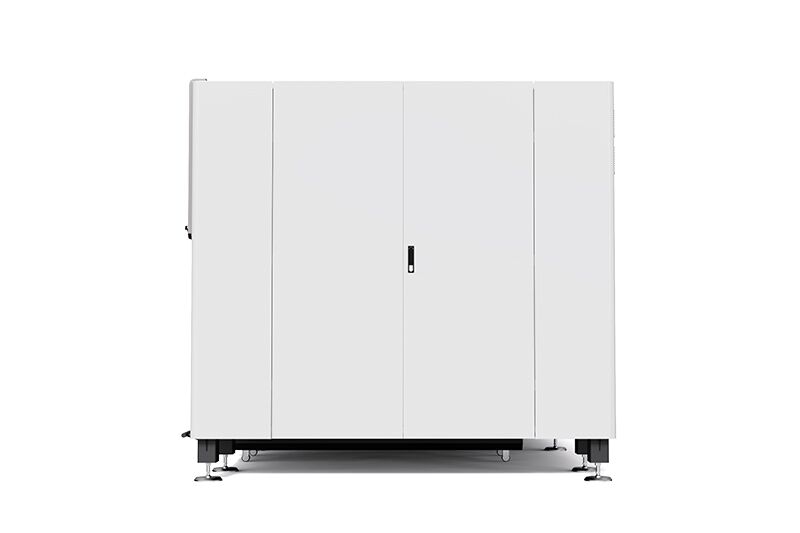

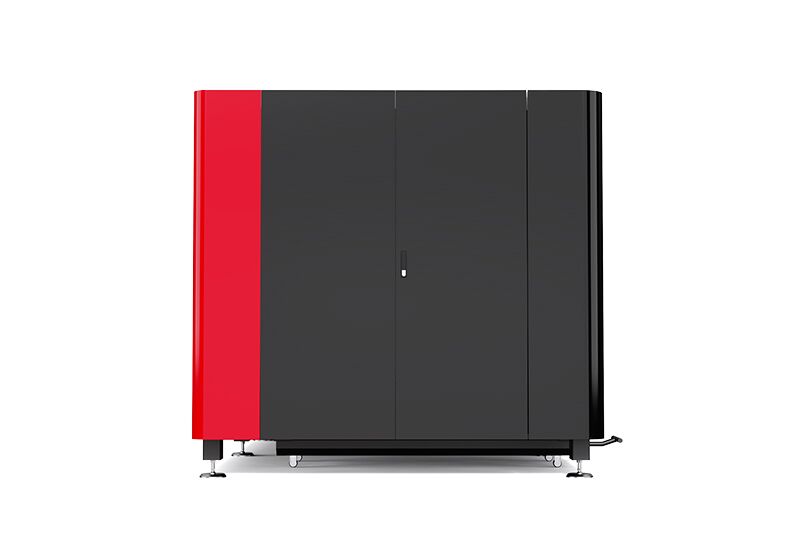

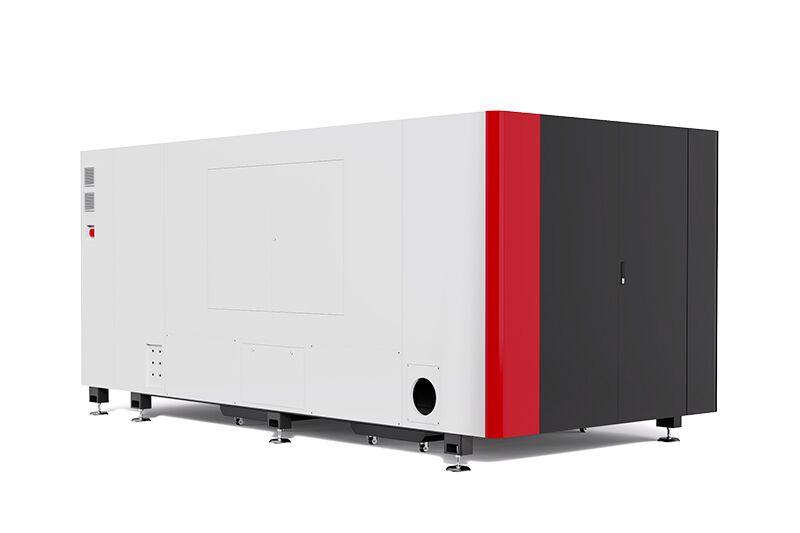

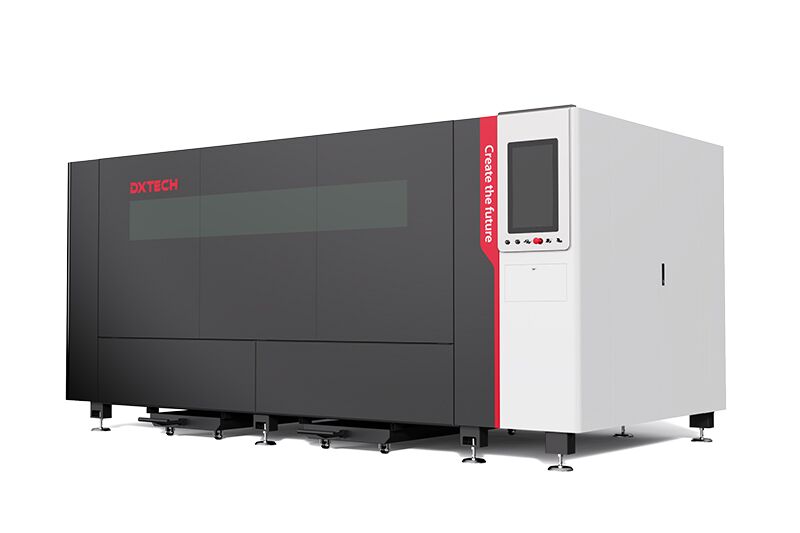

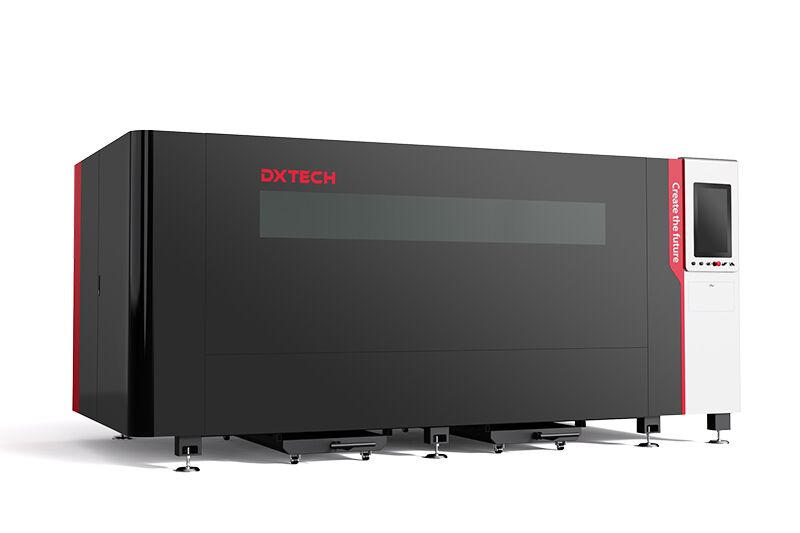

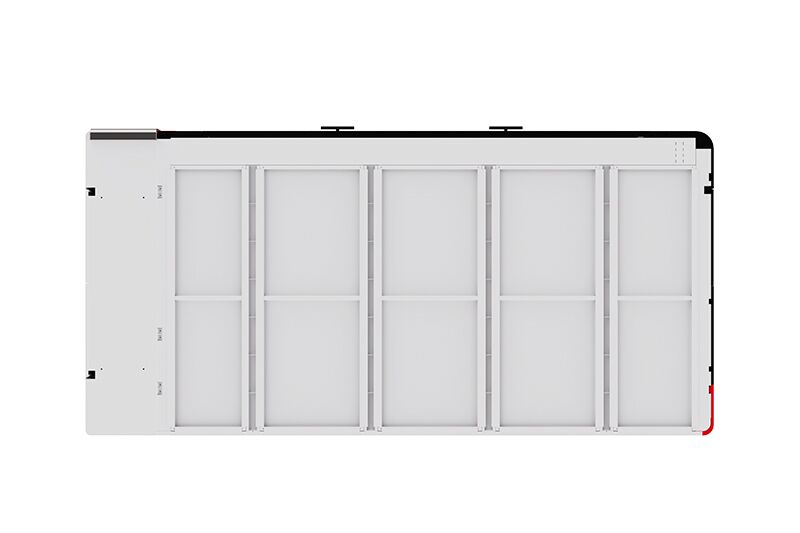

This 3000w Q1530 high precision fiber laser cutting machine for sale in UK is best for metal processing projects, such as metal tools making, small metal parts making, metal ornament designing and so on. With the compact mechanical structure, it has a small footprint and is very suitable for home use. The machine adopts high-end laser source, laser head, motor, transmission device and intelligent control system and is very easy to operate.
Video
Advantages
-
Exceptional Stability and Precision Crafted from carbon steel, this high precision fiber laser cutting machine boasts excellent toughness and ductility, alongside superior welding and heat treatment performance. The inclusion of stress annealing and vibration aging processes during the welding and machining phases enhances durability, ensuring no deformation for 20 years.
-
Advanced Cast Aluminum Beam Undergoing artificial aging and solution treatment, the cast aluminum beam achieves outstanding integrity, rigidity, and surface quality. Its lightweight nature and robust rigidity support high-speed movements and precision cutting of intricate graphics.
-
Professional Marble Countertops Utilizing marble countertops offers high precision, a low linear expansion coefficient, and resistance to rust. These countertops are easy to maintain, acid and alkali-resistant, and have high hardness and wear resistance, enhancing stability and accuracy during processing.
-
Completely Enclosed Cover The laser protection glass cover meets European CE standards, ensuring safety and pollution control. The smoke generated during laser cutting is filtered internally, maintaining a safe and clean working environment.
DXTECH Service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Technical Parameters
| Model | DXTECH – Q1530 | DXTECH – Q1313 |
| Working area | 1515x3030mm | 1305*1305mm |
| Worktable bearing capacity | 950kg | 330 KG |
| Positioning Accuracy | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.2G | 1.2G |
| Laser power | 1-3kw | 1-3kw |
| Laser | Raycus, MAX | Raycus, MAX |
| Max. linkage speed | 140m/min | 140m/min |
Components of High Precision Fiber Laser Cutting Machine
Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
We provide free proofing service. Welcome to consult.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
