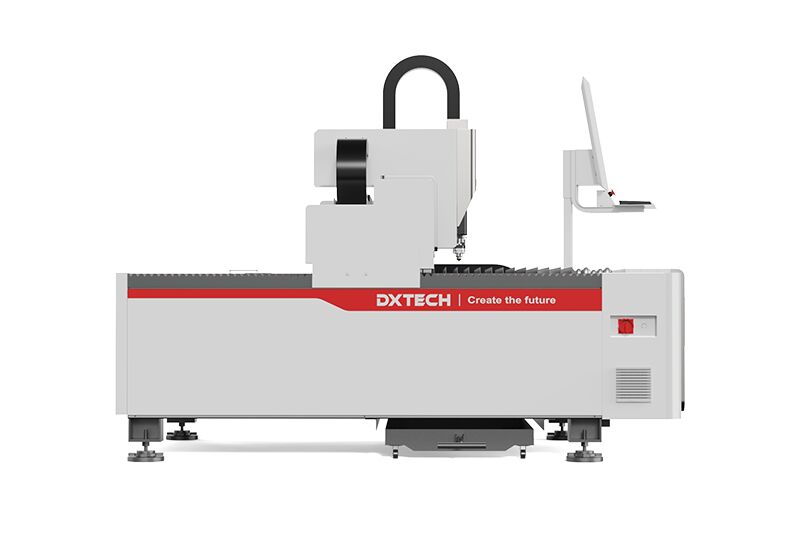

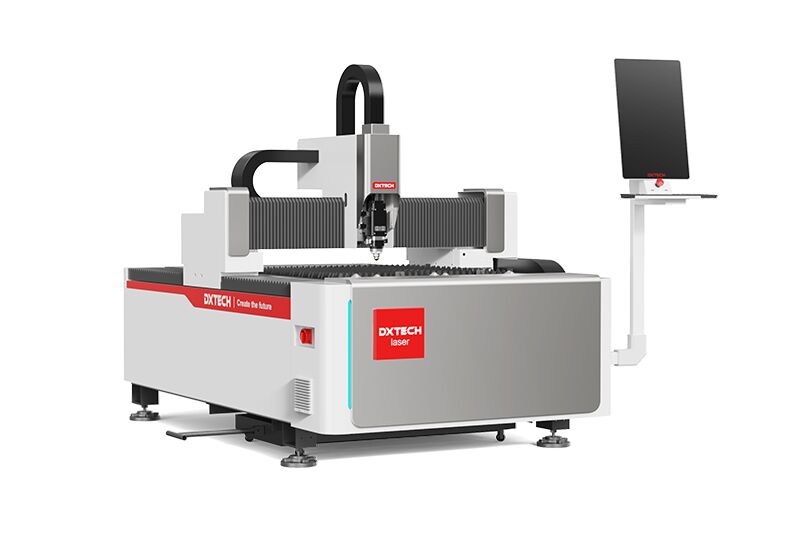

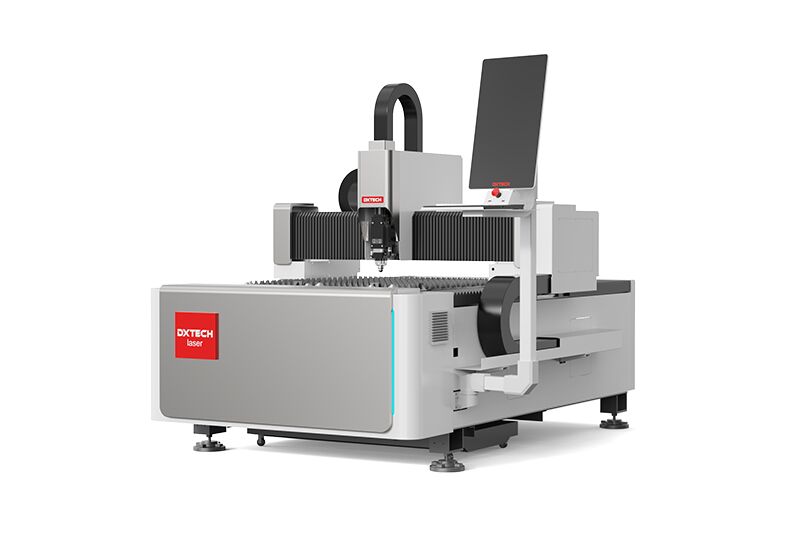

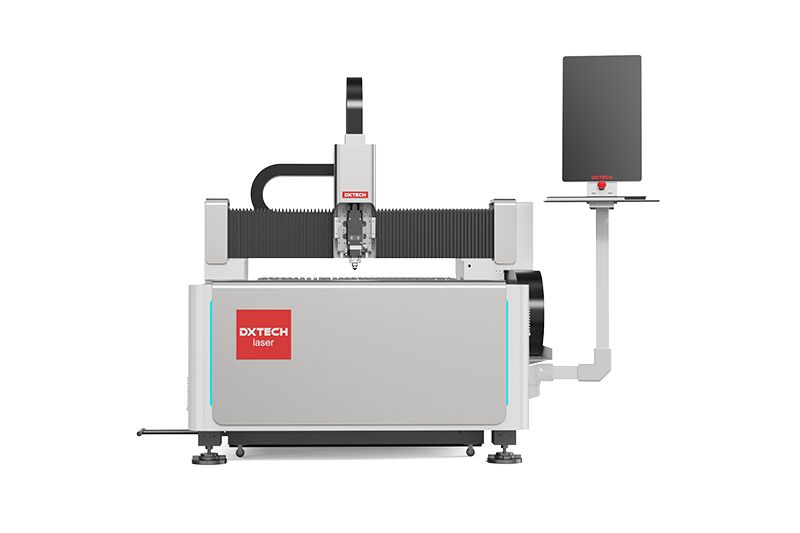

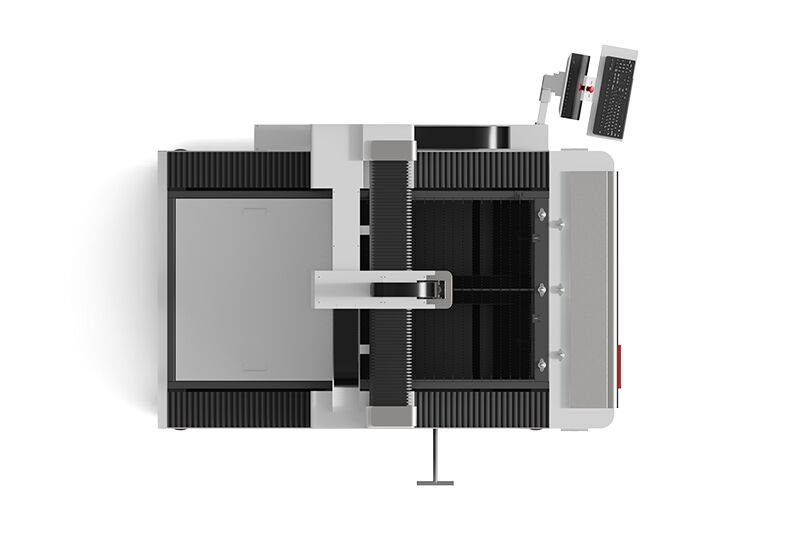

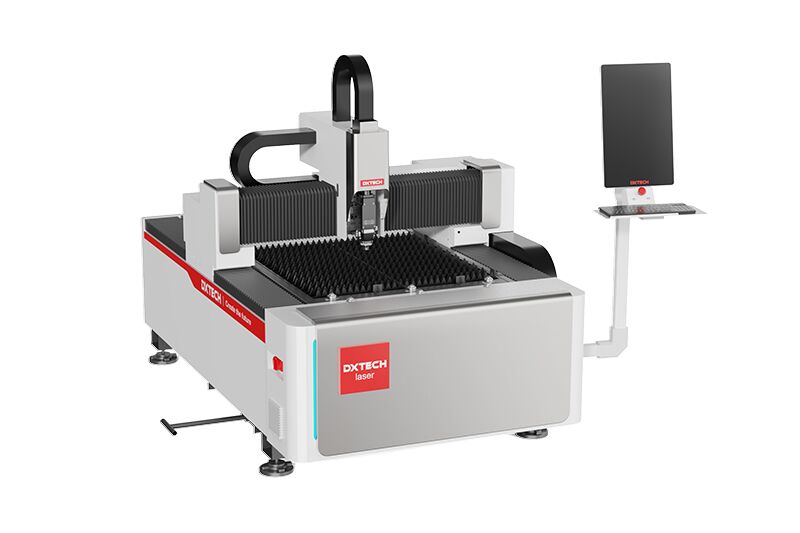

9090MQ 1000w 1500w Small Fiber Metal Sheet Laser Cutting Machine for Steel Laser Cutting is mainly used for rapid processing of metal materials, such as stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, manganese steel, all kinds of alloy plate and rare metals. It is widely used in automotive, aerospace, metal processing and machinery manufacturing industries.
Advantages
1. Stable and Precise Bed
The machine features a highly rigid bed. It minimizes thermal deformation and enhances vibration pattern accuracy. This ensures stable operation with a running accuracy within 0.03mm.
2. Intelligent Laser Head
Equipped with an auto – focus laser head, it also comes with automatic edge tracking and obstacle avoidance functions. These features boost cutting accuracy by 30%.
3. Space – and Cost – Saving Design
The open, small – size model cuts down transportation costs and saves floor space.
4. User – friendly Cantilever Design
With its cantilever design, the machine offers easy and convenient operation.
Technical Parameters
| Model | DXTECH -9090MQ |
| Working area | 905*905mm |
| Worktable bearing capacity | 140kg KG |
| Positioning Accuracy | ±0.03mm |
| Repositioning accuracy | ±0.02mm |
| Max. acceleration | 1.2G |
| Laser power | 1-3kw |
| Laser | Raycus, MAX |
| Max. linkage speed | 140m/min |
DXTECH Service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Components of High Precision Fiber Laser Cutting Machine
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
Laser Machine Upgrade
DXTECH is committed to providing one-stop processing solutions for your metal processing factory. We not only provide a complete production line of fiber laser cutting machine + CNC press brake + handheld laser welding machine, but also provide a series of auxiliary equipment, such as Hydraulic shearing machine, Channel letter bender, Metal roll forming machine and Laser rust remover, etc.
- One-stop processing
- More efficient production
Choosing DXTECH means you no longer have to worry about finding manufacturers of various machines and equipment. Our comprehensive services will ensure that your production process is efficient and smooth.
DXTECH focuses on providing customized equipment upgrade solutions for your metal processing plant. If your factory is still using traditional equipment such as plasma cutting machines, hydraulic shearing machines or water jet cutting machines that have low processing efficiency and unsatisfactory cutting quality, then DXTECH will be your ideal choice.
- More efficient
- More precise
- More energy-saving
We can help you upgrade these equipment to more efficient, more precise, and more energy-saving fiber laser cutting machines, thereby greatly improving processing efficiency and cutting quality, and bringing a qualitative leap to your factory.
