Advantages
1. 11-point automatic lubrication extends equipment life
The automatic lubrication system spans across 11 key points. It not only guarantees operational stability but also has a low – oil alarm and replenishment feature. This setup can prolong the machine’s lifespan by a remarkable 20%, reducing maintenance hassles.
2. Dramatic reduction in piercing time with auto-focus cutting head
The cutting head is outfitted with a full – fledged automatic focusing mechanism. Compared to traditional cutting heads, it can cut down the piercing time significantly, often by up to 80%. This makes it perfect for high – speed cutting of thick plates, enhancing productivity.
3. Highly rigid bed can carry 1000KG load.
The machine bed is crafted from a stress – annealed, high – rigidity welded frame. This construction ensures maximum strength and toughness. It can endure loads of up to 1000KG, remaining stable in diverse applications, from small – scale projects to large – scale industrial jobs.
4. Integrated System: Precision & Speed in Cutting
The professional nesting software and laser cutting system are highly integrated. With intelligent graphic layout, auto edge – seeking cutting, and sharp corner smoothing, it can achieve high – speed blast perforation and array graphic scanning/cutting.
Video
Applications

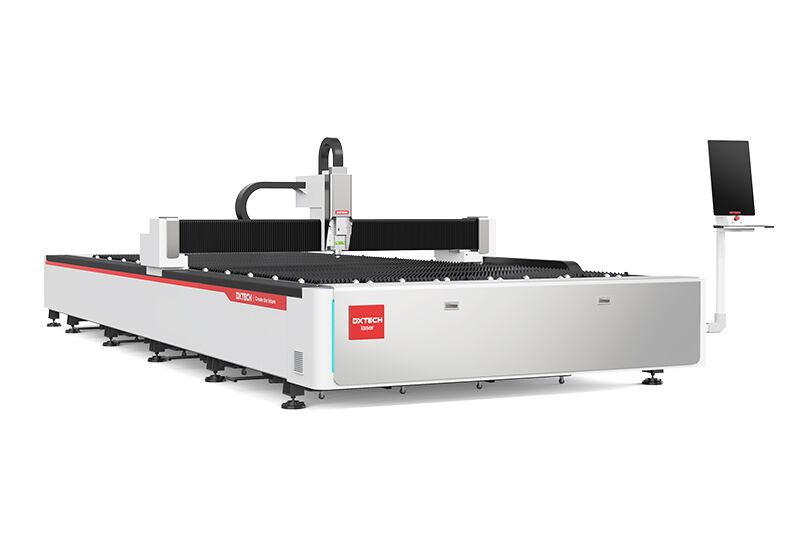

The 2560 3000w 6000w CNC Fiber Laser Metal Plate Cutting Machine is highly versatile. It can cut diverse metal plates like different stainless steels, carbon steels, alloy steels, brass, and nickel – based alloys. It’s extensively used in construction for fabricating structural and decorative elements, in metal sheet processing for mass – production, in automotive for vehicle parts, in aerospace for aircraft components, in equipment manufacturing for machinery parts, in advertising for signs, in crafts for artworks, and in electronics for circuit board enclosures and heat sinks.
Technical Parameters
| Model | DXTECH – 2560FL |
| Worktable size | 2530x6080mm |
| Table bearing capacity | 3050KG |
| Max. acceleration | 1.5G |
| Max. linkage speed | 140m/min |
| Positioning accuracy | 0.03mm |
| Repositioning accuracy | 0.02mm |
| Laser power | 6000W (Optional) |
| Voltage | 380V, 50HZ, 3P |
Components of Fiber Laser Cutting machine
FSCUT2000C Laser Cutting System
- More rational arrangement of parts, reducing plate waste
- Quickly cut off the plate to recycle the residual material
- Multiple edge searching methods to accurately and quickly determine the angle of plate searching.
Intelligent focusing laser head
- High-efficiency cooling: collimator and focusing lens have cooling structures and increase the nozzle cooling airflow to effectively protect the nozzle and ceramic body and prolong the continuous working time.
- Adopt collimated focusing, compared with focusing focusing focus moves faster and has a larger focusing range.
- 25mm carbon steel plate pre-piercing time <1 second, greatly improving cutting efficiency.
Aviation aluminum beam
- It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
- It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Laser Cutting Samples
Laser Machine Upgrade
DXTECH is committed to providing one-stop processing solutions for your metal processing factory. We not only provide a complete production line of fiber laser cutting machine + CNC press brake + handheld laser welding machine, but also provide a series of auxiliary equipment, such as Hydraulic shearing machine, Channel letter bender, Metal roll forming machine and Laser rust remover, etc.
- One-stop processing
- More efficient production
Choosing DXTECH means you no longer have to worry about finding manufacturers of various machines and equipment. Our comprehensive services will ensure that your production process is efficient and smooth.
DXTECH focuses on providing customized equipment upgrade solutions for your metal processing plant. If your factory is still using traditional equipment such as plasma cutting machines, hydraulic shearing machines or water jet cutting machines that have low processing efficiency and unsatisfactory cutting quality, then DXTECH will be your ideal choice.
- More efficient
- More precise
- More energy-saving
We can help you upgrade these equipment to more efficient, more precise, and more energy-saving fiber laser cutting machines, thereby greatly improving processing efficiency and cutting quality, and bringing a qualitative leap to your factory.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
