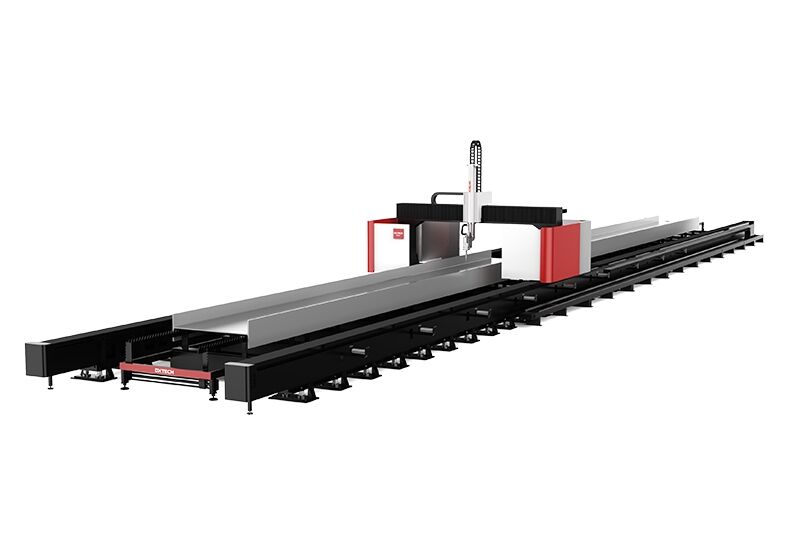

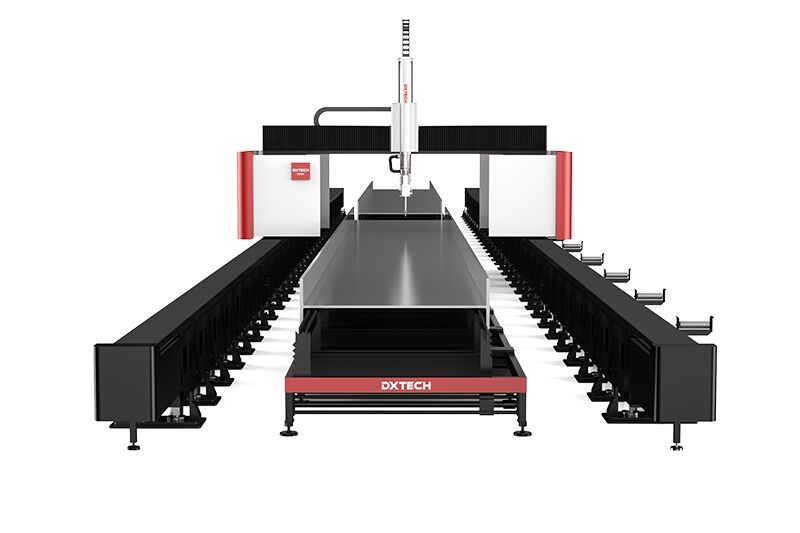

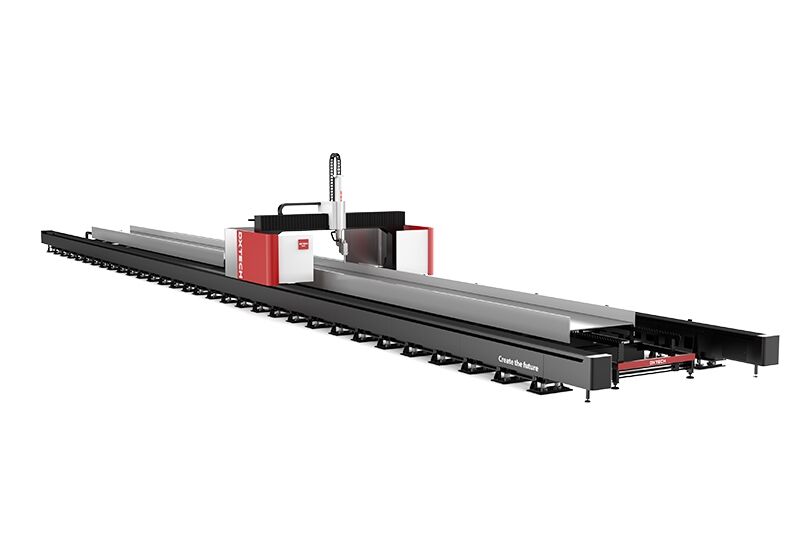

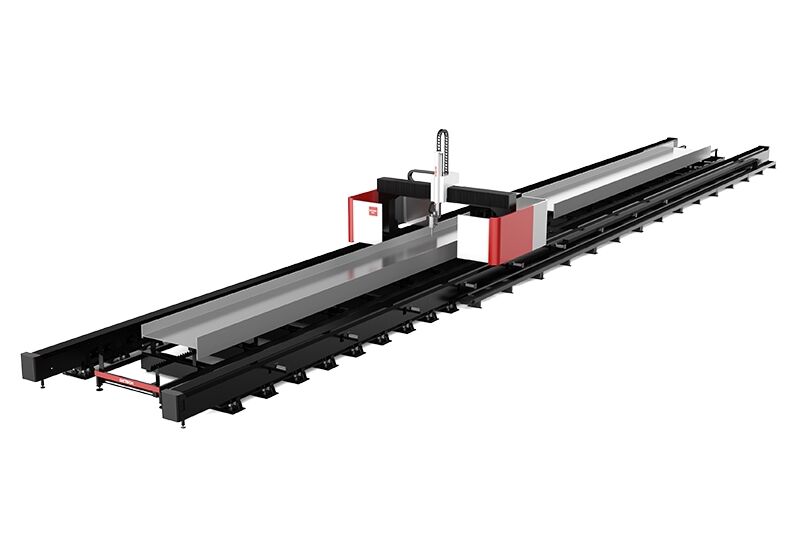

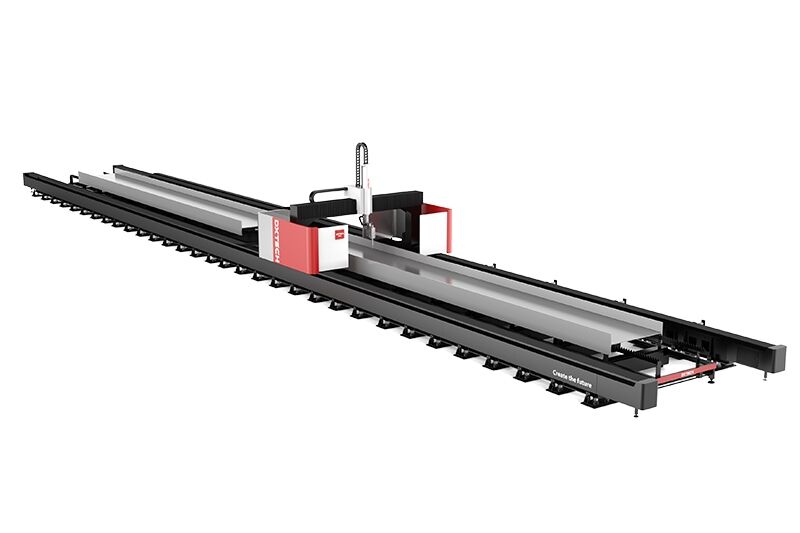

As a comprehensive solution for the steel structure industry, the DXTECH steel structure laser cutting machine excels in processing I-beams, HW, HM, HN section steel, and other metal materials. This machine features a heavy-duty rail system, ensuring stable and precise cutting. The innovative double-station working table design allows for simultaneous cutting and loading/unloading, significantly reducing time and labor costs. With a high one-time through-hole rate, this machine enhances efficiency and productivity, making it an indispensable tool for professionals in the steel structure industry.
Vide
Videos
Advantages
- Versatile Profile Processing: Utilizes a gantry design capable of precise cutting, beveling, and hole drilling for H-beams, channels, and I-beams, including variable cross-sections, replacing multiple traditional machines for cost-effective production.
- Comprehensive Laser Safety: Features all-round radiation shielding in the cutting area, ensuring high operational safety.
- Flexible Angle Cutting: Supports 90° lateral and 45° frontal/rear beveling, accommodating custom angle requirements.
- Sturdy & Modular Design: Separates the cutting platform from the machine base, distributing weight to the ground for enhanced stability, durability, and ease of maintenance.
- Dual-Station Efficiency: Open dual-station configuration allows continuous loading/unloading while the other station processes, minimizing downtime and maximizing productivity.
- Premium Electronics: Equipped with renowned Lanny brand electrical components and servo drives, ensuring stable, responsive performance.
- Intuitive Control System: Integrates Windows OS with a powerful, user-friendly H-beam CNC system (Beckhoff) and supports CAD/CAM software for in-process design, programming, and material optimization.
Features
3D H-Beam Steel Structure Fiber Laser Metal Cutting Machine for the Construction Industry：

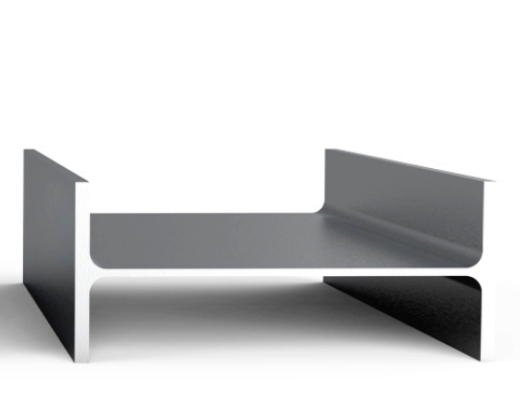

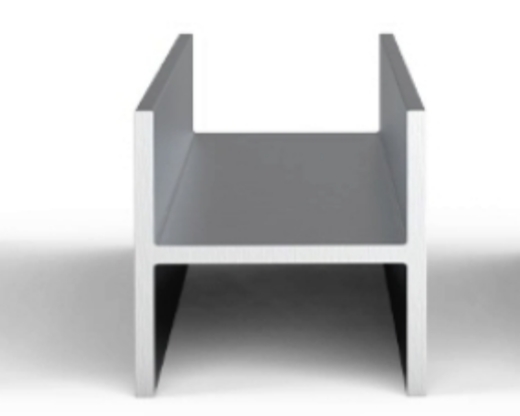

Versatile Shape Handling: Boasting the flexibility to adapt to diverse specifications, this system adeptly tackles intricate geometries such as I-beams, HW, HM, and HN section steel, showcasing unparalleled versatility.
Effortless Material Manipulation: Its innovative open design streamlines material lifting and clamping processes, fostering unparalleled operational ease and efficiency.
Heavy-Duty Production Capability: Catering to medium to large steel sections, this solution excels in full-length nesting, ideal for extensive construction projects requiring substantial cutting capabilities.
Dual-Station Efficiency Boost: The revolutionary front and rear dual-station configuration facilitates seamless heavy component loading, minimizing downtime and maximizing efficiency. This single-operator design slashes manpower needs by 3-4 workers, dramatically enhancing overall processing throughput.
Precision Profile Cutting Expertise: Featuring optimized material utilization, automated sorting, and pinpoint cutting accuracy, this professional profile cutting system guarantees unparalleled productivity and precision in every cut.
Machine Parameters
| Model | X3500 (12KW) |
| Machine size | 20000mm×5500mm×3200mm |
| Total weight of equipment | 26T |
| Processing area | X Axis:3500mm Y Axis:16000mm Z Axis:900mm |
| Table load | Section Steel 1000kg Flat plate 8000kg |
| Maximum linear speed | 40m/min |
| Maximum linear acceleration | 0.4G |
| Fiber Laser | 12KW |
| Specification of processed pipes | Minimum height of H-beam (wing plate) 200mm Maximum height of H-beam (wing plate) 800mm Processing length of H-beam 12000mm Plane cutting 2500*12000mm |
| Positioning accuracy | ±0.25 |
| Repeat positioning accuracy | ±0.05 |
| Voltage | 380V |
DXTECH Service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Components of Fiber Laser Cutting machine
Intelligent focusing laser head
- Advanced CNC Integration: BECKHOFF TwinCAT with 3D five-axis and RTCP for seamless automation and precision control.
- Dual Dust Protection: Enhanced dust-proofing ensures long-term optical clarity and reliability.
- Maximum Power Capability: Supports up to 40KW, tackling the most demanding cutting tasks.
WISDOM Intelligent Control System
- Real-Time Shape Compensation:
Integrated profile scanner detects and compensates for steel shape deformations, guaranteeing impeccable accuracy in steel profile cutting. - Multi-Faceted Cutting Capabilities:
Supports various bevel types for complex tasks. - Versatile Compatibility & Efficiency: Seamlessly imports diverse file formats (DXF, PLT, etc.), featuring auto-nesting for rapid setup and smooth operation, enhancing user experience.
Hanli Eco-Friendly & High-Precision Laser Chiller
- Precise Temperature Control: ±0.5°C accuracy for optimal performance.
- Dual Temp Control Modes: Intelligent thermostat with versatile settings for different applications and comprehensive fault indications.
- Dual Temperature & Control: Meets distinct cooling needs of fiber laser body and optics.

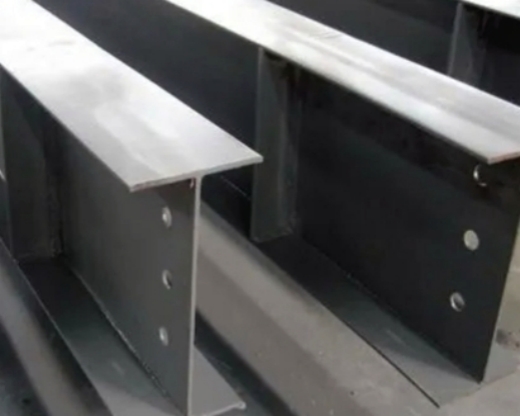

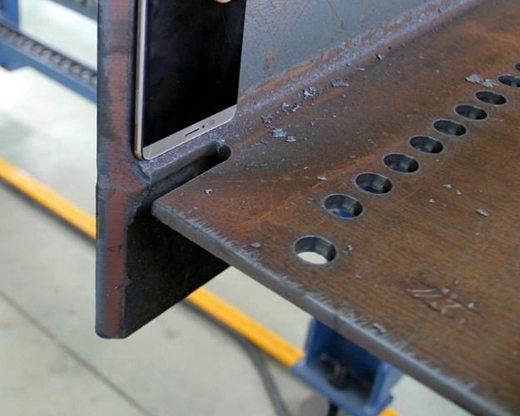

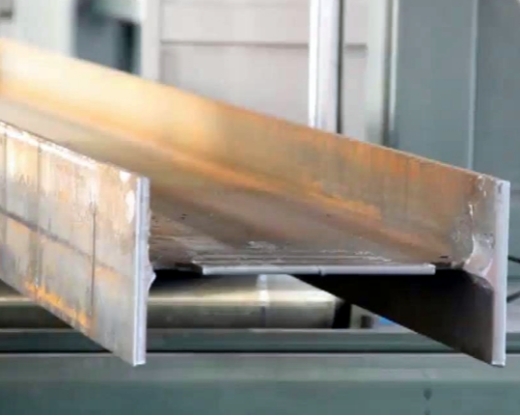

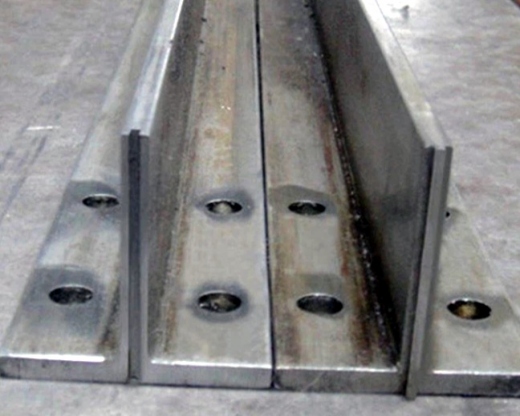

The Past Work
We provide free proofing service. Welcome to consult.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
