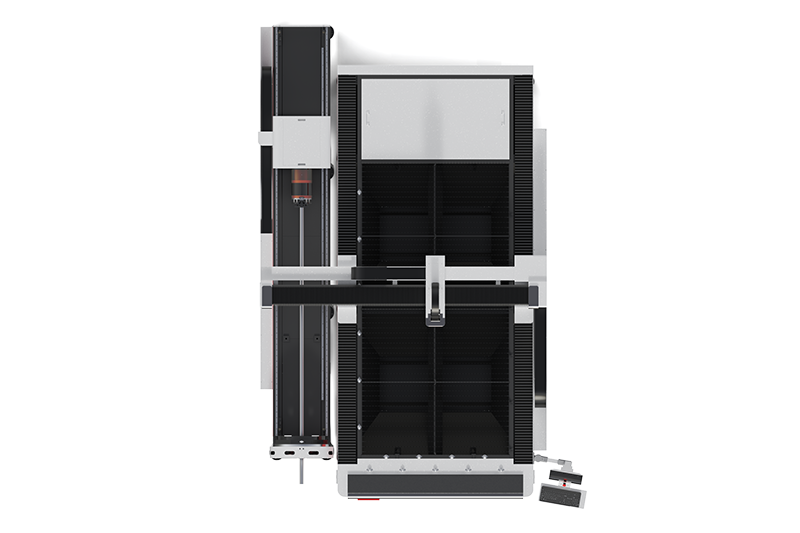

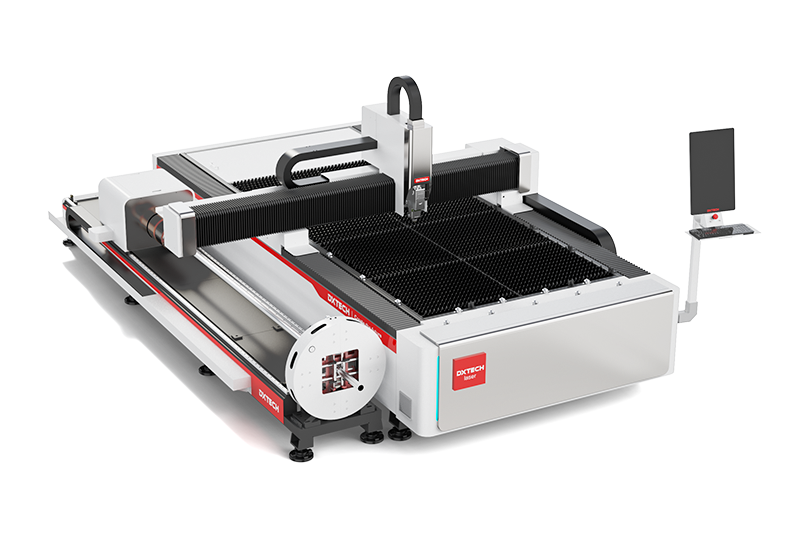

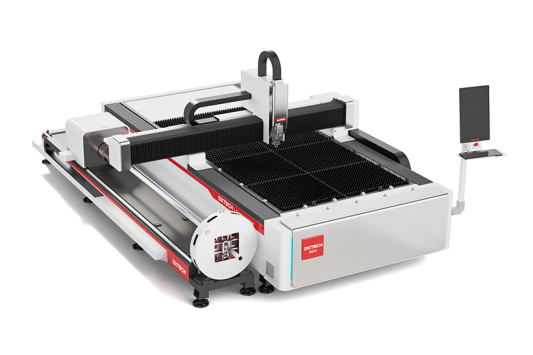

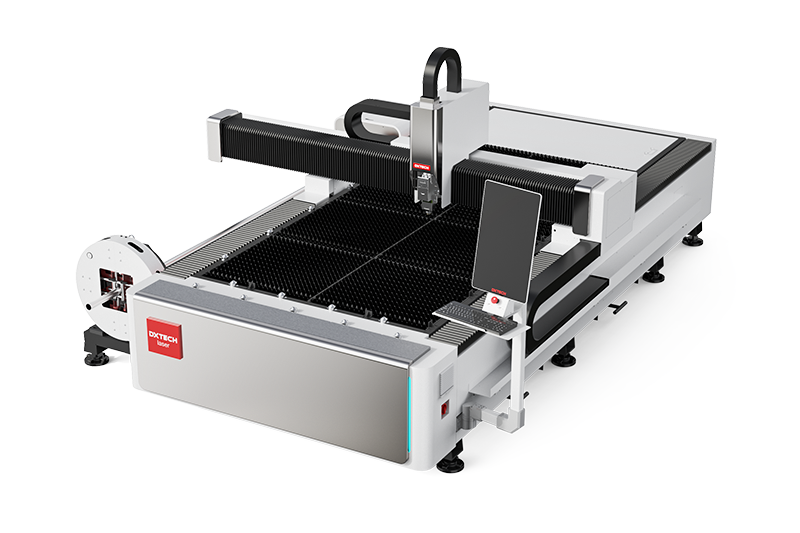

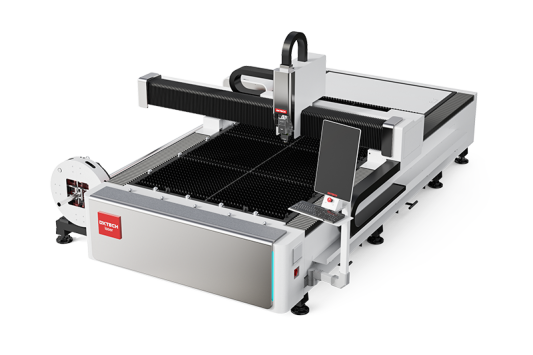

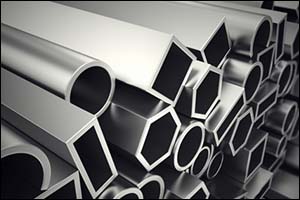

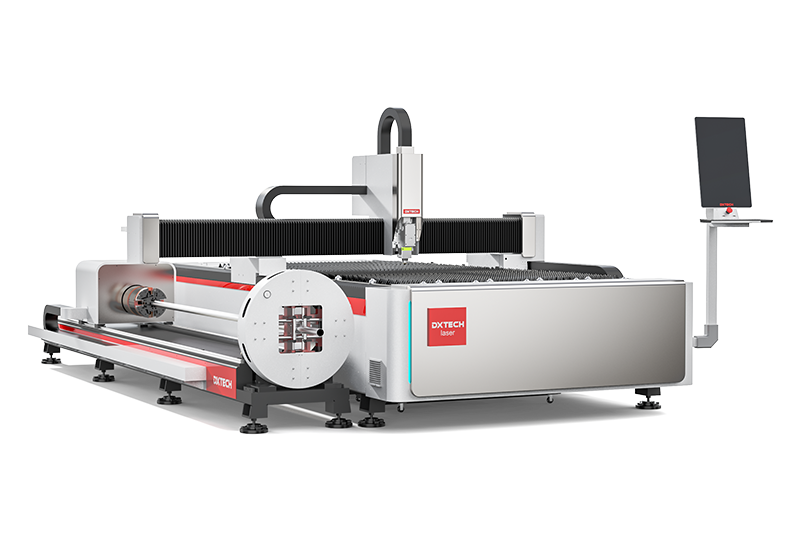

The High Capacity CNC Sheet Metal Cutting Machine Tube Laser Cutting Machine for Stainless Steel and Carbon Steel Laser Cutting is crafted for the purpose of cutting a wide array of metal tubes. This includes round tubes, square tubes, profile pipes, as well as metal plates. This advanced machine has the remarkable ability to perform cuts for holes, bevels, hollows, various shapes, and other elements such as angles, arcs, curves, and irregular shapes. When it comes to cutting bevels or special shapes, it might be necessary to use additional accessories or functions to fulfill more intricate cutting requirements. It can effortlessly cut through materials like stainless steel, aluminum, galvanized sheet, copper, and many other similar metals.
High Capacity CNC Sheet Metal Cutting Machine Tube Laser Cutting Machine Features
1. Dual – Function Integration for Enhanced Versatility
This machine adopts an integrated design that combines two essential cutting functions into one unit. It can proficiently handle both sheet and tube cutting tasks, offering remarkable versatility in a single machine.
2. Superior Cutting Quality and High – Speed Performance
Boasting a cutting speed of up to 120m/min, this equipment delivers not only high efficiency but also excellent cutting quality. The finished products have a smooth and aesthetically pleasing cutting edge, meeting the most demanding quality standards.
3. Robust and Stable Bed Structure
With an integrated design concept, the heavy – duty carbon machine bed undergoes stress relief annealing treatment and gantry milling machining. This meticulous process guarantees the bed’s stability during operation, enabling it to achieve the optimal cutting effect.
4. High – Quality Aluminum Beam
The aluminum beam is crafted through heavy – duty steel mold pressure casting. This method results in a uniformly dense aluminum structure, which imparts high strength to the protective casting surface.
5. Intelligent Auto – Focus Laser Head
The laser cutter is equipped with an auto – focus laser head. This advanced feature allows the machine to automatically adjust the focus according to different materials and thicknesses, ensuring maximum efficiency and effectiveness throughout the cutting process.
High Capacity CNC Sheet Metal Cutting Machine Specifications
| Model | 1530FL3T |
| Working area (mm) | 1515x3030mm |
| Worktable bearing capacity | 600KG |
| Max. acceleration | 1.2G |
| Positioning accuracy | ±0.03mm |
| Repositioning accuracy | ±0.02mm |
| Pipe section shape | Round/square/rectangular |
| Max. length of pipe | 3m |
| Laser power | 1-3kW |
| Laser | MAX, Raycus, IPG |
| Max. running speed | 100m/min |
Components of High Capacity CNC Sheet Metal Cutting Machine Tube Laser Cutting Machine

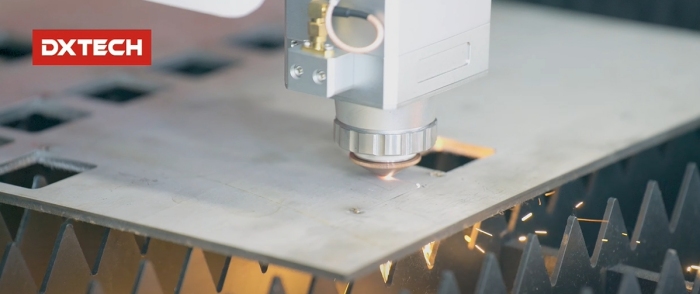

Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
High Capacity CNC Sheet Metal Cutting Machine Tube Laser Cutting Machine Samples
We provide free proofing service. Welcome to consult.
DXTECH Services
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
DXTECH Quality Assurance
2 Years free warranty
- This warranty only covers normal use of the laser machine
- This warranty does not cover any third party software or virus related issues not purchased from DXTECH
- We continue to provide lifetime free technical support to original customers. However, the warranty is not transferable.
Complete After-sales Service
- Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
- We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Customer feedback
▐ Laser Machine FAQ
Of course. From laser configuration to automation systems, we provide tailor-made solutions to meet your specific needs.
It can cut various metals including stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, and alloys.
2-year warranty for the main machine, 1-year for laser source and key components—covers manufacturing defects, excluding wear parts.
Standard models: 7-15 days; custom models: 30-45 days (varies by configuration and shipping location).
Laser source: annual check; lenses and nozzles: clean/replace every 200-300 hours; guide rails: lubricate monthly.
