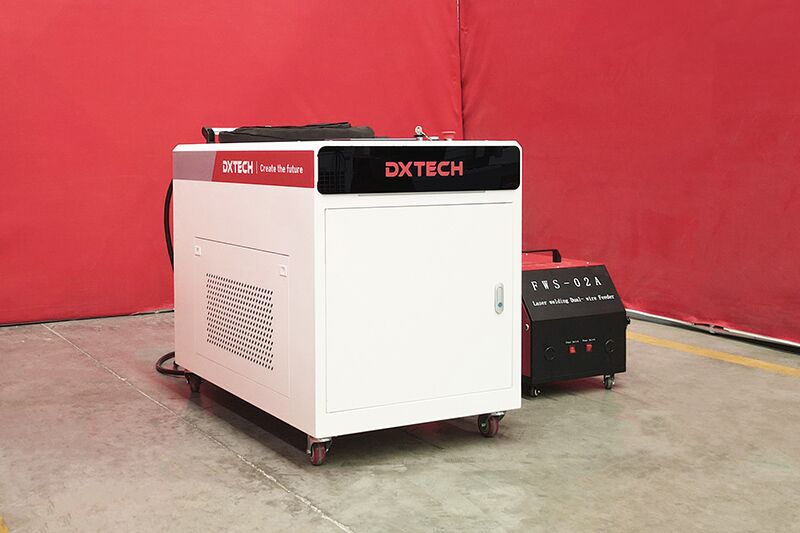

Handheld Fiber Laser Welding and Cutting Machine Application:
The handheld fiber laser welding and cutting machine can be used for welding thin metal sheets, such as stainless steel, carbon steel, galvanized sheet, copper, and other metals or alloys. Additionally, it is capable of irregular welding, cutting, and cleaning work between dissimilar materials. It is widely applied across various industries, including sheet metal manufacturing, mold manufacturing, kitchen cabinets and bathroom fixtures, sinks, billboards, door and window frames, home appliances, stainless steel doors and windows, handicrafts, automotive parts, enclosures, distribution boxes, staircases and elevators, shelves, ovens, stainless steel products, and hardware.
Video:
Machine Features:

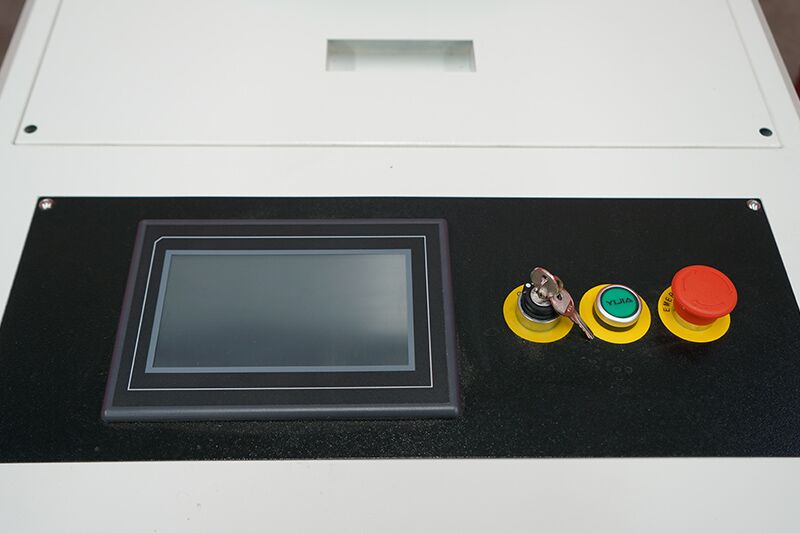

1. Intelligent Welding Parameter & Mode Control
Intelligent welding system enables parameter adjustment and free switching between multiple welding modes (e.g., spot welding, continuous welding).

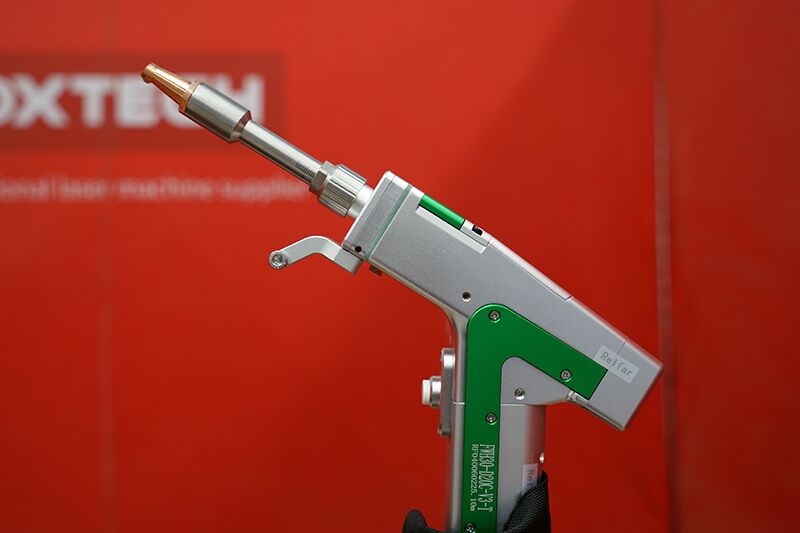

2. Ergonomic Dual-Swing Handheld Gun
Dual-swing handheld welding gun, featuring an ergonomic design for a comfortable, effortless grip, is specifically engineered for long-term use.

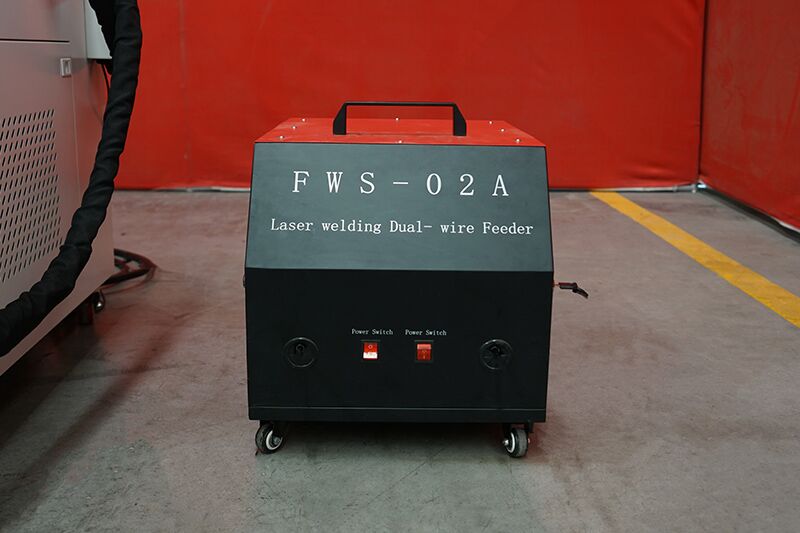

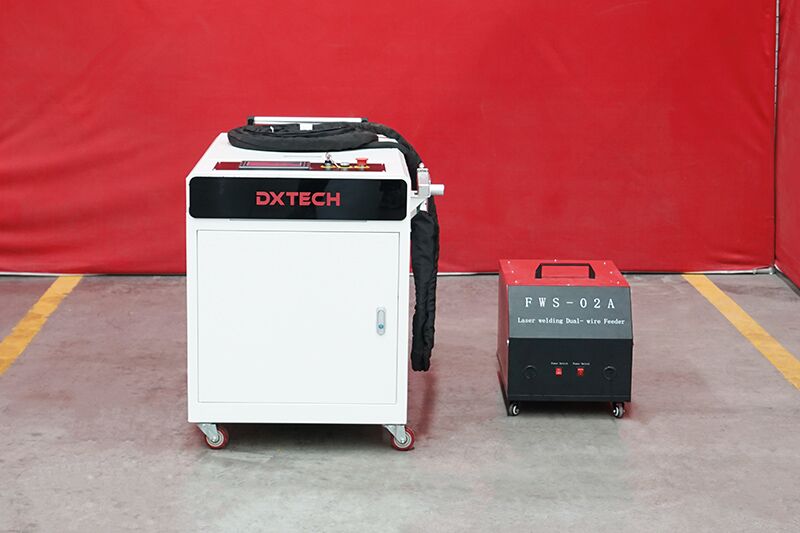

3. High-Performance Optical Components & Dual Wire Feeders
Equipped with high-threshold optical components and dual wire feeders, it delivers superior welding results.
4. 360° Non-Contact Eco-Cleaning
Non-contact 360° cleaning, unrestricted by space or position, is environmentally friendly with zero consumables.

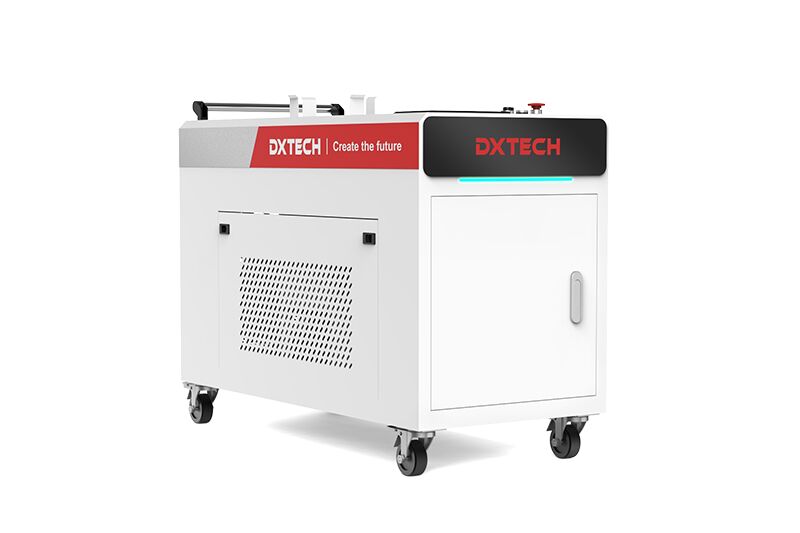

5. Compact Mobile Design
Featuring universal casters, its compact design allows easy mobility, convenient installation, and operation in diverse environments.
Technical Parameters:
| Model | MCCW 10/15/20 |
| Machine power | 1000w / 1500w / 2000w / 3000w |
| laser type | Continuous |
| Laser source | Fiber laser |
| Cleaning width | 10-200mm |
| Laser wavelength | 1080±5nm |
| Pulse width | 0.05-0.6 |
| Out power stability | <2% |
| Weld thickness | 2-2.5mm/2-2.5mm/3-4mm/5-6mm |
| Power consumption | 7KW / 8.2KW / 9.8KW / 13.9KW |
| Fiber optical length | 10m |
| Model | Regular / mini |
| Machine size | 700*1500*1300mm / 1500*750*850mm |
| machine weight | 240KGS / 160KGS |
Handheld Fiber Laser Welding and Cutting Machine Samples
DXTECH Quality Assurance
2 Years free warranty
- This warranty only covers normal use of the laser machine
- This warranty does not cover any third party software or virus related issues not purchased from DXTECH
- We continue to provide lifetime free technical support to original customers. However, the warranty is not transferable.
Complete After-sales Service
- Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
- We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Customer feedback

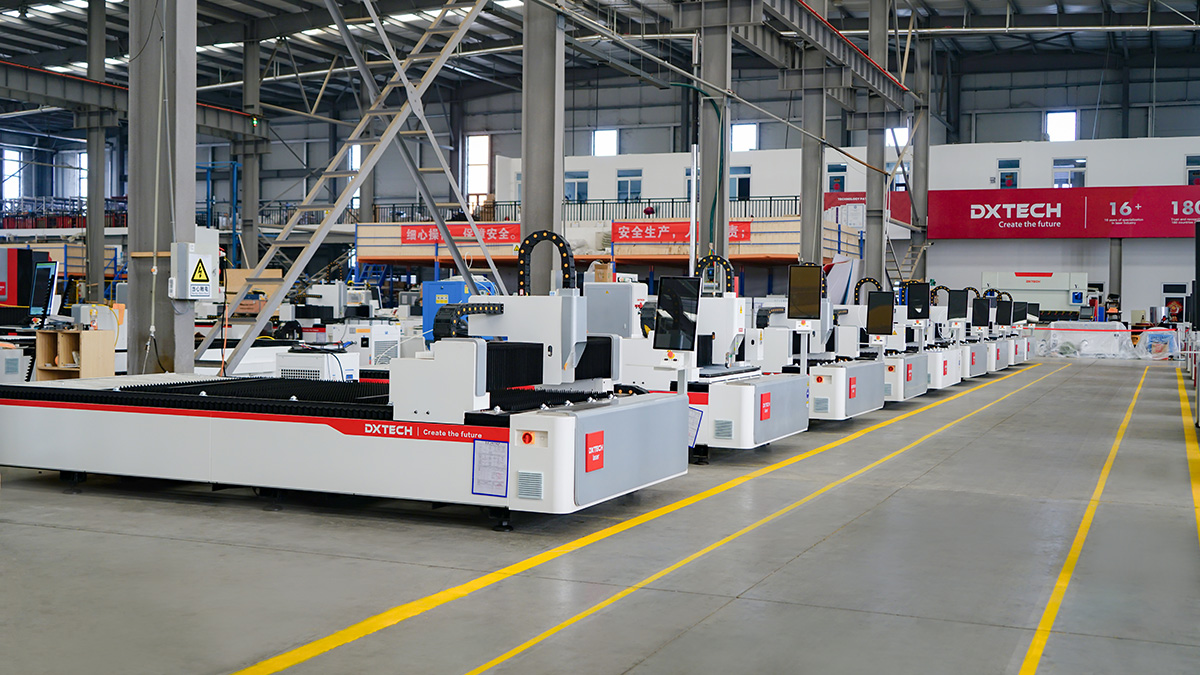

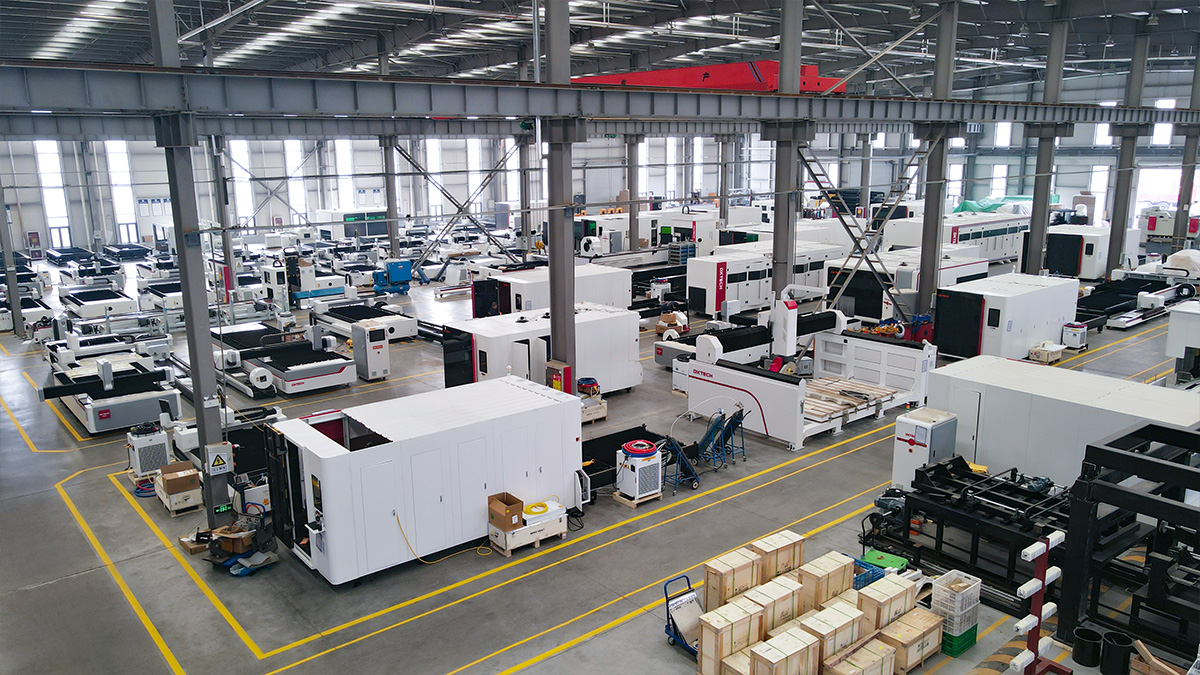

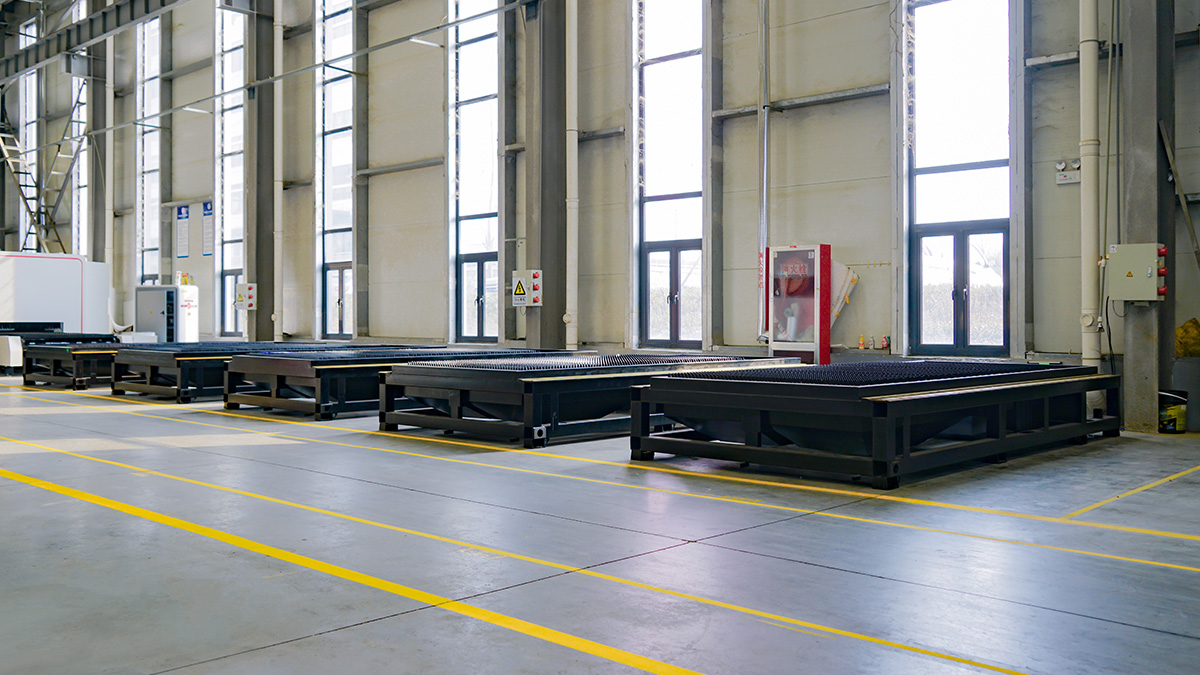

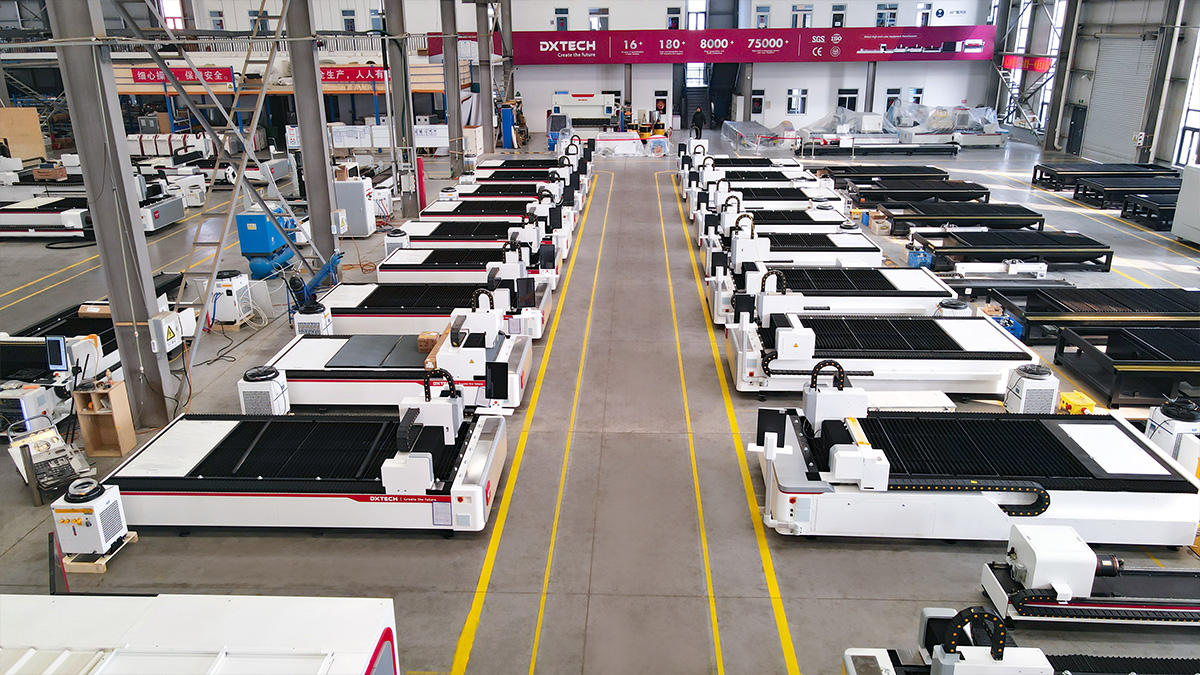

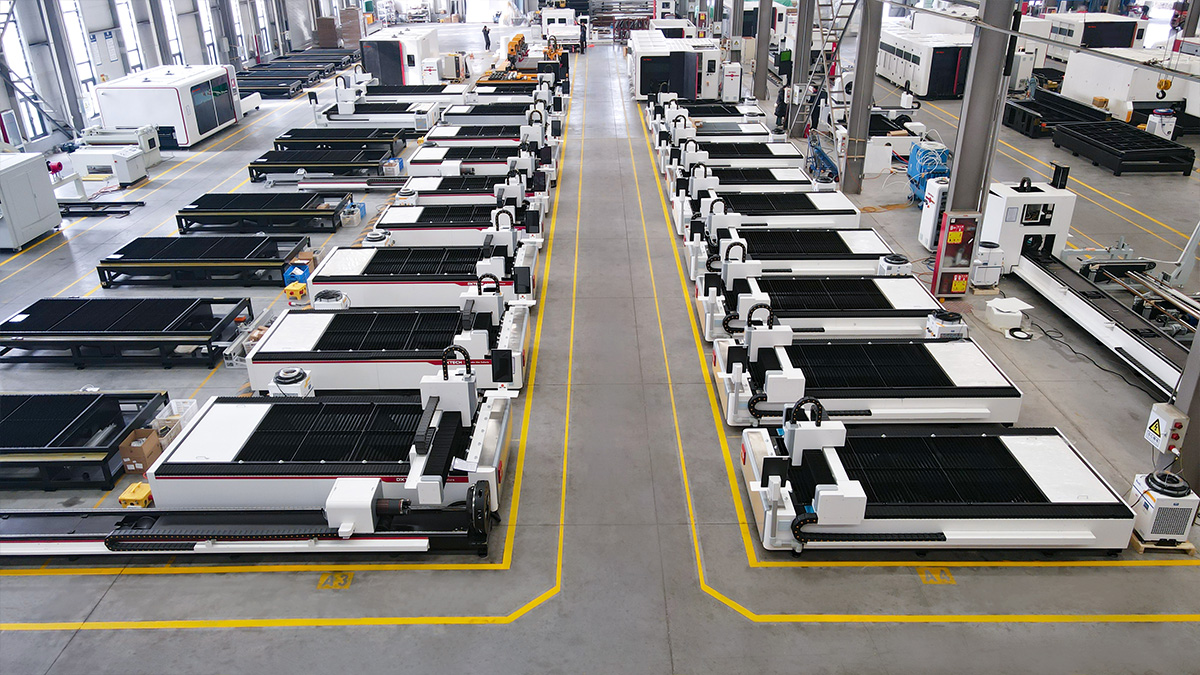

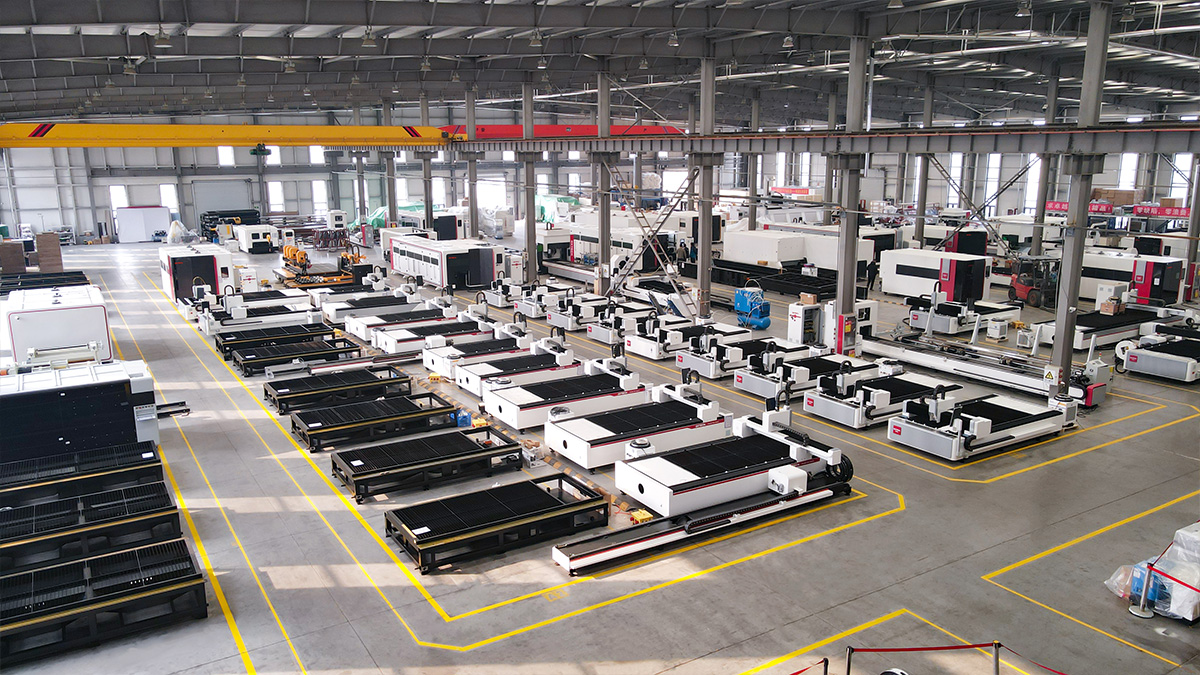

▍ Our Laser Machine Factory
▍Laser Welding Machine Upgrade
DXTECH focuses on providing customized equipment upgrade solutions for your factory. If your factory is still using traditional equipment such as TIG/MIG welding machines with low welding efficiency and unsatisfactory welding quality, then DXTECH will be your ideal choice.
- Efficiency: 3-10 times higher
- Accuracy: minimum 0.1mm
- Welding power: 1-3KW
- Optical cable length: 10m/20m/30m
We can help you upgrade your TIG/MIG welding machine to a more efficient, more precise, and more energy-saving handheld laser welding machine. The welding quality and efficiency will be greatly improved, bringing a qualitative leap to your factory.
