Wholesale High Power CNC 20KW Fiber Laser Cutting Machine for Thick Metal laser Cutting Price in Australia

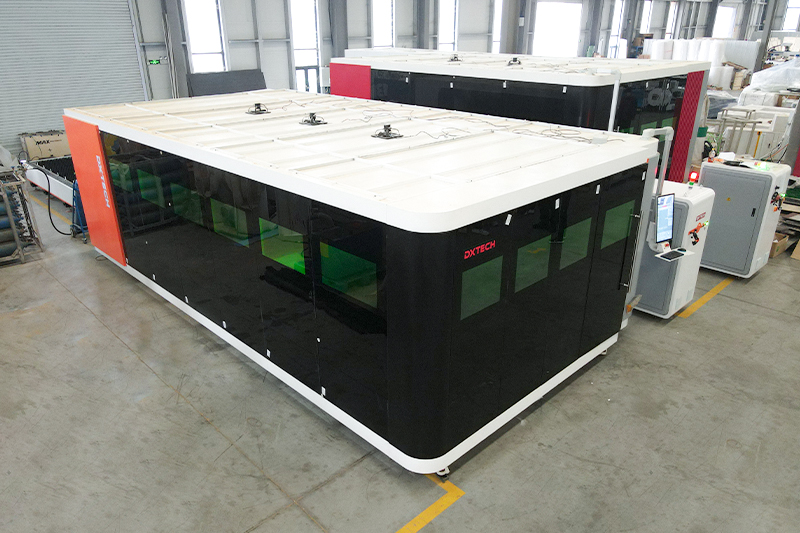

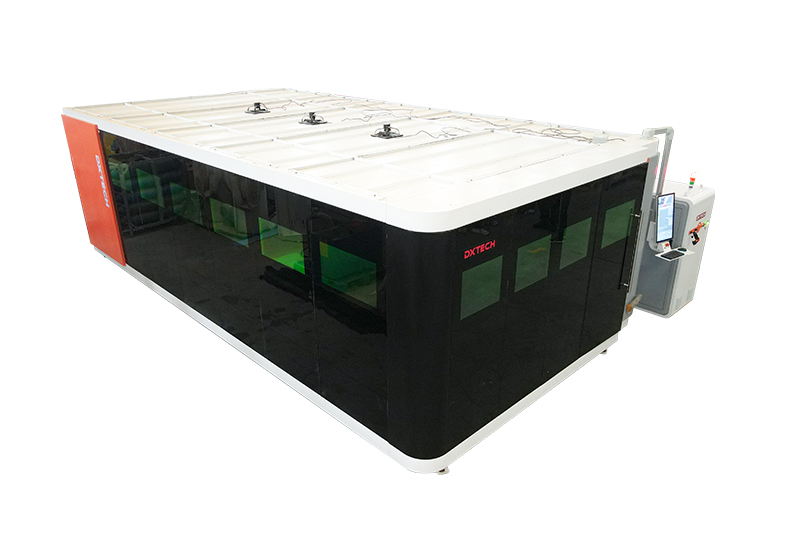

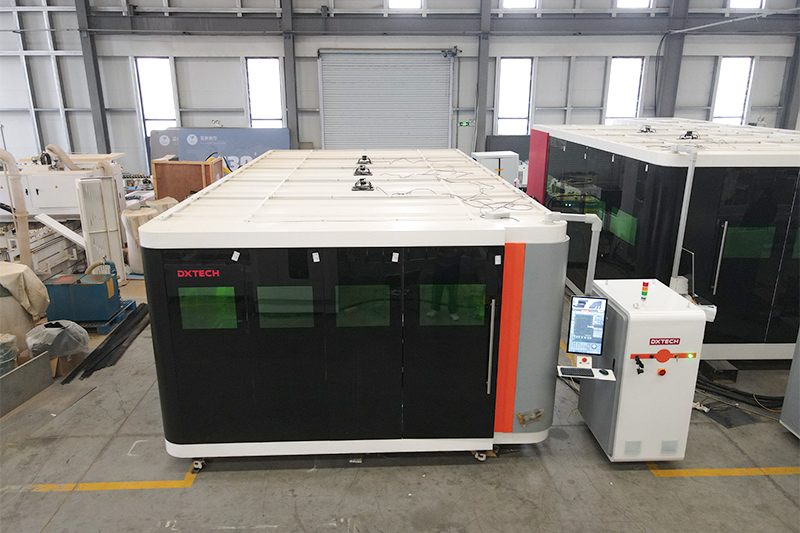

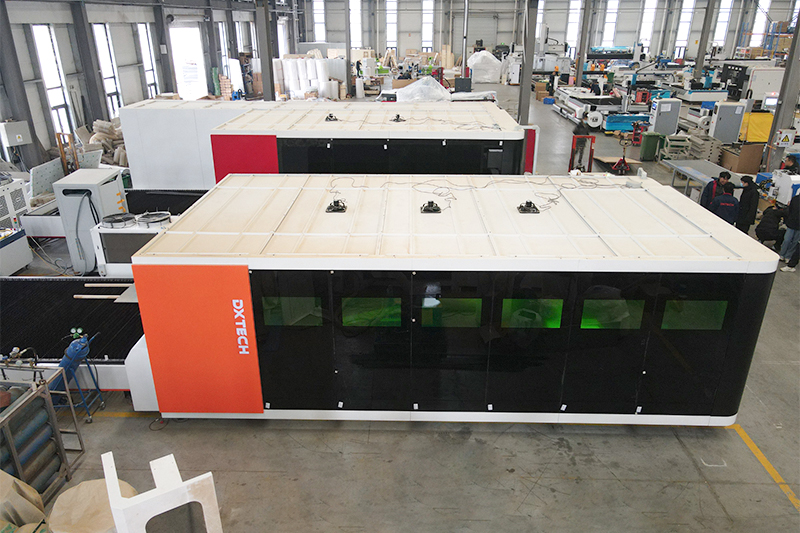

The 20KW fiber laser cutting machine is designed with a dual-loading exchange platform for simultaneous loading and unloading, allowing for seamless operation. It boasts a high-precision, anti-vibration pneumatic platform, and a negative pressure, dual-row zoned dust removal system to prevent smoke leakage. Additionally, the machine comes equipped with a cantilever controller for user-friendly operation and dual cameras for real-time monitoring of the machine’s dynamics.

  • 360°all-around protection device, safer
  • Totally enclosed smoke control, keep clean and smoke-free
  • Double gear transmission system, high working precision

Wholesale High Power CNC 20KW Fiber Laser Cutting Machine for Thick Metal Laser Cutting Price in Australia offers excellent dynamic performance and rapid servo response. It features a medium-power fiber laser to ensure high cutting efficiency. The machine includes a fully enclosed laser shield with a specialized laser protective glass observation window, a scientific smoke recovery and purification system, and a standard exchange platform. This enclosure safeguards the operator from sparks and slag splashes during production, keeping the workspace clean. The pallet exchange system allows for quick and easy loading and unloading of sheet metal, enhancing machining efficiency.

Wholesale High Power CNC 20KW Fiber Laser Cutting Machine for Thick Metal laser Cutting Price in Australia Advantages

  1. The machine features a fully enclosed protective cover to ensure operator safety and maintain environmental hygiene.
  2. It boasts a fast cutting speed of up to 60m/min, delivering high-quality cuts with smooth, defect-free surfaces.
  3. Capable of cutting a wide range of metal materials, such as, carbon steel, stainless steel, aluminum. It produces smooth, burr-free edges.
  4. With a compact design, the machine’s crossbeam is made from cast aluminum, offering lightweight and rapid dynamic response.
  5. Equipped with imported fiber laser, the machine provides high stability, efficiency, and long lifespan.
Inquire now

Wholesale High Power CNC 20KW Fiber Laser Cutting Machine for Thick Metal laser Cutting Price in Australia video

Inquire now

Wholesale High Power CNC 20KW Fiber Laser Cutting Machine for Thick Metal laser Cutting Price in Australia SPECIFICATIONS

Model 1530SG 2040SG 2060SG
Overall size 9000*3000*2550mm 11000*3500*2550mm 15000*3500*2550mm
Weight 9t 13t 16t
Table size 1515×3030 2020×4040 2020×6050
Single table bearing 2600Kg 4500Kg 6800Kg
Table exchange time 30S 30S 30S
Max. linkage speed 140m/min 140m/min 140m/min
Max. acceleration speed 2G 2G 2G
Positioning accuracy ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy ±0.02mm ±0.02mm ±0.02mm

DXTECH service

We extend a warm invitation to customers from both domestic and international locations to visit our factories and offices for in-person business discussions. Currently, we have a 45,000㎡ workshop in Jinan and are constructing a new 30,000㎡ factory in Taian, Shandong Province.

Our sales representatives and factory technicians are dedicated to addressing all your after-sales needs from the moment you receive your laser machine.

We offer complimentary online training and technical support. Additionally, we can travel to your location to assist with installation, debugging, training, and operational guidance.


Inquire now

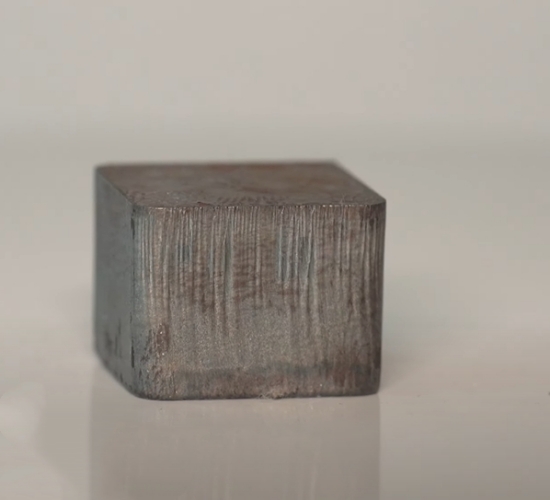

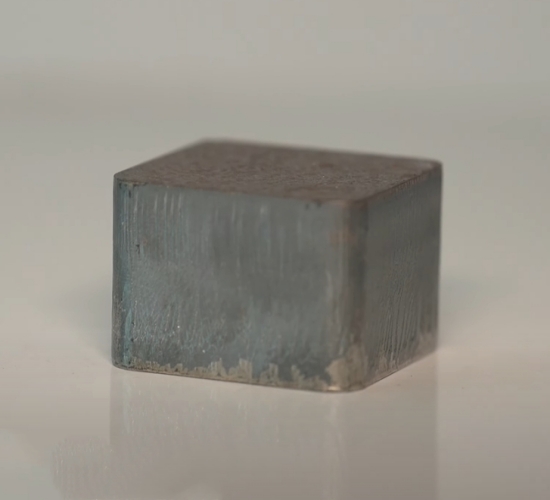

Wholesale High Power CNC 20KW Fiber Laser Cutting Machine for Thick Metal laser Cutting Price in Australia samples

20kw fiber laser cutting machine laser cutting machine price australia
20kw fiber laser cutting machine laser cutting machine price australia
20kw fiber laser cutting machine laser cutting machine price australia

We provide free proofing service. Welcome to consult.

Inquire now

Customer Reviews

Argentina customer

Turkish customer

Italian customer

Through the brief introduction of DXTECH staff, we fully understand the strength of DXTEXH. They care about the interests of customers and answer our questions patiently. They will provide online and offline guidance until you solve the problem. Our cooperation this time is very pleasant, and the quality of the cutting machine is also very good. After using it, the efficiency of our factory has increased by 40%, and we will cooperate again!

Mongolian Customer

I’m otgonbayr, from Mongolia.We have been using DXTECH laser cutting machine for two years.The machine has very good quality and the service is also perfect.Today we visit the production factory, which is very large,professional and powerful. The staff are also very professional and patiently answer our questions. DXTECH is definitely a good choice.

Inquire now

Components of Fiber Laser Cutting machine

laser-head

Intelligent focusing laser head

1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.

The Tube Welded Bed

Thick-walled carbon steel plate welding bed

Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.

Cast aluminum beam

Aviation aluminum beam

1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.

CypCut Laser Cutting Control System

Weihong LS1500/LS3000 Laser Cutting Control System

Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
