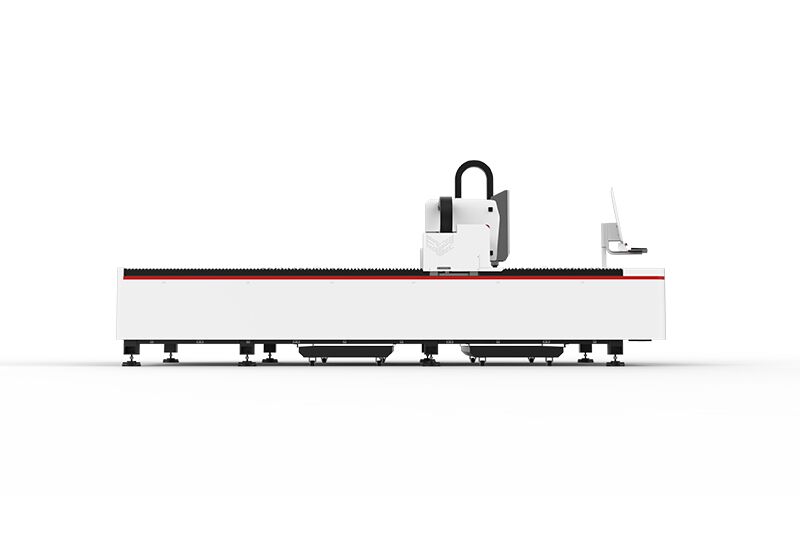

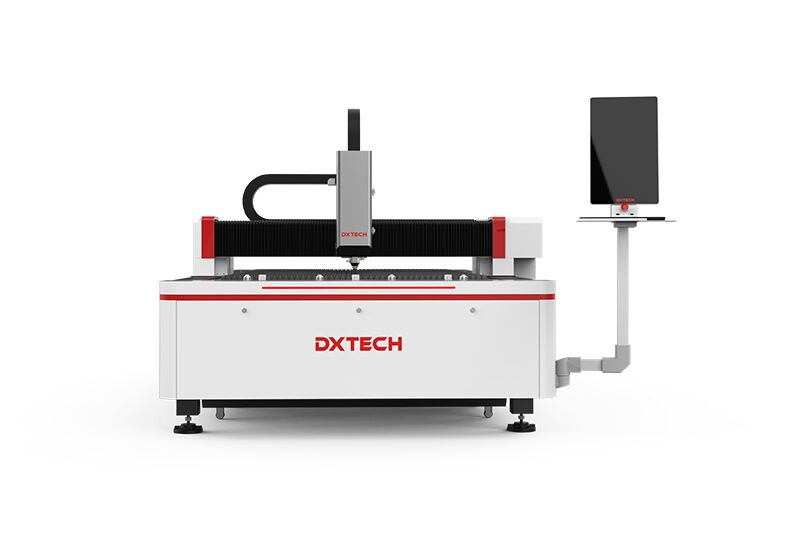

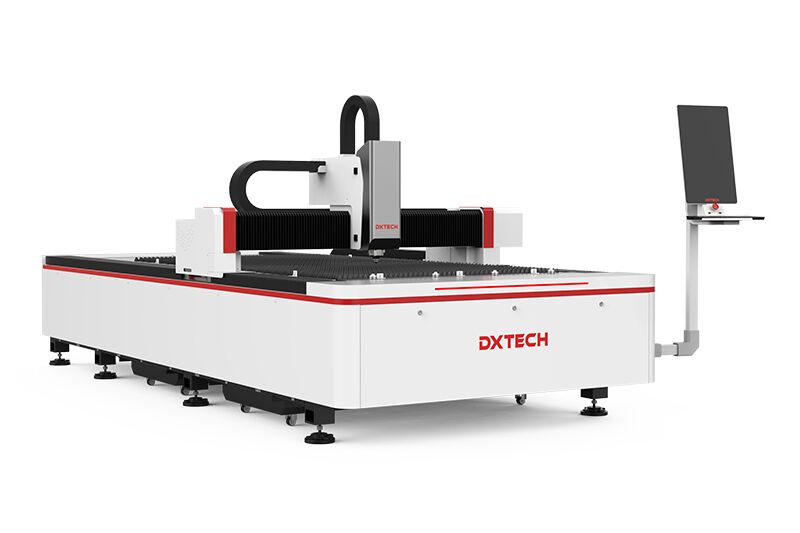

Sheet laser cutting machine for automobile industry for sale in Vietnam is used to cut sheet metal with thicknesses of 0.5mm – 25mm, such as stainless steel, aluminum alloy, brass, and other materials. And you can use this machine in many fields, such as the automotive industry, sheet metal industry, kitchen cabinet industry, advertising industry, etc.
Sheet laser cutting machine for automobile industry for sale in Vietnam Advantages
1. High cutting quality
The energy loss is minimal, the cutting speed is fast, the cuts are neat, the geometric deformation of the material being cut is small, and the properties of the material being cut will not be changed. The cutting surface is smooth and requires no machining or polishing.
2. High cutting efficiency
Metal laser cutting is used in conjunction with multiple CNC consoles, so the cutting process can be fully mechanized and digitalized, ensuring cutting diversity, which is also the biggest difference from traditional cutting machines.
3. Non-contact cutting
There is no contact between the tool and the material being processed, and there is no wear and tear of traditional cutting tools. Cutting materials can be cut directly without fixtures, ensuring the flexibility and operability of the laser cutting process.
Sheet laser cutting machine for automobile industry for sale in Vietnam video
Sheet laser cutting machine for automobile industry for sale in Vietnam SPECIFICATIONS
| Model | 1530FB | 2040FB | 2560FB |
| Machine size | 4320*2250*1950mm | 5350*2800*1950mm | 5350*3350*1950mm |
| Working area | 1515*3030mm | 2020*4040mm | 2525*6050mm |
| Positioning accuracy | ±0.03mm | ||
| Repositioning accuracy | ±0.02mm | ||
| Max. acceleration | 1.5G | ||
| Laser power | 1-2kW | ||
| Laser | multiple options | ||
| Focusing method | Auto/manual | ||
| Max Running Speed | 140m/min | ||
DXTECH service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Sheet laser cutting machine for automobile industry for sale in Vietnam samples
We provide free proofing service. Welcome to consult.
Sheet laser cutting machine for automobile industry for sale in Vietnam Cutting parameter map
Customer Reviews
Components of Fiber Laser Cutting machine
Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
