Automatic 6 Axis Industrial Laser Welder for Aluminium laser welding Price in America Los Angeles, California

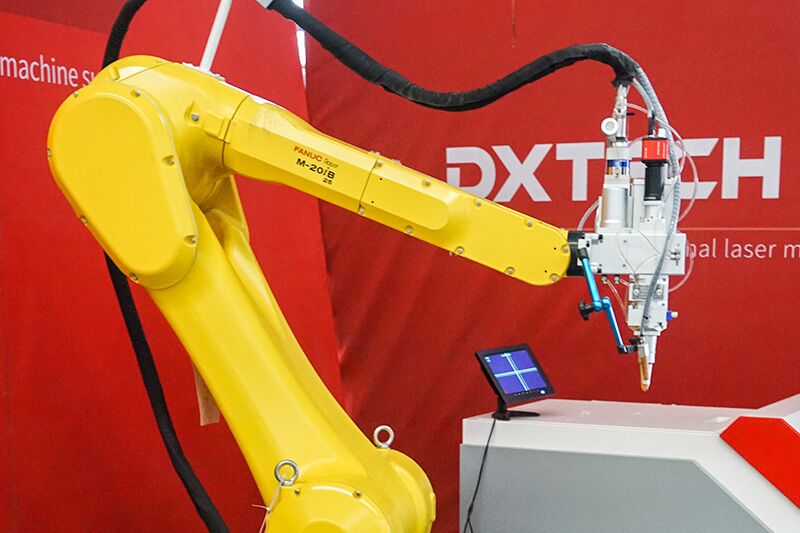

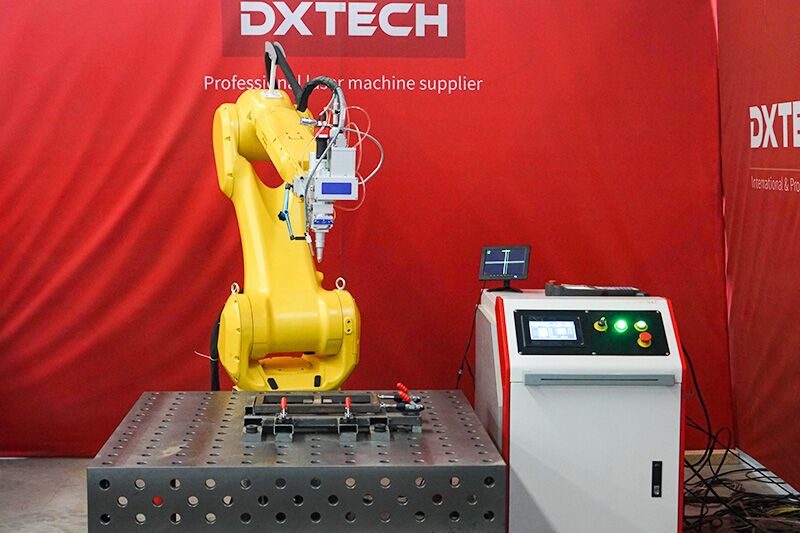

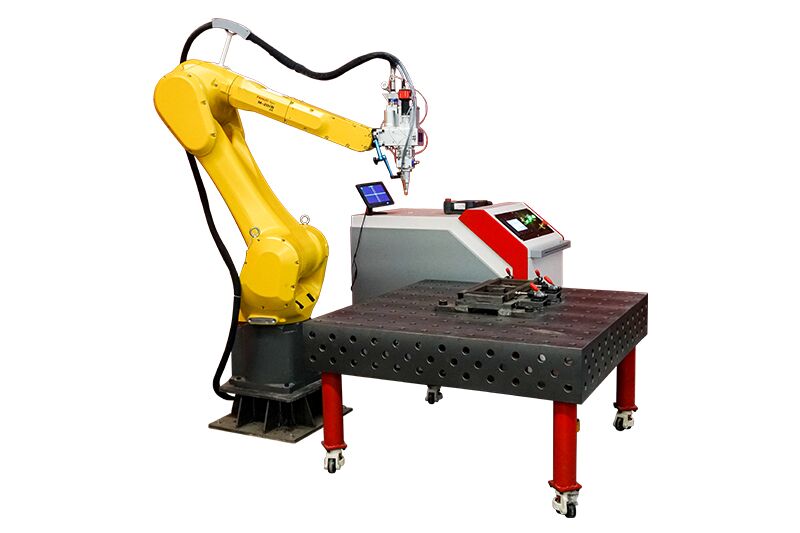

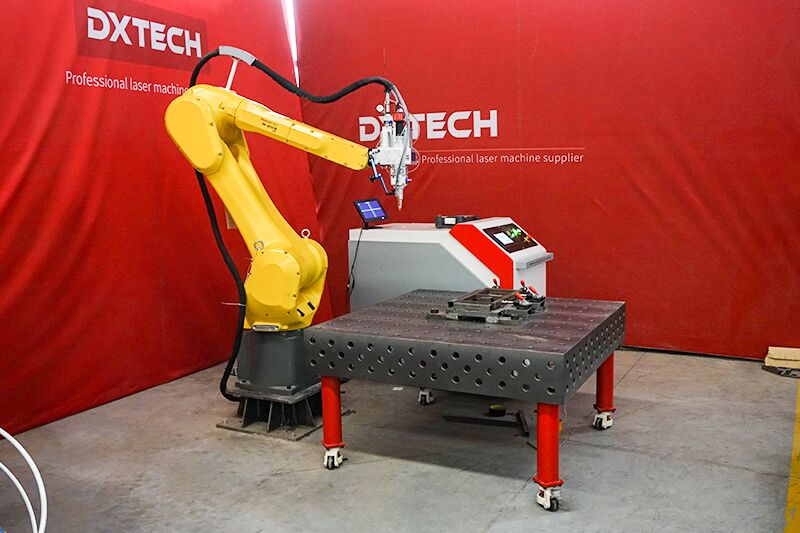

The Automatic 6 Axis Industrial Laser Welder for Aluminium laser welding is a prime example of advanced robotics. Primarily composed of joints and a connecting arm, this machine’s robot arm and wrist work in unison to achieve precise trajectory movements, offering 6 degrees of freedom in space. The laser welding robotic system combines speed, reach, and payload capacity, making it ideal for most laser welding applications. Excelling in small to medium-sized welding tasks, its extensive range of motion enables it to handle complex part geometries with ease.

• Intelligent and Flexible: The robot features an advanced control system and a six-axis design, enabling it to weld in any spatial orientation without constraints, thereby enhancing its flexibility and applicability.
• Customizable Fixtures: Users can tailor fixtures to meet specific production needs, ensuring that the workpiece remains securely in place during welding, thus boosting both productivity and welding quality.
• Dual-Station Welding: Capable of performing dual-station or single-station welding, this robot saves time on fixture installation and significantly improves production efficiency.

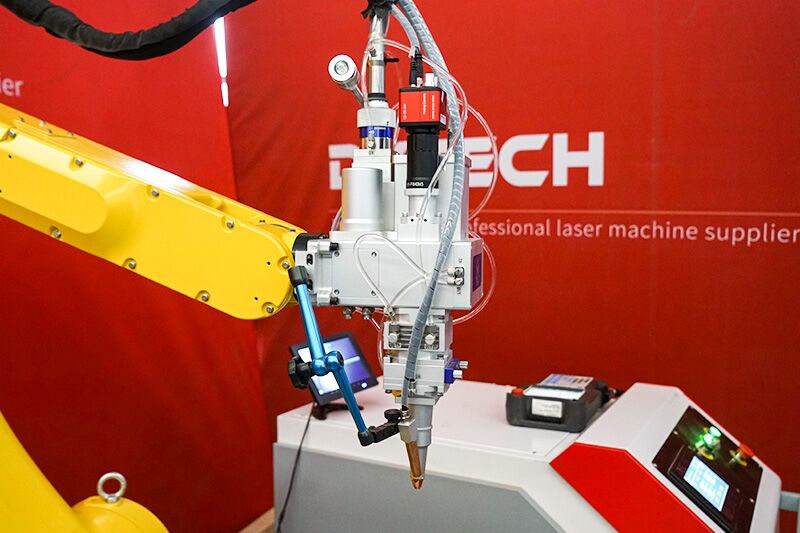

• Advanced Oscillating Welding Head: Equipped with a state-of-the-art oscillating welding head, it employs a unique wedge-shaped vibration mode that broadens the weld seam and extends the range of applicable laser welding tasks, accommodating larger workpieces.
• Efficient and Precise Laser Welding: The robot excels in efficiently and precisely welding workpieces with wider seams, delivering superior weld quality and a smoother, more visually appealing finish, thereby enhancing the overall product quality.
• High Repeatability and Low Operational Costs: With high repeatability, the robot ensures consistent welding accuracy and does not require consumables, offering flexibility in manufacturing and maintaining low operational costs.
• Replacement of Manual Labor: In challenging welding environments, the robot can substitute for manual labor, improving safety, productivity, and reducing human resource costs.

Model	RW18
Laser power	6000W
Laser source	Max
Laser wavelength	1080±5nm
Robot	FANUC 6-axis laser welding robot
Laser head	WSX wobble laser welding head
Water chiller	Hanli
Voltage	380V 50Hz 3PH

We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.

Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.

We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.

We provide free proofing service. Welcome to consult.
