┃Hand Held Metal Laser Welding Machine Advantages
1. High-Power Optical System with 2000W Capacity
Featuring premium optical lenses, it supports up to 2000W power for robust performance.

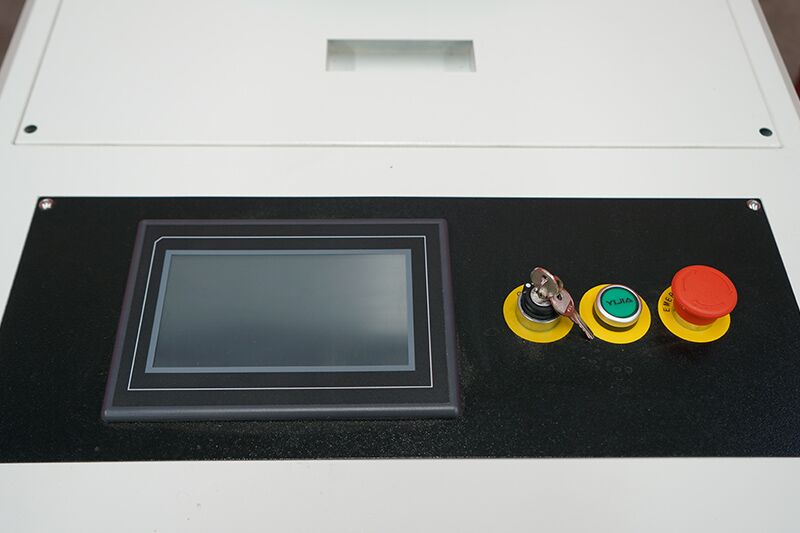

2. Direct Panel Control for Auto-Focus Modes
The control panel enables direct auto-focus operation, supporting both contact and non-contact modes.
3. Automatic Laser Lockdown Safety System
Multiple safety alarms automatically lock the laser source when the workpiece is removed, ensuring operational safety.
4. Multi-Angle Nozzles for Versatile Welding
Equipped with adjustable-angle nozzles, it adapts easily to diverse welding requirements.
▍Hand Held Metal Laser Welding Machine Technical Parameter
| Model | MCCW10/15/20/30 |
| Laser power | 1000-3000W |
| Laser source | Raycus, MAX |

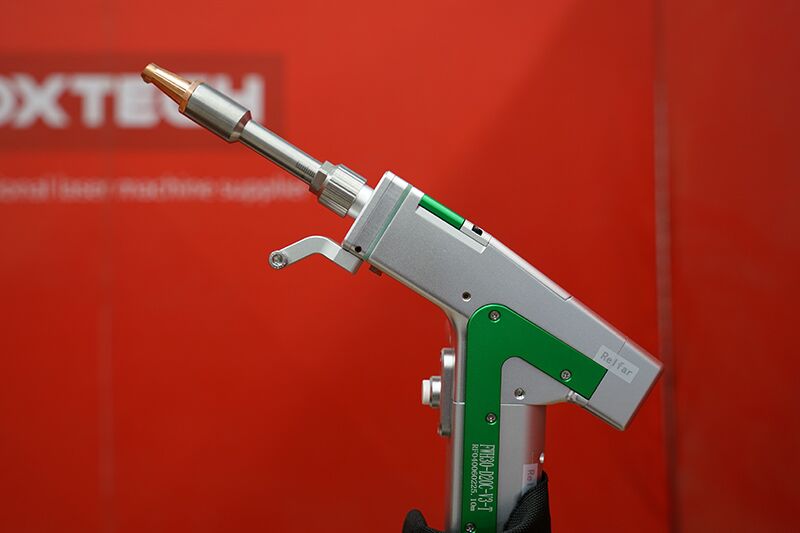

| Laser welding gun | Chaoqiang SUP23T |
| Wavelength of laser | 1080nm |

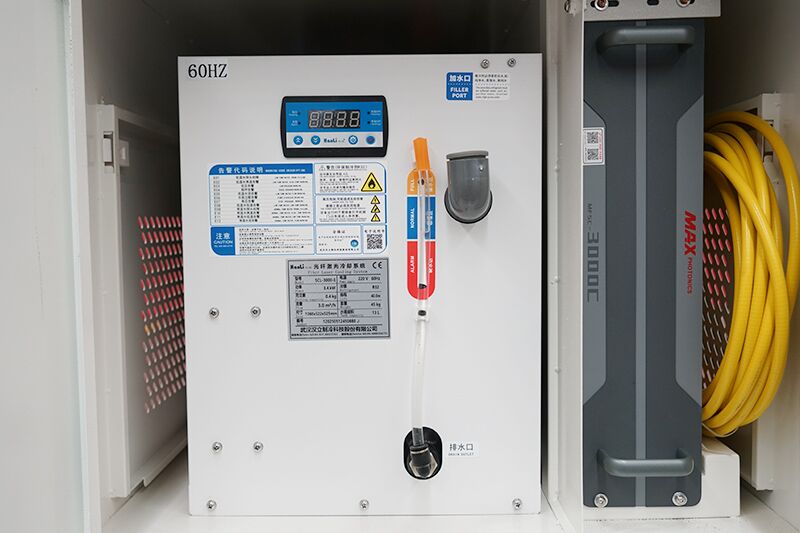

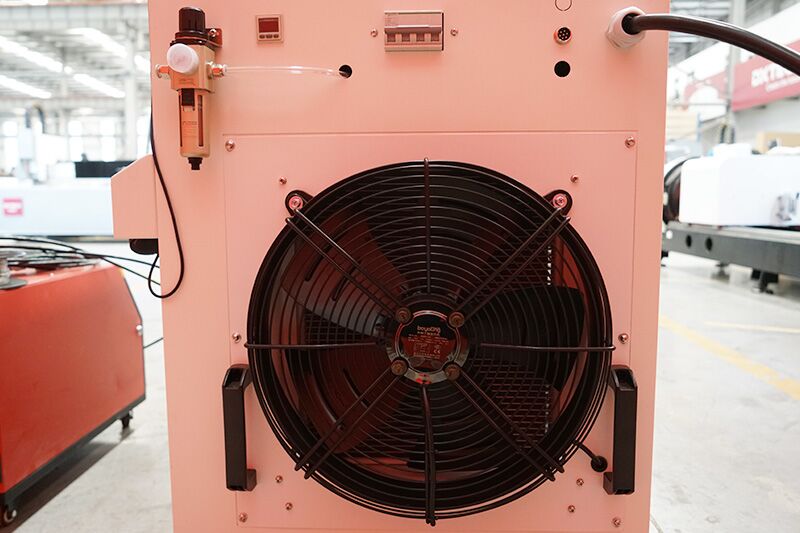

| Cooling method | Water chiller |
| Cable length | 10m, optional: 20m |
| Functions | welding, rust removal, cutting, weld seam cleaning |

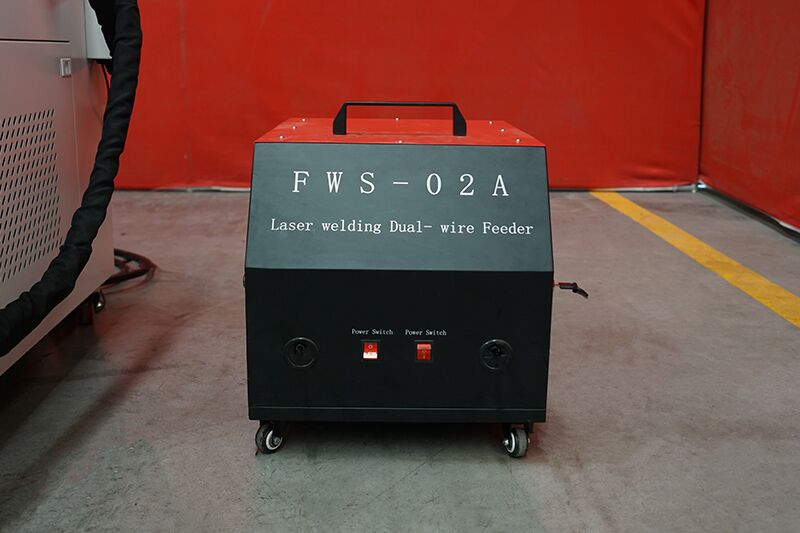

| Wire feeder | Automatic wire feeder |
| Cleaning width | 30-12mm, depending on the focal length of the focusing lens |
DXTECH Services
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
DXTECH Quality Assurance
2 Years free warranty
- This warranty only covers normal use of the laser machine
- This warranty does not cover any third party software or virus related issues not purchased from DXTECH
- We continue to provide lifetime free technical support to original customers. However, the warranty is not transferable.
Complete After-sales Service
- Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
- We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Customer feedback
▍Hand Held Metal Laser Welding Machine Samples
We provide free proofing service. Welcome to consult.
▍Laser Welding Machine Upgrade
DXTECH focuses on providing customized equipment upgrade solutions for your factory. If your factory is still using traditional equipment such as TIG/MIG welding machines with low welding efficiency and unsatisfactory welding quality, then DXTECH will be your ideal choice.
- Efficiency: 3-10 times higher
- Accuracy: minimum 0.1mm
- Welding power: 1-3KW
- Optical cable length: 10m/20m/30m
We can help you upgrade your TIG/MIG welding machine to a more efficient, more precise, and more energy-saving handheld laser welding machine. The welding quality and efficiency will be greatly improved, bringing a qualitative leap to your factory.
