Press Brake Machine Bending Samples
Press brake machines can bend a variety of metal materials such as stainless steel, iron, copper, aluminum, titanium and carbon steel. As small as non-ferrous metals, ferrous metal sheets, automobiles and ships, electrical appliances, decoration, kitchen utensils, cabinets, elevator cabinet doors, cutting and bending processing; as large as the aerospace field, CNC shearing machines and sheet metal bending machine are playing an increasingly important role.
We provide free proofing service, welcome to consult.

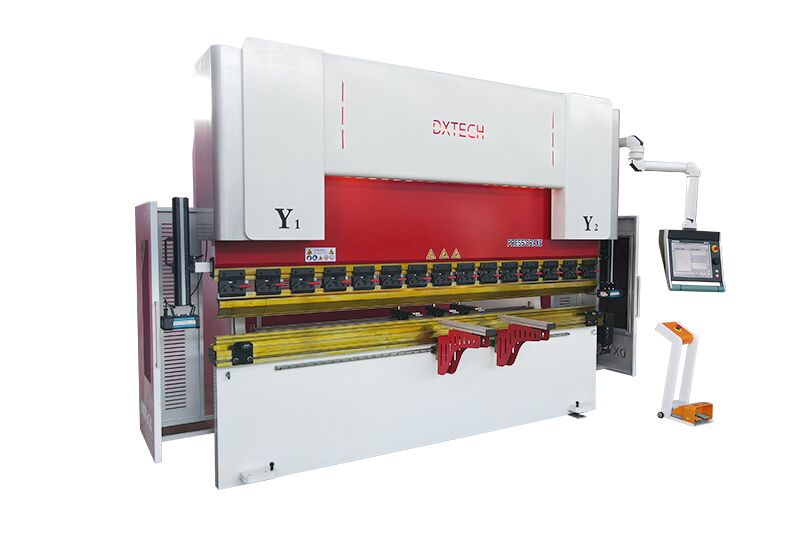

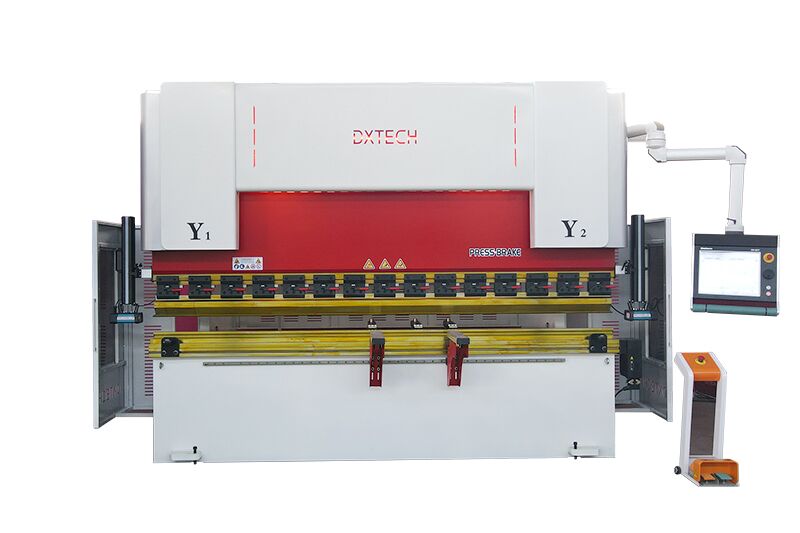

Features of High-Performance CNC Hydraulic Bending Machine Industrial Sheet Metal Bender for Sale in Kazakhstan, Armenia
● Integrally welded processing structure
● Closed – loop control mode composed of imported internationally renowned brand electro – hydraulic servo valves and grating rulers
● The slider position has high feedback accuracy, operates accurately and smoothly, has good synchronization performance, high bending accuracy, and high slider repeat positioning accuracy.

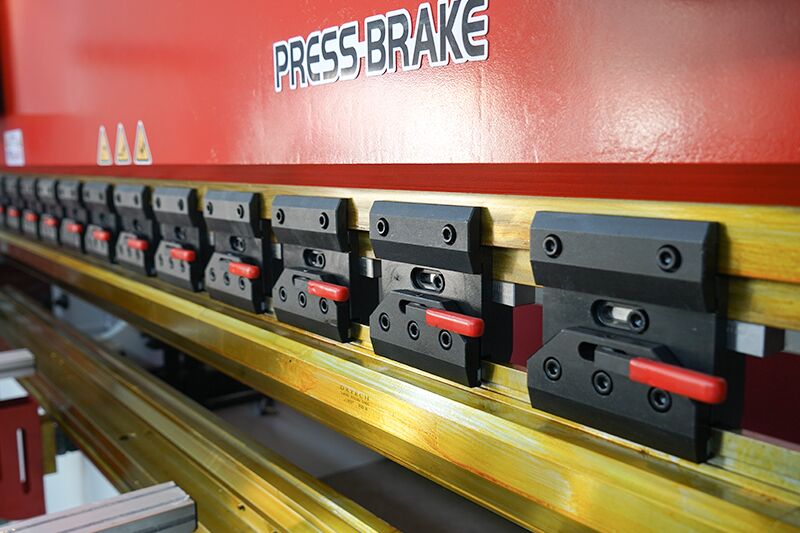

● The rear stop can adopt a rear stop mechanism with multiple rear stop axes that has more complete functions according to customer requirements.
● The hydraulic system uses an integrated control system, which reduces pipeline installation, overcomes oil leakage, ensures the working stability of the machine tool, and has a scientific and beautiful appearance.
● The hydraulic deflection automatic compensation mechanism eliminates the impact of slider deformation on the workpiece quality. The numerical control system automatically adjusts the compensation amount, which is convenient and accurate to operate.
Application of hydraulic bending machine
Main technical parameters
Model | 60T/2000mm | 200T/3200mm | 300T/3200mm |

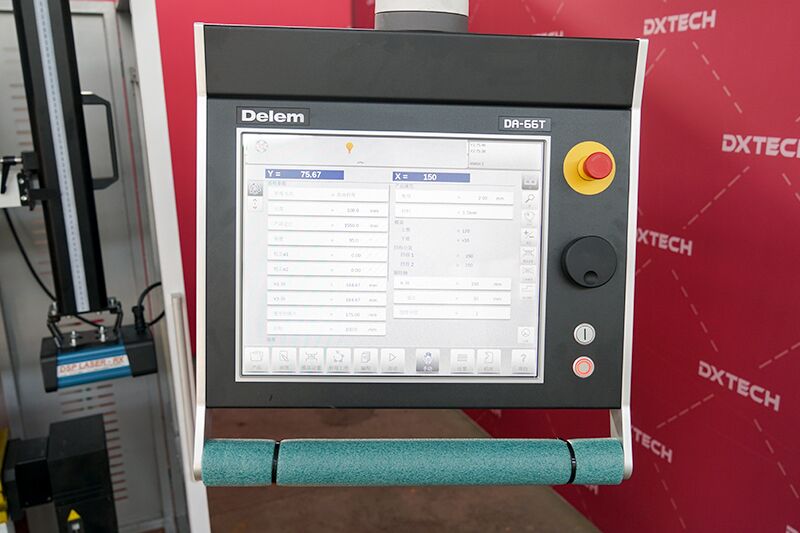

CNC System | Delem DA-66T | Delem DA-66T | Delem DA-66T |
Nominal Force | 600kN | 2000kN | 3000kN |
Number Of Control Axes | 6+1(Y1、Y2、X、R、Z1、Z2+V) | 4+1(Y1、Y2、X、R +V) | 3+1(Y1、Y2、X+V) |
Table Length | 2000mm | 3200mm | 3200mm |
Distance Between Columns | 1600mm | 2600mm | 2600mm |
Throat Depth | 360mm | 400mm | 410mm |
Cylinder stroke | 200mm | 200mm | 250mm |
Opening Height | 460mm | 480mm | 520mm |
Main Motor Power | 5.5 KW | 15KW | 22KW |
Laser Machine Upgrade
DXTECH is committed to providing one-stop processing solutions for your metal processing factory. We not only provide a complete production line of fiber laser cutting machine + CNC press brake + handheld laser welding machine, but also provide a series of auxiliary equipment, such as Hydraulic shearing machine, Channel letter bender, Metal roll forming machine and Laser rust remover, etc.
- One-stop processing
- More efficient production
Choosing DXTECH means you no longer have to worry about finding manufacturers of various machines and equipment. Our comprehensive services will ensure that your production process is efficient and smooth.
DXTECH focuses on providing customized equipment upgrade solutions for your metal processing plant. If your factory is still using traditional equipment such as plasma cutting machines, hydraulic shearing machines or water jet cutting machines that have low processing efficiency and unsatisfactory cutting quality, then DXTECH will be your ideal choice.
- More efficient
- More precise
- More energy-saving
We can help you upgrade these equipment to more efficient, more precise, and more energy-saving fiber laser cutting machines, thereby greatly improving processing efficiency and cutting quality, and bringing a qualitative leap to your factory.
