Features

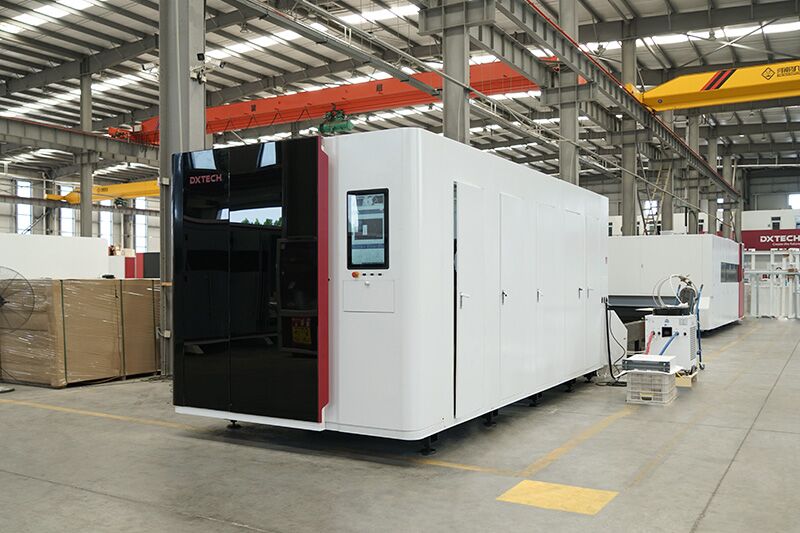

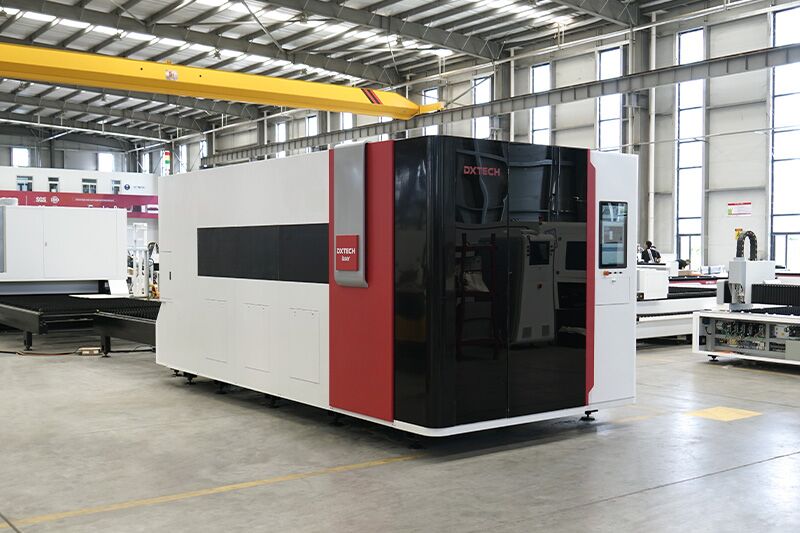

1. Fully enclosed structure
Eliminates the risk of sparks flying, improving operational safety by 100%; efficiently blocks smoke diffusion, improving workshop cleanliness by over 60%.
2. Automatic laser cutting inkjet system
Custom-developed dynamic label generation functionality supports rich text, barcodes, and other formats, with high-speed printing at 1500 mm/s and precise positioning.
3. 15-second exchange platform
Enables seamless loading and unloading, boosting single-shift processing efficiency by 40%.
4. Zone-based dust removal system
Improves cleanliness in the operating area by 80% and reduces equipment maintenance frequency by 30%.
5. Compliant with European CE standards
The closed type fiber laser cutting machine is produced to international high standards, with cutting precision stability improved by 40%, ensuring consistent quality in batch processing.
Components of Fiber Laser Cutting Machine

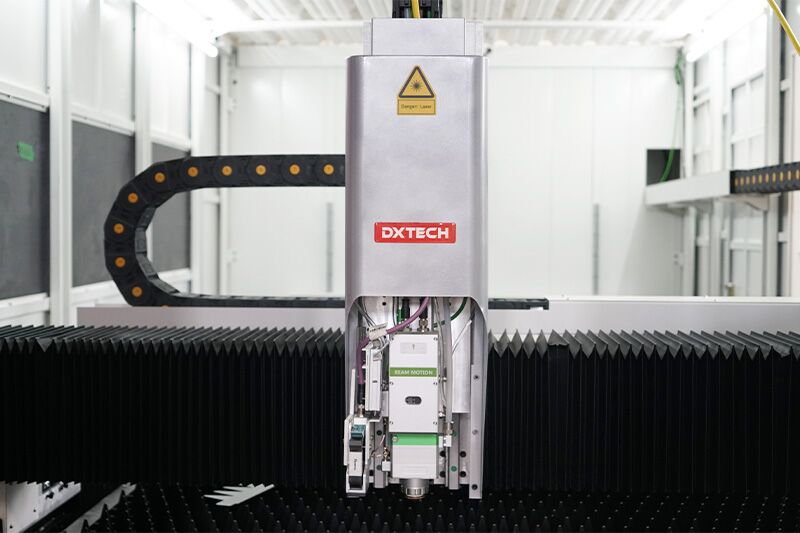

Intelligent focusing laser head
- Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
- Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
- Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.

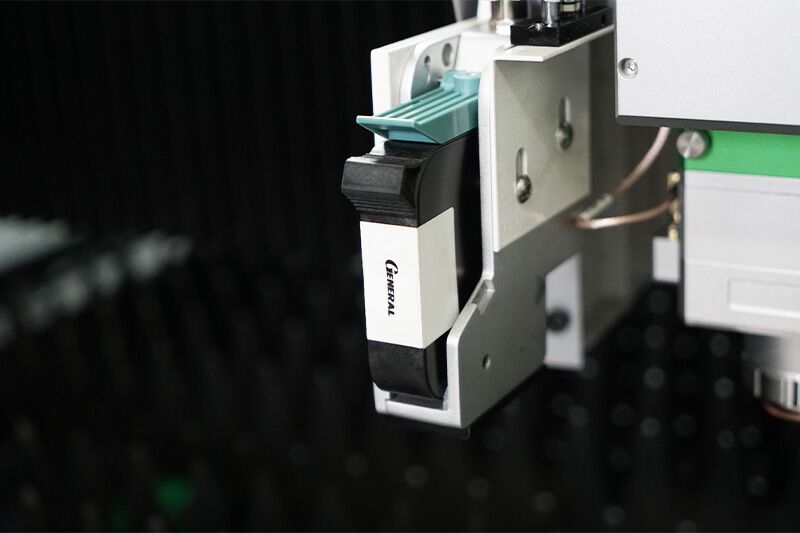

Fully automatic laser cutting and marking system
- Intelligent judgment of part label position. Supports marking of parts in any position.
- Supports rich text, barcodes, QR codes, and image label printing.
- Precise label positioning with accuracy up to 0.1 mm.
- High printing clarity with adjustable DPI up to 600.
Aviation aluminum beam
- The closed type fiber laser cutting machine has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
- It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Related Laser Machines
| Model | DXTECH-1530SL | DXTECH-1540SL | DXTECH-2040SL |
| Working area (mm) | 1500*3000mm | 1500*4000mm | 2000*4000mm |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Maximum speed | 100M/min | 100M/min | 100M/min |
| Max. acceleration | 1.2G | 1.2G | 1.2G |
| Laser power | 1kw – 3kw | 1kw – 3kw | 1kw – 3kw |
| Laser | Multiple options | Multiple options | Multiple options |
| X-axis motor power | 850W | 850W | 850W |
| Y-axis motor power | 1300W*2 | 1300W*2 | 1300W*2 |
| Z-axis motor power | 400W | 400W | 400W |
Closed Type Fiber Laser Cutting Machine Cutting Samples
The closed type fiber laser cutting machine is compatible with 3kW laser power and suitable for cutting and processing various metal materials, including carbon steel, stainless steel, brass, aluminum, and iron. Equipped with an automatic label inkjet printing system, it is widely used in the raw material processing and manufacturing of products such as file cabinets, security doors, cash registers, and metal curtain walls.The working size and laser power can be customized according to the customer needs.
DXTECH Quality Assurance
2 Years free warranty
- This warranty only covers normal use of the laser machine
- This warranty does not cover any third party software or virus related issues not purchased from DXTECH
- We continue to provide lifetime free technical support to original customers. However, the warranty is not transferable.
Complete After-sales Service
- Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
- We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Customer feedback
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
