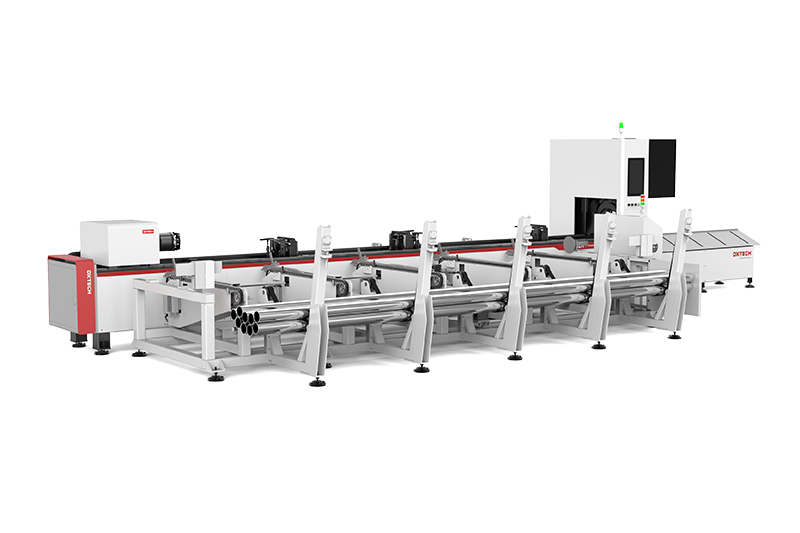

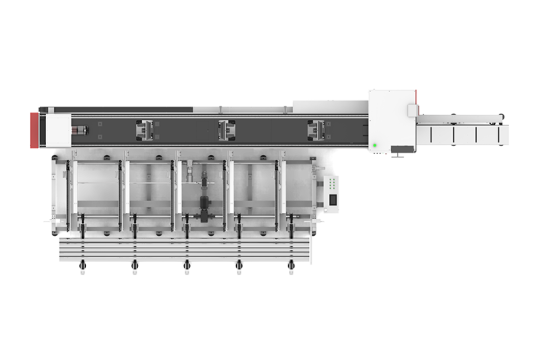

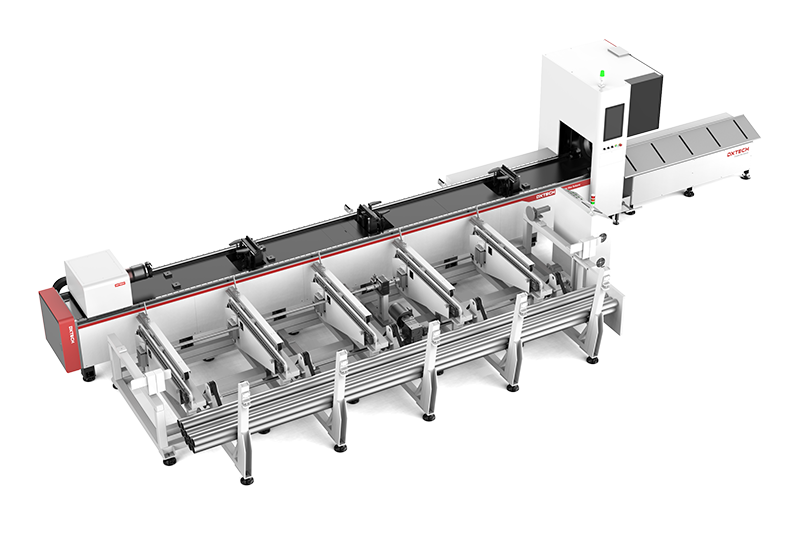

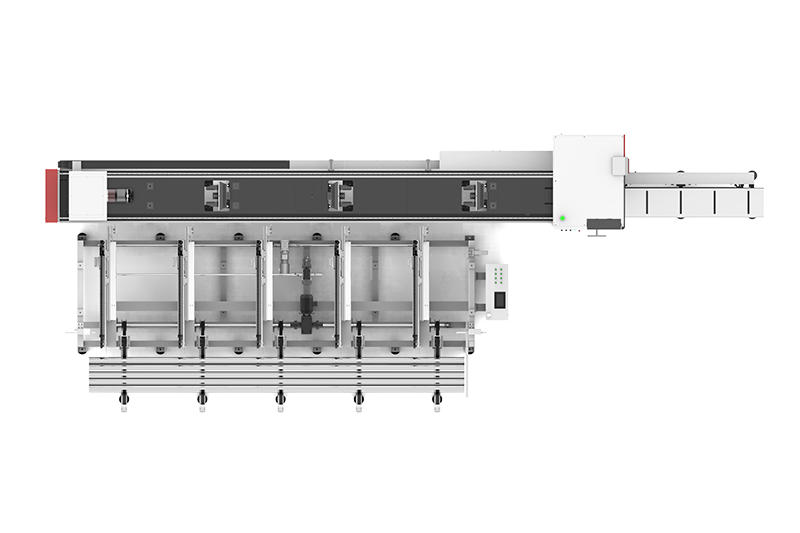

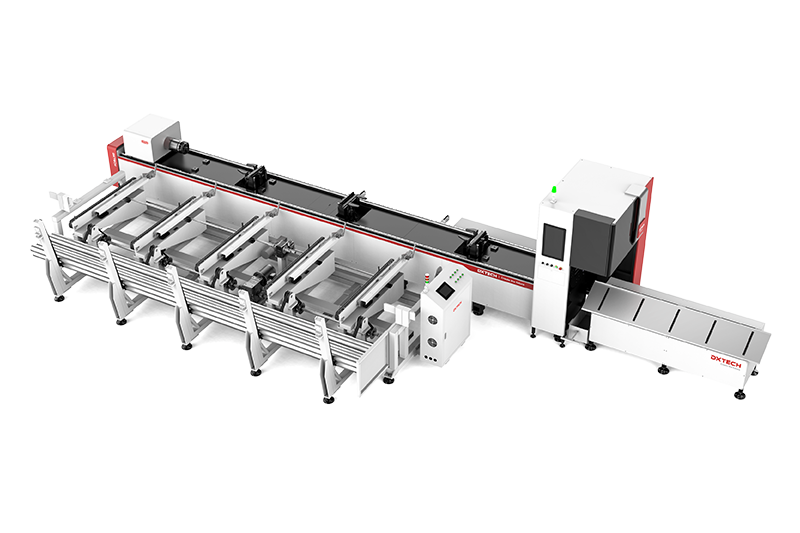

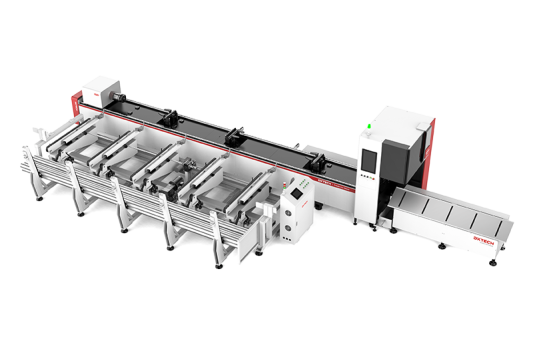

CNC Tube Laser Cutter Model
| Model | DXTECH-TK6220/TK9220 | DXTECH-TK62406220/TK9240 | DXTECH-TK6300/TK9300 | DXTECH-TK6360/TK9360 |
| Max. tube length | 6.5/9.2m | 6.5/9.2m | 6.5/9.2m | 6.5/9.2m |
| Tube shape | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular |
| Max. tube weight | 300kg 16kg/m | 350kg 55kg/m | 600kg 30kg/m | 1000kg 83kg/m |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Chuck | Two pneumatic chucks | Two pneumatic chucks | Two pneumatic chucks | Two pneumatic chucks |
| Max. chuck rotating speed | 130r/min | 130r/min | 130r/min | 130r/min |
| Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
| Laser | Multiple options | Multiple options | Multiple options | Multiple options |
| Clamping range | Φ20-Φ220mm □20 – □150mm |
Φ20-Φ240mm □20 – □170mm |
Φ10-Φ300mm □20 – □210mm |
Φ20-Φ360mm □20 – □250mm |
Laser Cutting Machine Metal Pipe Advantages
🔻 1. Horizontal Structure: Ensuring Stability and Precision
Horizontal structure enables stable operation, which is crucial for maintaining high precision during the working process. It provides a solid foundation, reducing vibrations and ensuring accurate results.
🔻 2. Automatic Loading and Unloading System: Facilitating Mass Production
Equipped with an automatic loading and unloading system, it greatly improves production efficiency. This system is designed for mass production, allowing continuous operation without much manual intervention, thus saving time and labor costs.
🔻 3. Double Pneumatic Chucks: For Easy and Stable Clamping
The double pneumatic chucks offer easy and stable clamping. They can firmly hold the workpiece, ensuring that it remains in place during processing. This not only simplifies the clamping process but also guarantees the stability of the workpiece, contributing to better processing quality.
🔻 4. Water – Cooling Heat Dissipation: Low – Heat Emission Indoors
With effective heat dissipation achieved by water cooling, it can realize low heat emission indoors. This is beneficial for indoor working environments, as it helps to maintain a comfortable temperature and reduces the need for additional ventilation or cooling equipment.
DXTECH Service
Business in person. Currently, we have a workshop covering an area of 45,000㎡ in Jinan, and we are constructing a new factory with an area of 30,000㎡ in Taian, Shandong Province.
From the moment you receive your laser machine, our sales team and factory technicians will handle all your after-sales issues together.
We offer free online training and technical support. Additionally, we can visit your location to assist with installation, debugging, training, and usage matters.
Components of Square Tube Laser Cutting Machine

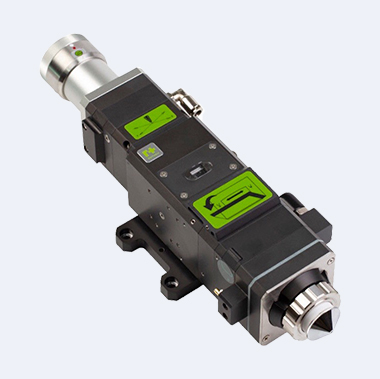

Intelligent focusing laser head
- The laser head comes with a fully sealed interior. This design acts as a safeguard, keeping dust away from the optical components and ensuring their long – term performance.
- For alignment and focusing, it employs a two – point alignment adjustment along with a focus collimator adjustment. An imported motor powers the laser head, providing reliable and smooth operation.
TubePro tube cutting software
The control system, tailor – made for pipe processing, enables high – precision and high – efficiency cutting of square, round, slender, and oval pipes, along with angles and channels.
Feedback from Customers All Over The World
Laser Tube Cutting Samples
We offer a free proofing service. Feel free to reach out for more information.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
Laser Machine Upgrade
DXTECH is committed to providing one-stop processing solutions for your metal processing factory. We not only provide a complete production line of fiber laser cutting machine + CNC press brake + handheld laser welding machine, but also provide a series of auxiliary equipment, such as Hydraulic shearing machine, Channel letter bender, Metal roll forming machine and Laser rust remover, etc.
- One-stop processing
- More efficient production
Choosing DXTECH means you no longer have to worry about finding manufacturers of various machines and equipment. Our comprehensive services will ensure that your production process is efficient and smooth.
DXTECH focuses on providing customized equipment upgrade solutions for your metal processing plant. If your factory is still using traditional equipment such as plasma cutting machines, hydraulic shearing machines or water jet cutting machines that have low processing efficiency and unsatisfactory cutting quality, then DXTECH will be your ideal choice.
- More efficient
- More precise
- More energy-saving
We can help you upgrade these equipment to more efficient, more precise, and more energy-saving fiber laser cutting machines, thereby greatly improving processing efficiency and cutting quality, and bringing a qualitative leap to your factory.
