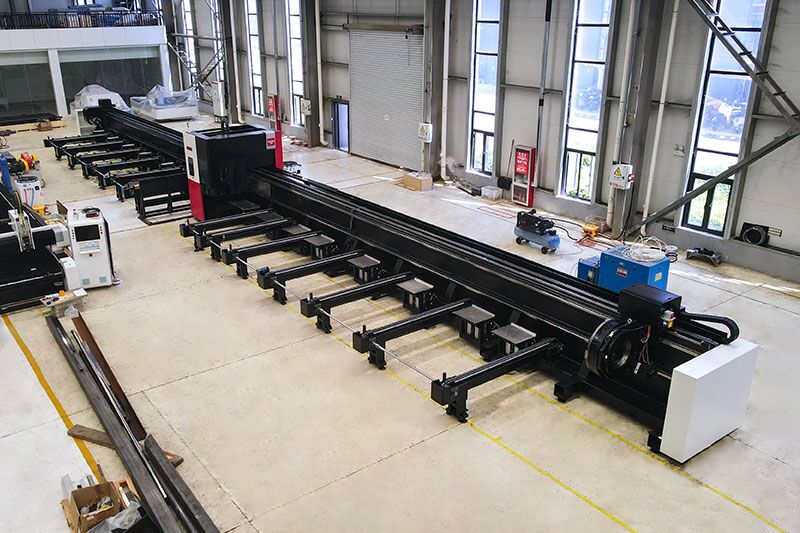

The fiber laser metal tube cutting machine is suitable for cutting and drilling heavy-duty and super-large pipes. It can process metal round pipes, square pipes, angle steel, channel steel, etc., made of materials such as carbon steel, aluminum alloy, stainless steel, and titanium. It is widely used in fields including metal furniture, fitness equipment, sports gear, display racks, agricultural machinery, bridge support rail frames, steel structures, fire protection, metal shelves, automobiles, and pipe processing.
Fiber Laser Metal Tube Cutting Machine Specifications
| Processing material type | Round tubes, square tubes, elliptical tubes, I-beams, H-beams, angle irons, channel irons, etc. |
| Processing material | Carbon steel, stainless steel, aluminum alloy |
| Processing round tube diameter range | φ20-φ360mm |
| Processing square tube side length range | □20-□360mm |
| Maximum feed length of pipe material | 6000-12000mm（Optional 15m） |
| Maximum cutting length of pipe material | 0-12000mm（Optional 15m） |
| Maximum single pipe weight | 1200Kg（100kg/m） |
| Laser power range | 6000W-20000W |
| Laser cutting thickness | Carbon steel 3mm-30mm; stainless steel 3mm-30mm |
Fiber Laser Metal Tube Cutting Machine Advantages
1. Wider Pipe Processing Range
Handles pipes up to 350mm (0.1377 inches) in diameter, easily cutting round, square, rectangular, elliptical, steel, I-beams, and special-shaped pipes.
2. Enhanced Load-Bearing Performance
Supports single pipes weighing up to 1.2 tons, boosting heavy-duty pipe processing capabilities.

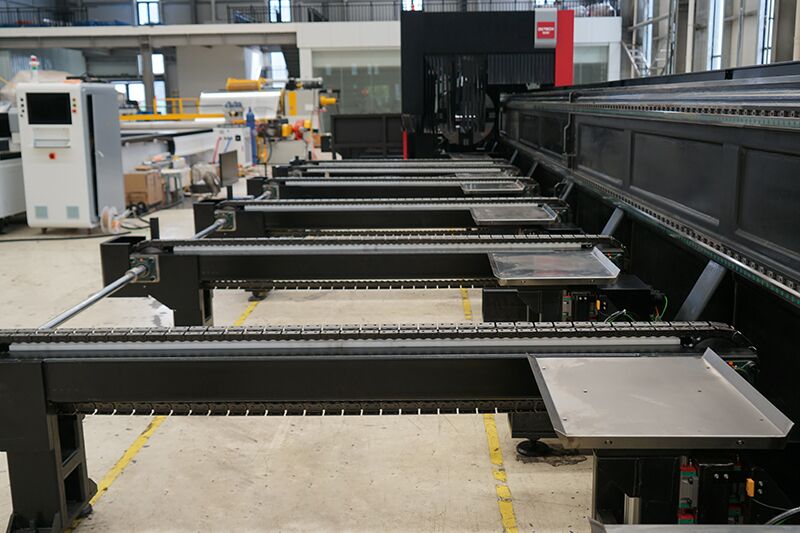

3. Fully Automated Handling
Equipped with a 4.5-ton chain-type loader/unloader, enabling automatic loading, cutting, and unloading of heavy pipes—saving labor and improving efficiency.

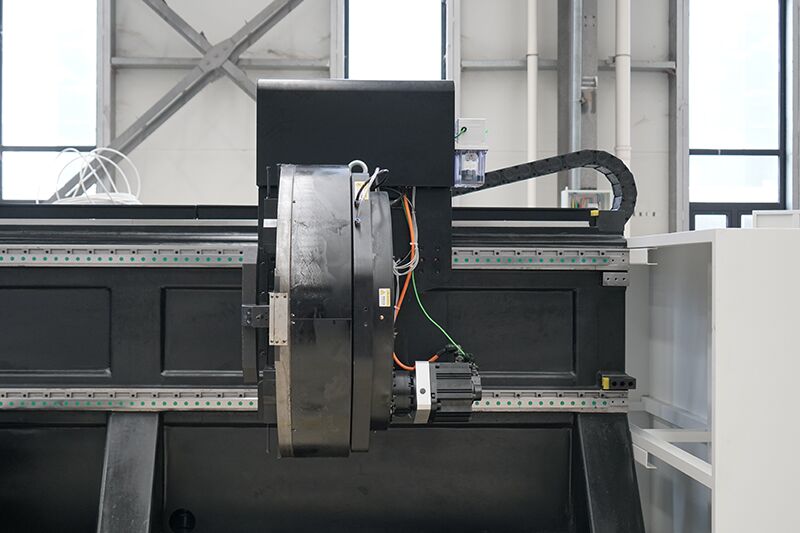

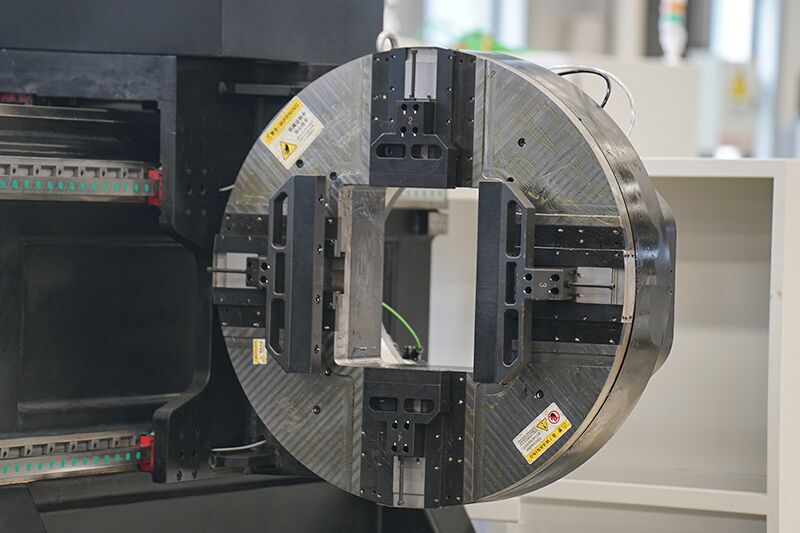

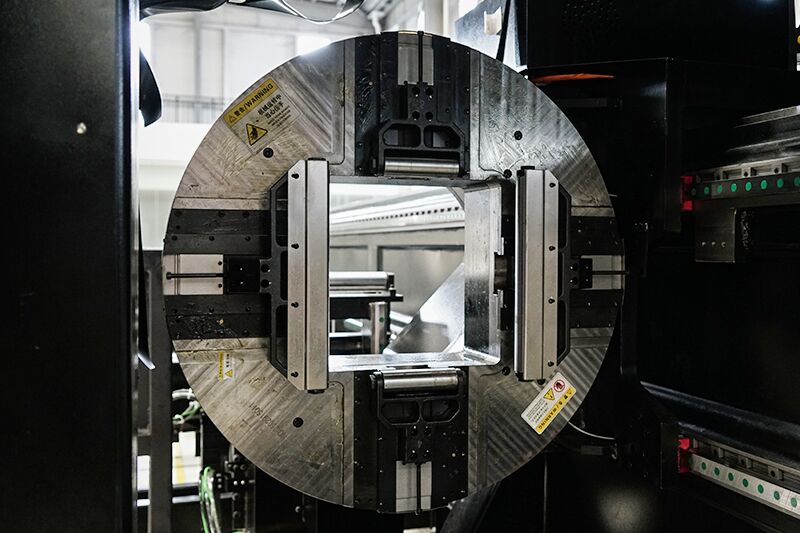

4. Heavy-Duty Pneumatic “3+1” Chuck
Stable and reliable, with quick, intuitive clamping force adjustment. The third chuck uses dual-sided clamping, capable of holding, pulling, or supporting pipes.
DXTECH Service
Business in person. Currently, we have a workshop covering an area of 45,000㎡ in Jinan, and we are constructing a new factory with an area of 30,000㎡ in Taian, Shandong Province.
From the moment you receive your laser machine, our sales team and factory technicians will handle all your after-sales issues together.
We offer free online training and technical support. Additionally, we can visit your location to assist with installation, debugging, training, and usage matters.
▍ Our Laser Machine Factory
Components of Fiber Laser Metal Tube Cutting Machine

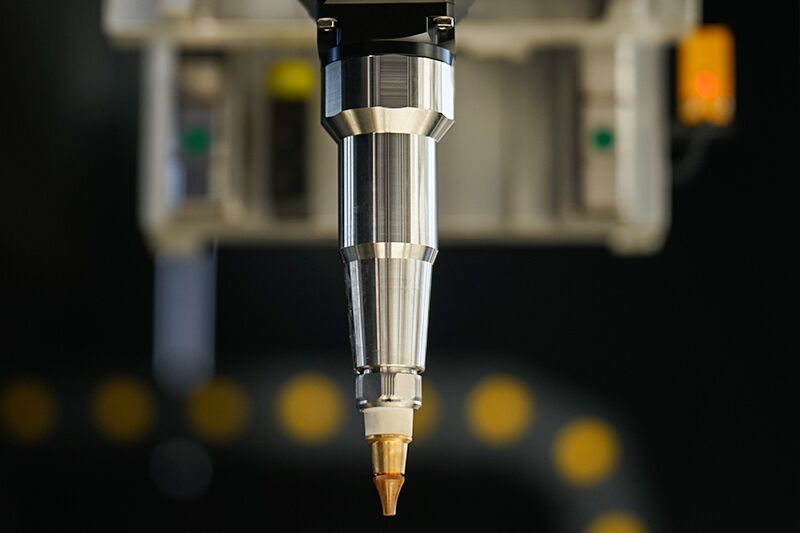

Intelligent focusing laser head
1. Stray Light Minimization with Special Aperture :
A 35 – mm aperture effectively reduces stray – light interference.
2. High – Speed and Precise Autofocus Feature
Autofocus reaches 10m/min without manual input, with ±50 – micron repeatability.
TubePro tube cutting software
- This is a professional tube cutting system that ensures cutting accuracy by automatically centering and compensating for eccentricity in metal pipes.
- Common edge cutting helps minimize residual material, effectively reducing production costs.
- The corner cutting process ensures that corners are not burnt, maintaining high-quality sections.
Feedback from Customers All Over The World
We offer a free proofing service. Feel free to reach out for more information.
Laser Machine Upgrade
DXTECH is committed to providing one-stop processing solutions for your metal processing factory. We not only provide a complete production line of fiber laser cutting machine + CNC press brake + handheld laser welding machine, but also provide a series of auxiliary equipment, such as Hydraulic shearing machine, Channel letter bender, Metal roll forming machine and Laser rust remover, etc.
- One-stop processing
- More efficient production
Choosing DXTECH means you no longer have to worry about finding manufacturers of various machines and equipment. Our comprehensive services will ensure that your production process is efficient and smooth.
DXTECH focuses on providing customized equipment upgrade solutions for your metal processing plant. If your factory is still using traditional equipment such as plasma cutting machines, hydraulic shearing machines or water jet cutting machines that have low processing efficiency and unsatisfactory cutting quality, then DXTECH will be your ideal choice.
- More efficient
- More precise
- More energy-saving
We can help you upgrade these equipment to more efficient, more precise, and more energy-saving fiber laser cutting machines, thereby greatly improving processing efficiency and cutting quality, and bringing a qualitative leap to your factory.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
