Laser cutting machines are suitable for cutting square, round, and non-standard profile tubes made of stainless steel, carbon steel, low-carbon steel, galvanized steel, iron, copper, brass, and aluminum. They find extensive use in metal fabrication, kitchenware, lighting, automotive, medical equipment, hardware, fitness equipment, and bed frame furniture sectors.

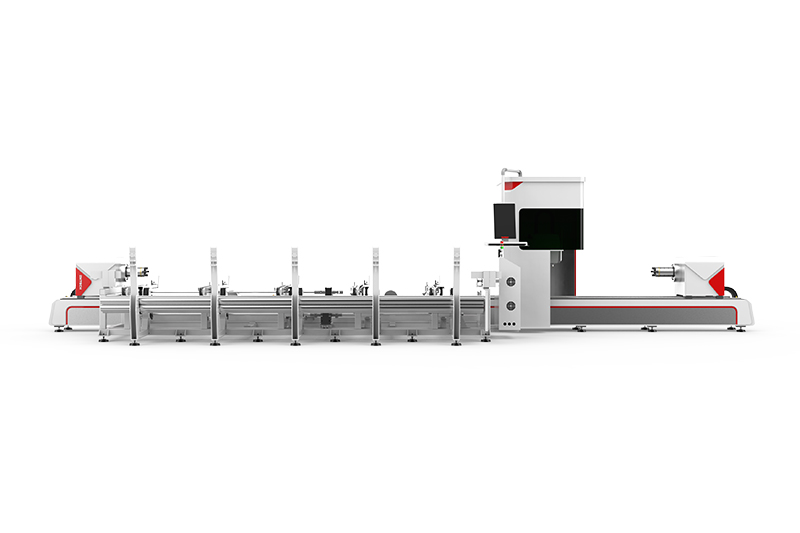

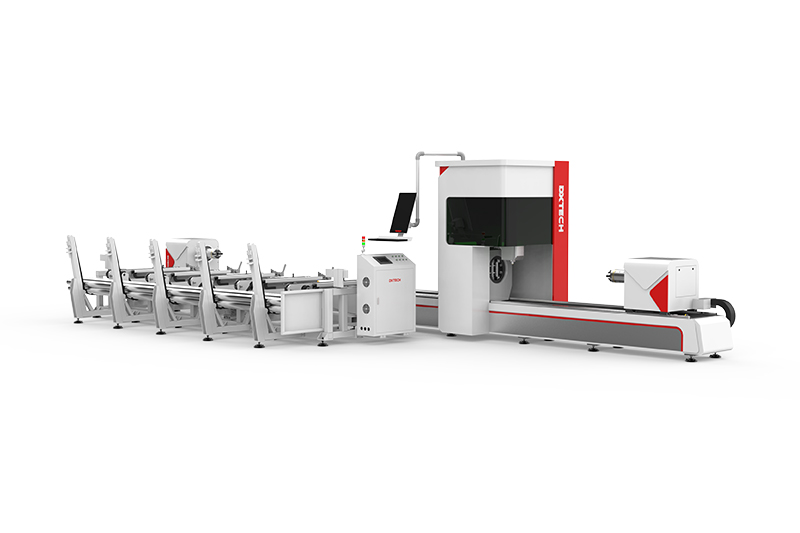

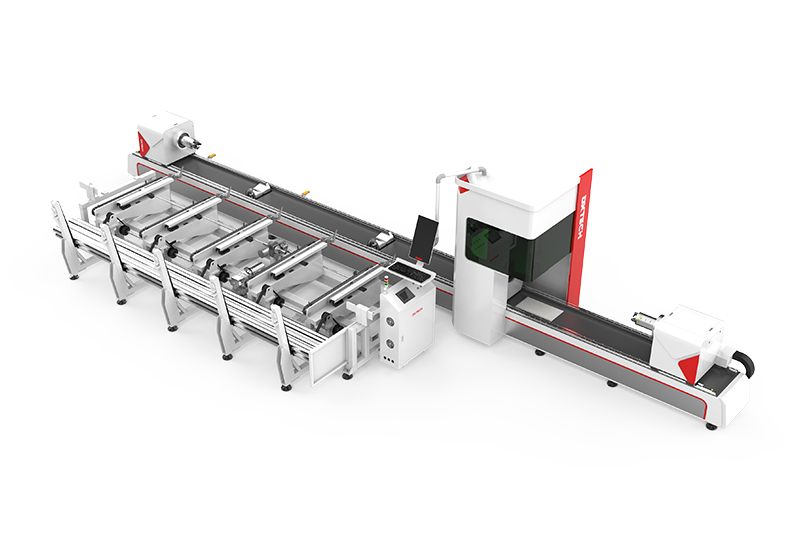

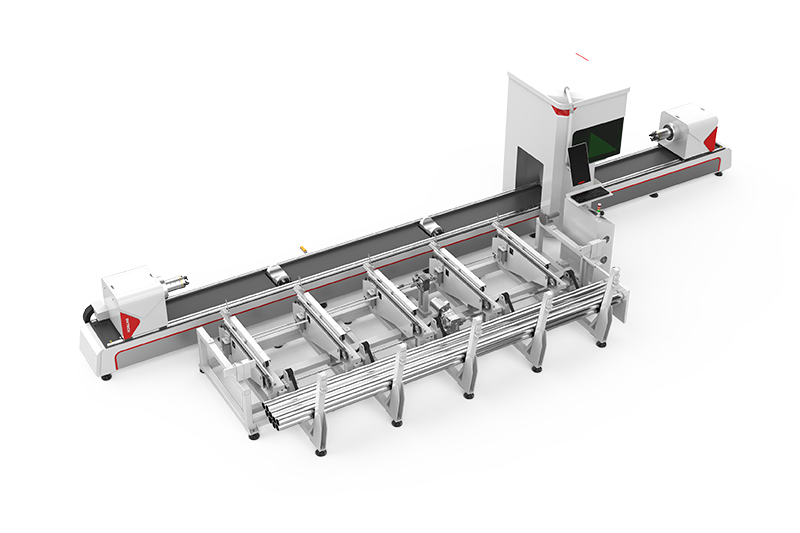

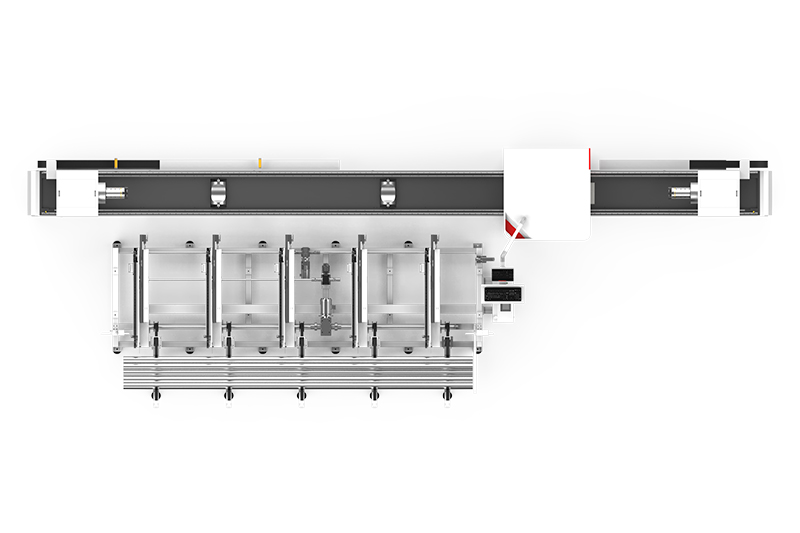

Bed Frame Laser Pipe Cutting Machine Specifications
| Model | TM6220/TM9220 | TM62406220/TM9240 | TM6300/TM9300 | TM6360/TM9360 |
| Max. tube length | 6.5/9.2m | 6.5/9.2m | 6.5/9.2m | 6.5/9.2m |
| Tube shape | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular |
| Max. tube weight | 100kg 16kg/m | 200kg 30kg/m | 200kg 30kg/m | 500kg 83kg/m |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Chuck | Three pneumatic chucks | Three pneumatic chucks | Three pneumatic chucks | Three pneumatic chucks |
| Max. chuck rotating speed | 130r/min | 130r/min | 130r/min | 130r/min |
| Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
| Laser | Multiple options | Multiple options | Multiple options | Multiple options |
| Clamping range | Φ20-Φ220mm □20 – □150mm |
Φ20-Φ240mm □20 – □150mm |
Φ20-Φ240mm □20 – □150mm |
Φ20-Φ360mm □20 – □150mm |
Bed Frame Laser Pipe Cutting Machine Video
Bed Frame Laser Pipe Cutting Machine Advantages

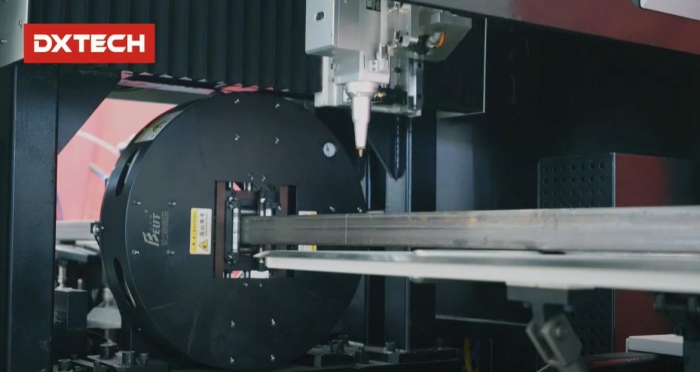

1. 3-Jaw Chuck with Adaptive Clamping
The 3-jaw chuck adjusts clamping force quickly based on wall thickness, ensuring stable cutting.
2. Intelligent Contour Recognition
This system auto-identifies pipe shapes for precision cutting.
3. Independent Follow-Up Support
It clamps long, thin pipes securely to maintain cutting accuracy.
4. Welded Bed with 30-Year Stability
The pipe welding bed resists vibration and prevents deformation for 30+ years.
DXTECH Service
Business in person. Currently, we have a workshop covering an area of 45,000㎡ in Jinan, and we are constructing a new factory with an area of 30,000㎡ in Taian, Shandong Province.
From the moment you receive your laser machine, our sales team and factory technicians will handle all your after-sales issues together.
We offer free online training and technical support. Additionally, we can visit your location to assist with installation, debugging, training, and usage matters.
Components of Bed Frame Laser Pipe Cutting Machine

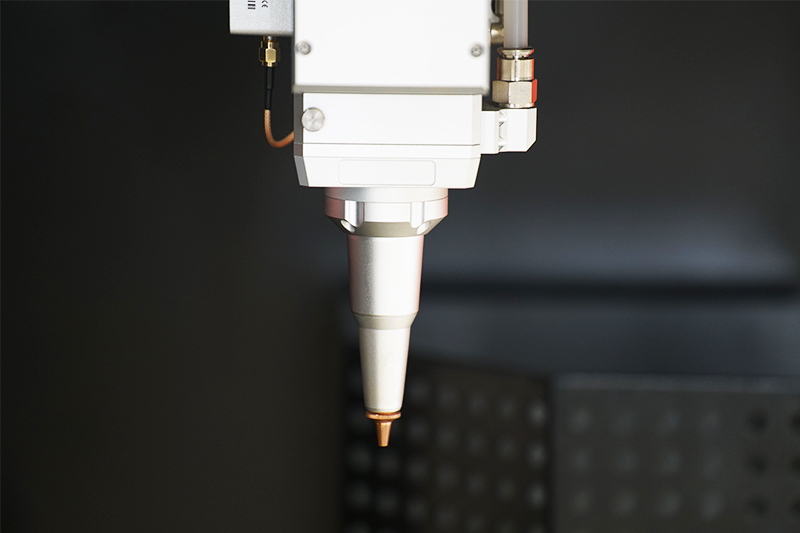

Intelligent focusing laser head
1. Stray Light Minimization with Special Aperture :
A 35 – mm aperture effectively reduces stray – light interference.
2. High – Speed and Precise Autofocus Feature
Autofocus reaches 10m/min without manual input, with ±50 – micron repeatability.

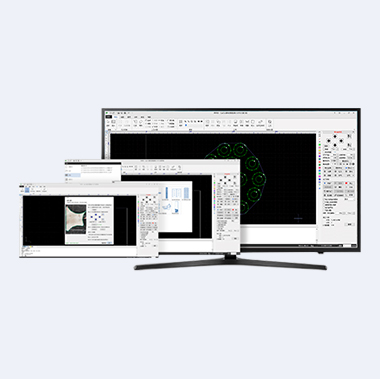

TubePro tube cutting software
- This is a professional tube cutting system that ensures cutting accuracy by automatically centering and compensating for eccentricity in metal pipes.
- Common edge cutting helps minimize residual material, effectively reducing production costs.
- The corner cutting process ensures that corners are not burnt, maintaining high-quality sections.
Feedback from Customers All Over The World
We offer a free proofing service. Feel free to reach out for more information.
Laser Machine Upgrade
DXTECH is committed to providing one-stop processing solutions for your metal processing factory. We not only provide a complete production line of fiber laser cutting machine + CNC press brake + handheld laser welding machine, but also provide a series of auxiliary equipment, such as Hydraulic shearing machine, Channel letter bender, Metal roll forming machine and Laser rust remover, etc.
- One-stop processing
- More efficient production
Choosing DXTECH means you no longer have to worry about finding manufacturers of various machines and equipment. Our comprehensive services will ensure that your production process is efficient and smooth.
DXTECH focuses on providing customized equipment upgrade solutions for your metal processing plant. If your factory is still using traditional equipment such as plasma cutting machines, hydraulic shearing machines or water jet cutting machines that have low processing efficiency and unsatisfactory cutting quality, then DXTECH will be your ideal choice.
- More efficient
- More precise
- More energy-saving
We can help you upgrade these equipment to more efficient, more precise, and more energy-saving fiber laser cutting machines, thereby greatly improving processing efficiency and cutting quality, and bringing a qualitative leap to your factory.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
