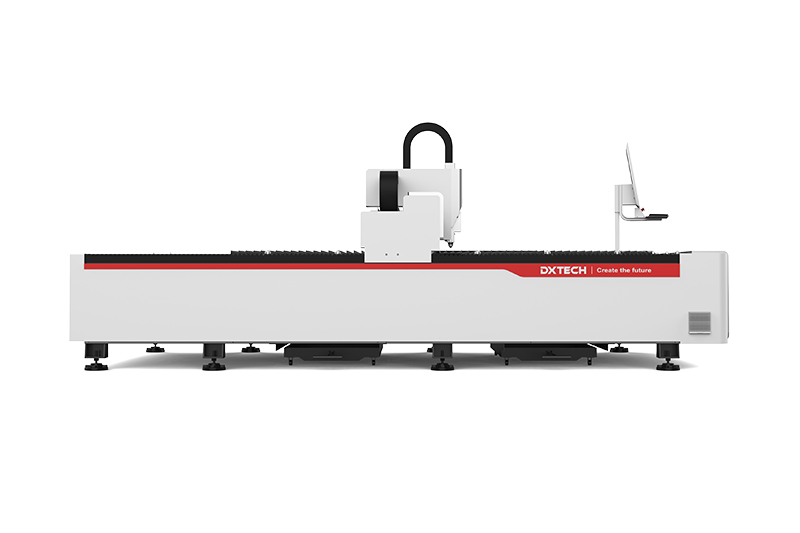

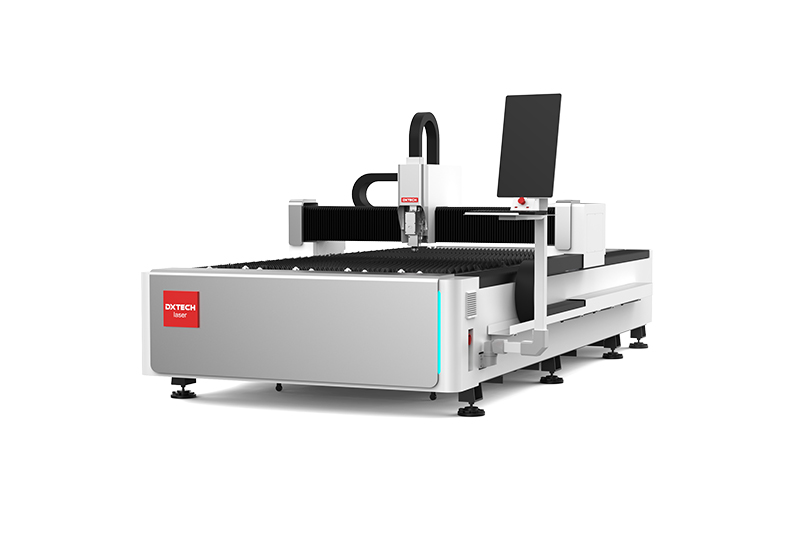

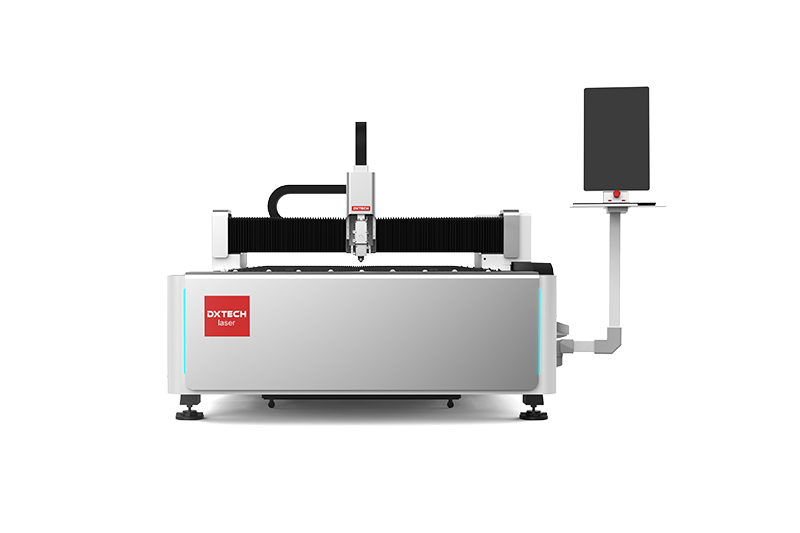

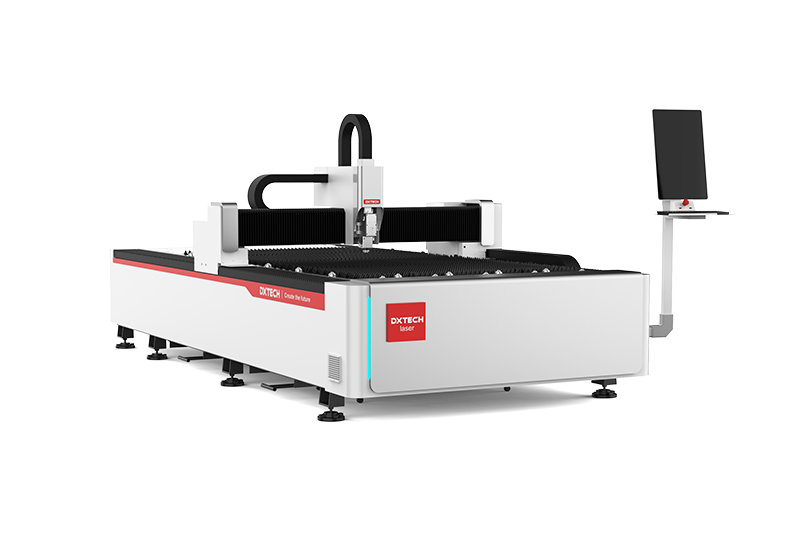

FL- 3kw laser cutting machine is a commonly used economical fiber laser cutting machine for metal mainly suitable for the advertising industry. The control cabinet of the machine is placed inside the machine, which saves space and is suitable for many small and medium-sized enterprises.
Video
Advantages
1. High-rigidity Welding Machine Bed: The 3kw laser cutting machine bed is processed with a stress relief annealing method, which ensures its strong strength, and is not easy to deform. The max load of platform is 1000KG, stable and reliable in a variety of working scenarios.
2. Optimized Exhausting System: The new generation introduces German technology and the air outlet is designed to be large in front while small in the back, which ensures consistent ventilation effects and significantly improves the performance of the ventilation system.
3. Assembled Delivery: Well-designed and can be put directly into the container without disassembling any parts. Upon being powered on, it runs immediately. This design significantly shortens the customer’s installation and debugging time and greatly facilitates the customer’s use experience.
4. All-round Smart Automatic Lubrication: Compared to the cutters equipped with 8 point lubrication system. It improves the service life of the equipment by up to 20%.
5. Material Collecting Trolley: The DXTECH trolley has an innovative design and adopts German corrugated technology, improving load-bearing and deformation resistance and significantly extending service life.
Features
FL- 3kw laser cutting machine has many advantages, such as high processing quality, low procurement cost, simple maintenance, convenient utilization, and a wide range of applications. Therefore, this economical fiber laser cutting machine is increasingly popular both at home and abroad. This type of laser cutting machine can process most metal materials, such as stainless steel, carbon steel, galvanized sheet. It finds wide applications in sheet metal processing, lighting, kitchenware, decorative materials, cabinets, and other industries.
Machine Parameters
| Model | DX-1530FL（1-3KW） | DX-1530FL（6KW） |
| Machine size | 4616*2231*1950 | 4616*2231*1950 |
| Total weight of equipment | 1.6T | 2T |
| Processing area | 1550×3050 | 1550×3050 |
| Table load | 1000kg | 1000kg |
| Maximum linear speed | 60m/min | 100m/min |
| Maximum linkage speed | 85m/min | 140m/min |
| Maximum linear acceleration | 0.8G | 1G |
| Maximum linkage acceleration | 1.1G | 1.4G |
| Positioning accuracy | ±0.03 | ±0.03 |
| Repeat positioning accuracy | ±0.02 | ±0.02 |
| Focusing method | Auto | Auto |
DXTECH Service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Components of Fiber Laser Cutting machine

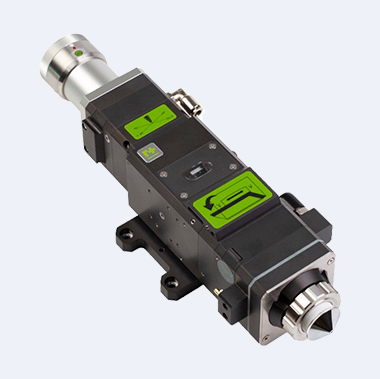

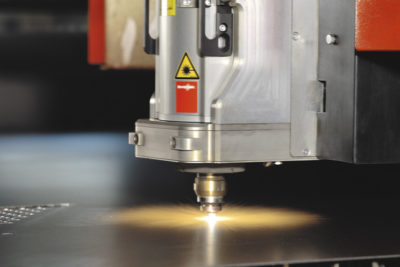

Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.

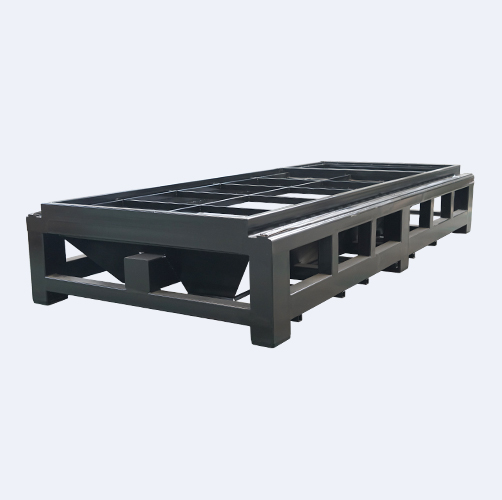

Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.

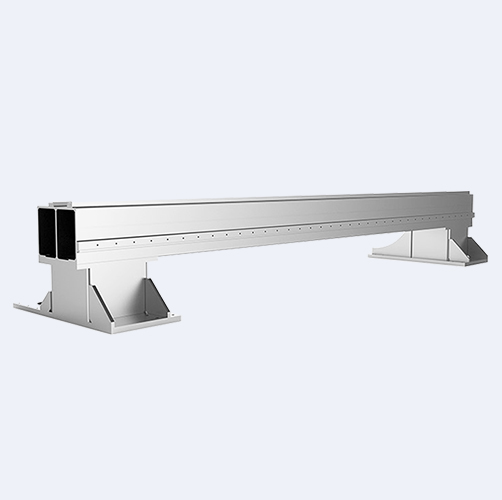

Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.

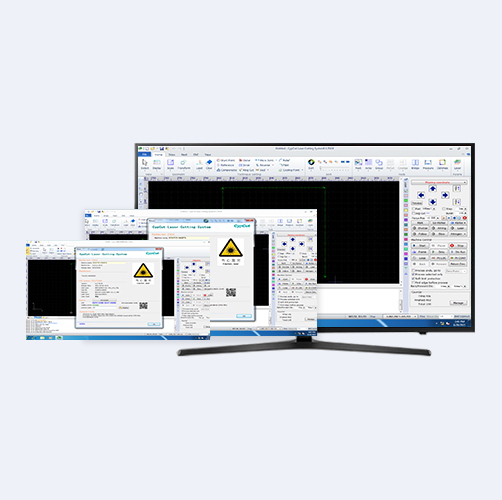

Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
The Past Work
We provide free proofing service. Welcome to consult.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.

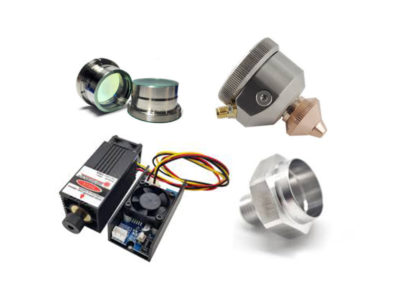

Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
