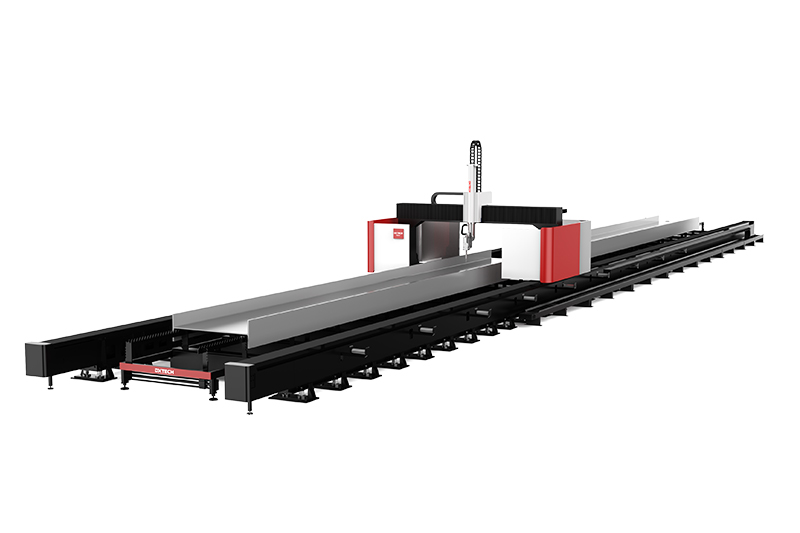

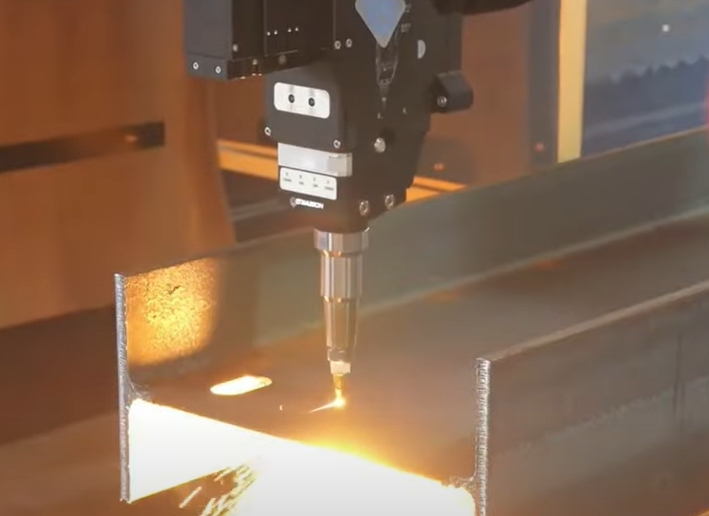

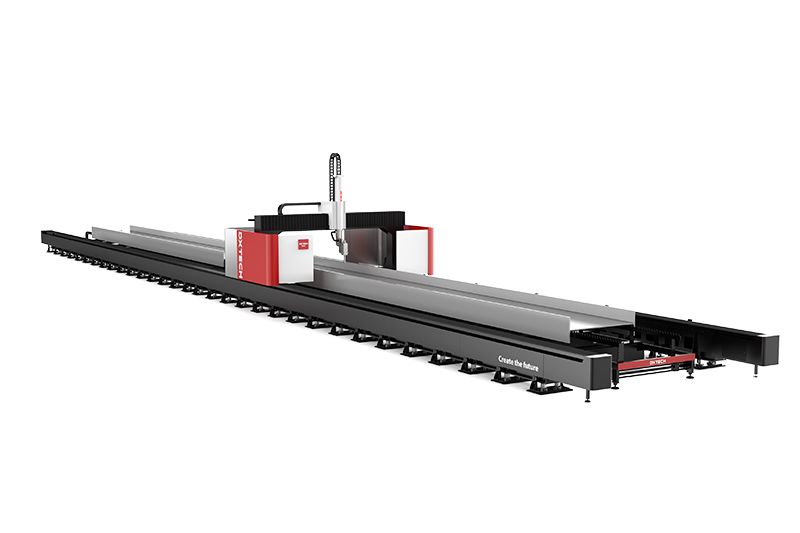

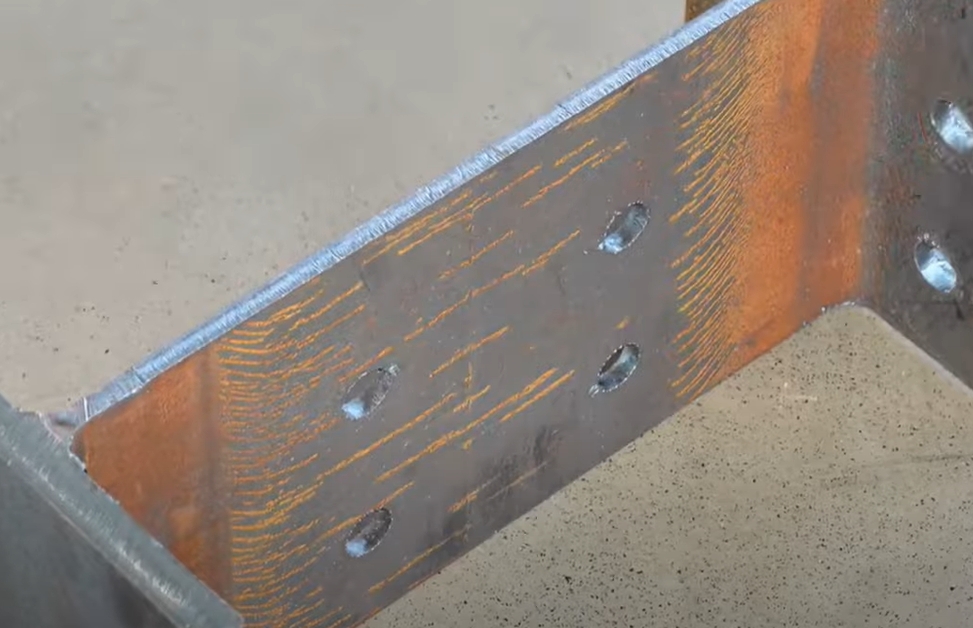

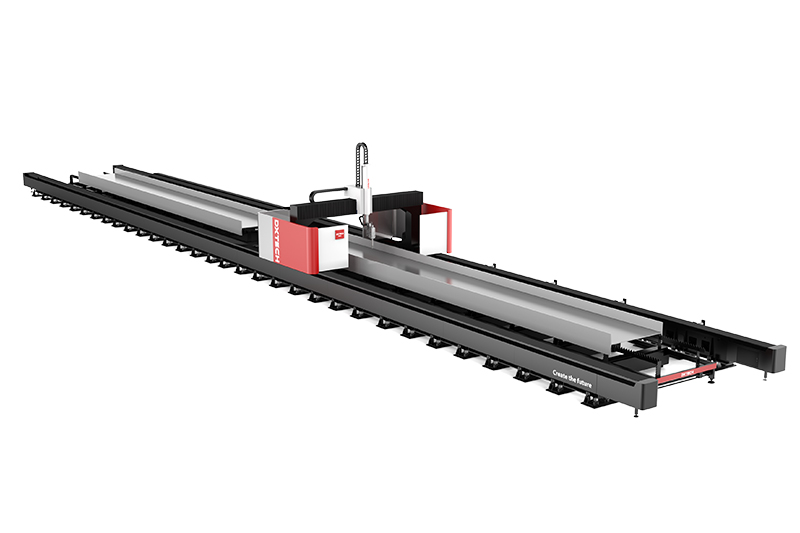

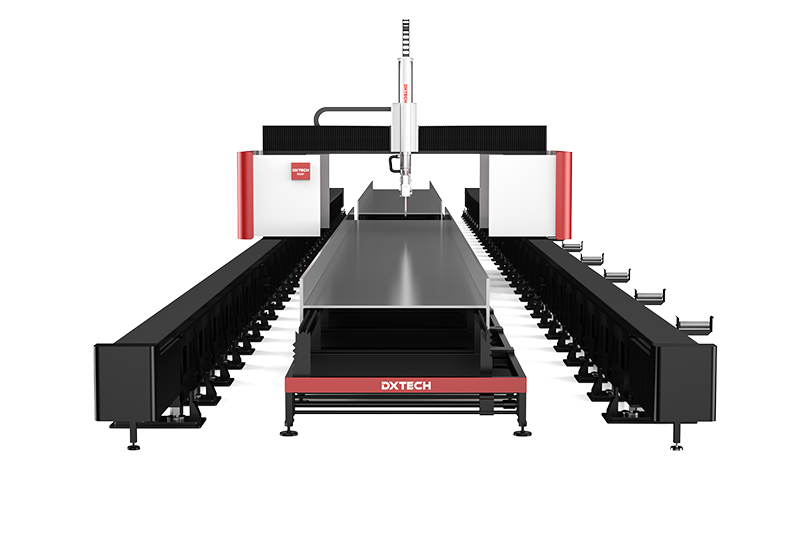

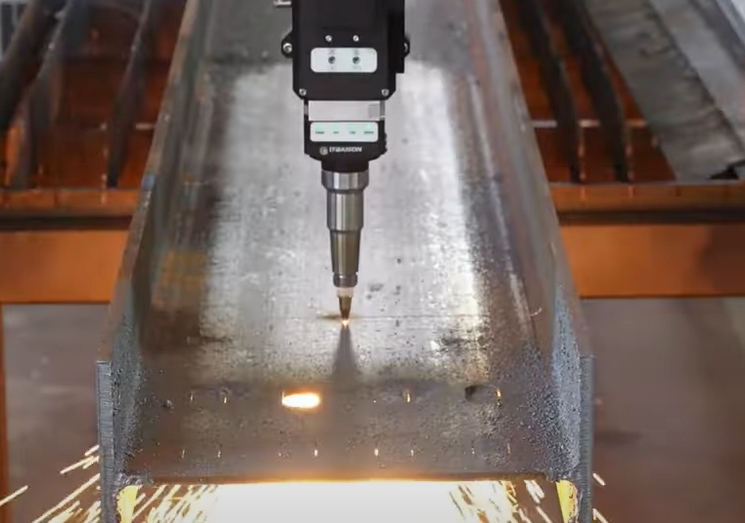

High Power 12kw H Steel Pipe Laser Cutting Machine Factories Pipe Laser Machine Cutting for Sale in Saudi Arabia/SA can handle medium and large steel sections, enabling full-length nesting cutting. It allows for easy switching among multiple specifications and varieties, and can perform cutting on head parts and other shaped components as well as flat plate straight bevel cutting. Equipped with the tw2.1-0001 intelligent five-axis cutting head specially designed for H-type steel pipe cutting, its gantry structure is capable of cutting bevels, wedge locks and bolt holes in the webs and flanges of H-beams, channels and I-beams. The open structure features a two-station design that saves loading and unloading time and supports contour inspection to prevent dimensional errors. Moreover, the 3D 5-axis laser cutting machine adopts a high-precision floating-axis design, which offers fast response times and boosts the machining efficiency to 15 times that of manual operations.
High Power 12kw H Steel Pipe Laser Cutting Machine Factories Pipe Laser Machine Cutting for Sale in Saudi Arabia/SA Video
High Power 12kw H Steel Pipe Laser Cutting Machine Factories Pipe Laser Machine Cutting for Sale in Saudi Arabia/SA Advantages
- Comprehensive Safety: The laser cutting zone has several safety precautions to block laser radiation efficiently, safeguarding operators.
- Flexible Angles: It supports 90° bevel cuts on both sides and 45° ones on the front and back of profiles. Customization is available for varied processing demands.
- Stable Platform: The 3D 5-axis machine’s cutting platform is detached from the tool. This distributes the workpiece weight, enhancing load-bearing and impact resistance, and it’s replaceable with ease.

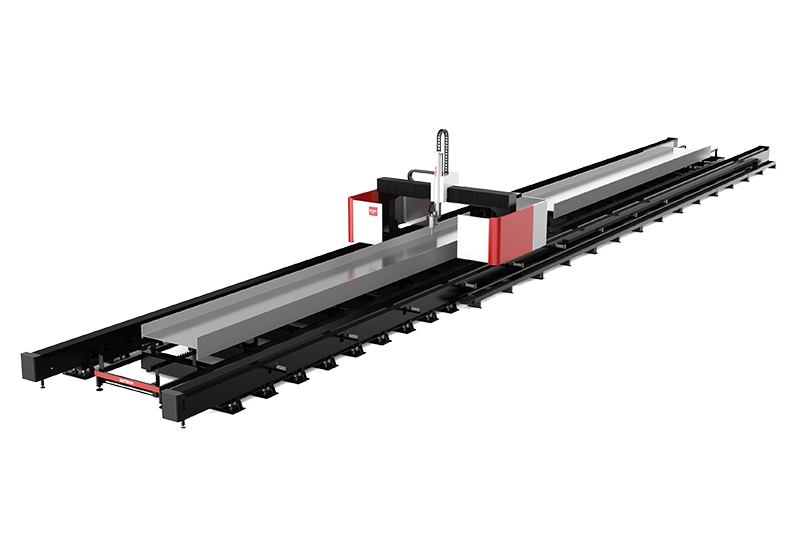

- Efficient Dual Stations: The open dual-station design for H-beams enables simultaneous processing and loading/unloading, cutting downtime and boosting productivity.
- Top-notch Core Parts: Equipped with first-line Lenny brand electrical components and servo drives for stable, responsive equipment operation.
Open Type Large Laser Cutting Machine High Power 12000w 10000w Laser Cutting Machine for Sheet Metal Laser Cutting Technical Parameters
Model | DXTECH X3500 |
Laser | 12kW MAX |
Laser head | tw2.1-0001 laser head for H beam |
X, Y, Z travel | 3500*16000*900mm |
Max. acceleration | 0.4G |
Positioning accuracy | ±0.25mm |
Repositioning accuracy | ±0.05mm |
Cutting ability | H-beam Min. height (wing plate): 200mm H-beam Max. height (wing plate) : 800mm H-beam processing length: 12000mm 2D cutting: 2500*12000mm |
Control system | WSD-E10 5 axis control system for steel profiles |
Voltage | 380V 3PH 50HZ |
DXTECH Service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
The Past Work
We provide free proofing service. Welcome to consult.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
